Fluke 1663 UK Multifunction Installation Tester – Advanced Electrical Tester with RCD & Loop Testing

PRODUCT OVERVIEW

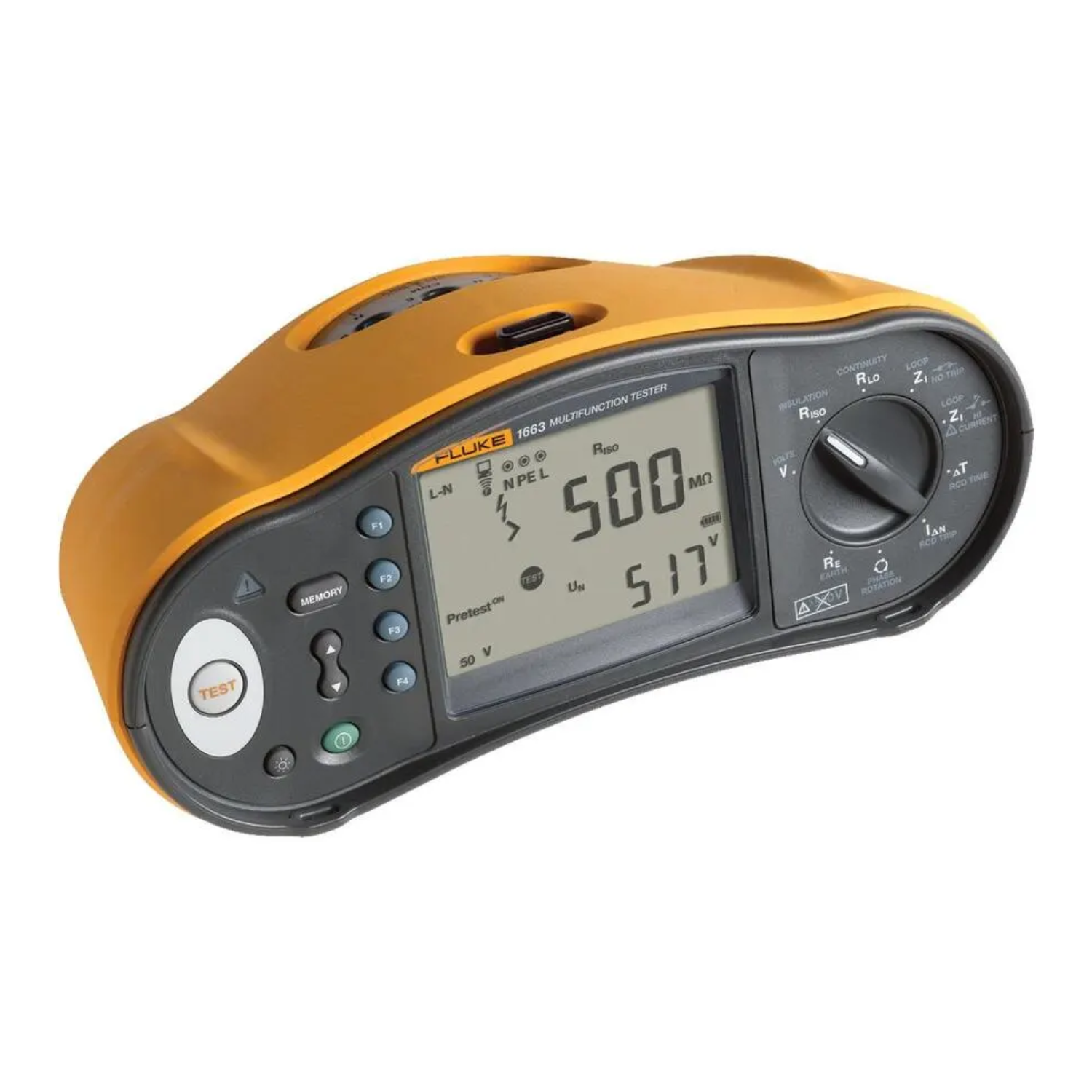

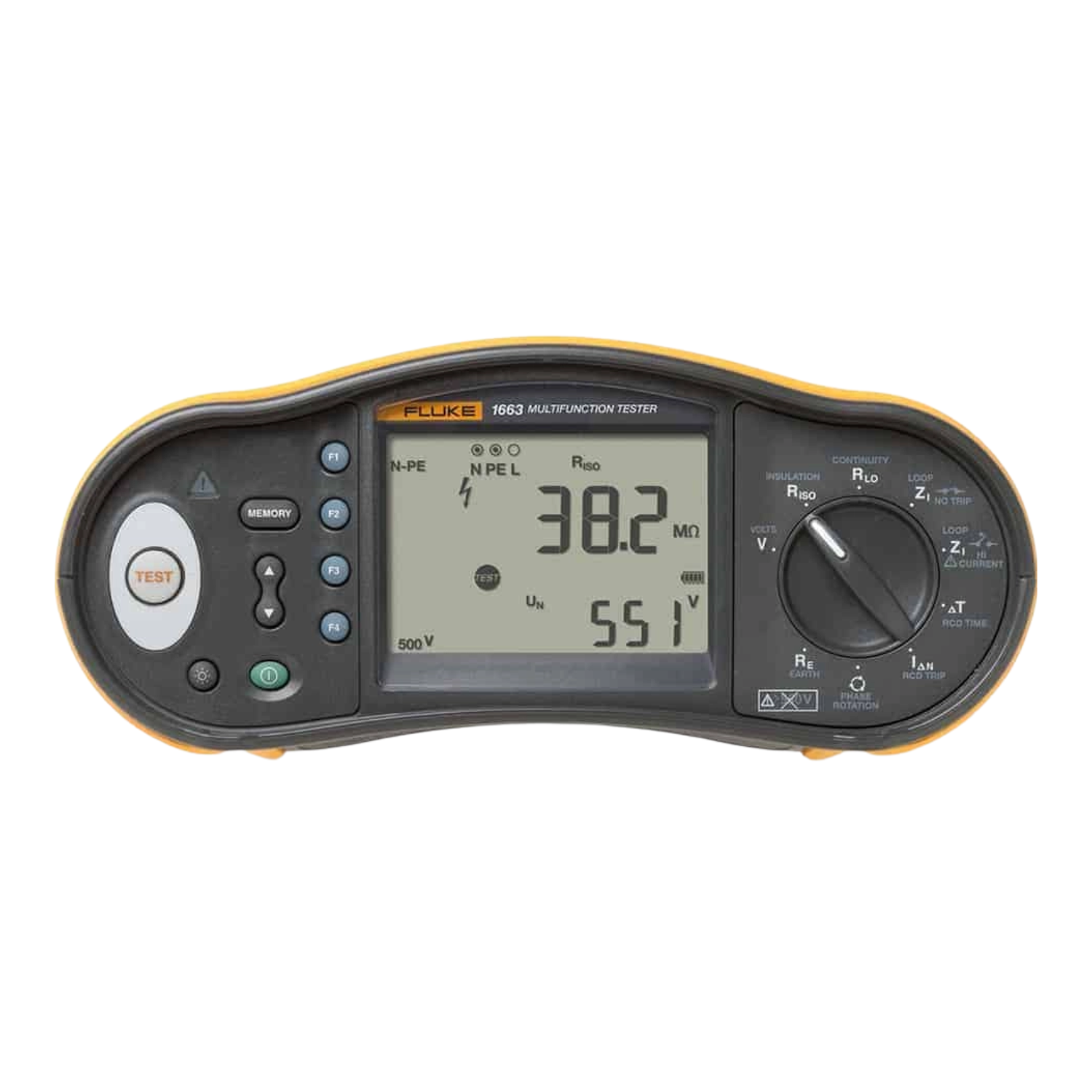

Fluke 1663 Installation Multifunction Tester

Fluke 1663 Multifunction Installation Tester is the ideal choice for hardworking professionals

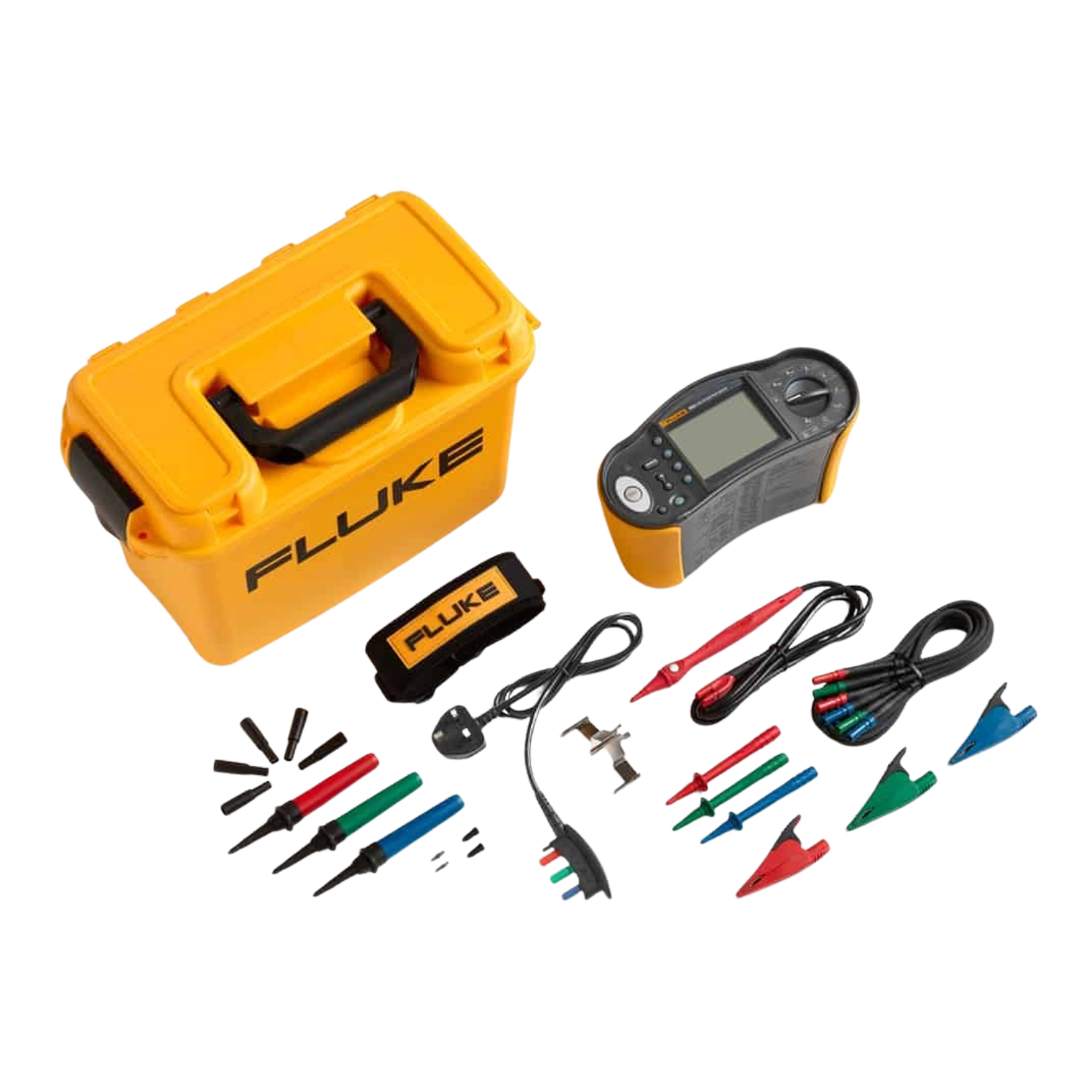

The 1663 installation tester delivers the full-featured functionality and advanced measurement capabilities that professional installers need. It is compact and lightweight (less than 1.3 kg) and comes with a padded carrying and waist strap for convenient handling. The operation is intuitive and easily mastered by all levels of workers, so you can put it to work immediately for quick and efficient testing of all local regulations. Additional features like an On/Off switchable auto-start for RCD and loop tests, as well as a self-test, save time and give you more confidence in your results.

Test EV Charging Station RCD Type A-EV or RDC-DD DC Protection Devices

Perform tests on EV charging station DC protection devices using the RCD type B (smooth DC currents) VAR mode, which generates the test currents for RCD type A-EV or RDC-DD according to IEC 62955 (6/60/200 mA and ramp <2 to 6 mA). This allows the quick and easy testing of additional 6 mA DC monitors on charging points and can be used in conjunction with the Fluke FEV100 or FEV300.

Software Compatible

The Fluke 1663 is compatible with TruTest™, a Fluke software designed to eliminate the hassle associated with traditional electrical system data management and reporting. Whether you are testing fixed wire installations or appliances in an office, verifying repairs in a workshop, or performing annual inspections, proper data management is critical for producing easy-to-understand reports for clients. TruTest™ Software allows you to quickly and easily import measurement results directly from your test instruments, manage files transferred from instruments, or manually enter data as needed.

Other Useful Capabilities:

• Checks wiring polarity to detect broken N wires
• Measures insulation resistance and loop and line resistance
• Includes Z-max memory for loop tests to support easy evaluation of the highest loop test value
• Provides unique zero adapter for fast, reliable and accurate test lead and mains cord compensation
• Measures motor windings with continuity test
• Calculates prospective earth fault current (PEFC/IK) and prospective short-circuit current (PSC/IK)
• Measures RCD switching time and tripping level (ramp test)
• Measures trip time and current for RCD type A & AC in one test
• Measures RCD variable current
• Provides automatic RCD test sequence
• Includes a phase sequence indicator
• Safety rated CAT III 500V, CAT IV 300V
