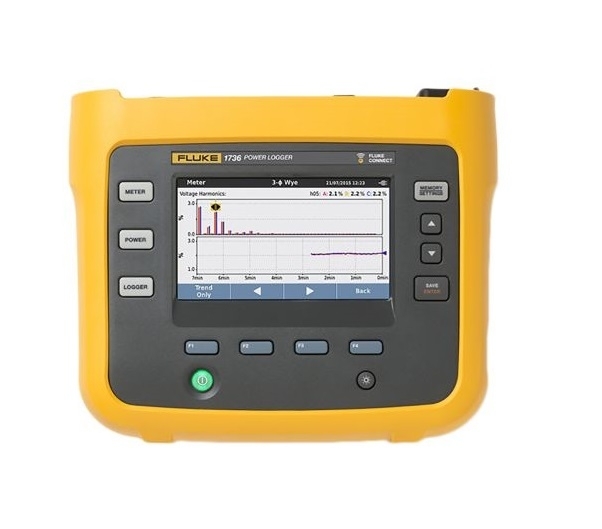

Fluke 1736 Three Phase Power Logger (International)

The Fluke 1736 is built with Fluke Connect mobile App and desktop software compatibility to provide the data necessary to make critical power quality and energy decisions in real-time. This is widely regarded as the best test general purpose tool for conducting energy studies and basic power quality logging. The 1736 automatically captures and logs more than 500 power quality parameters, giving excellent visibility into the data needed to optimise system reliability and savings. It simplifies setup and reduces measurement uncertainty.

An optimised user interface, flexible current probes and intelligent measurement verification function digitally verify and correct common connection errors. Users can access and share data remotely with team members via the Fluke Connect App. This can be used to maintain safer working distances, help make critical decisions in real-time and reduce the need for protective equipment, site visits and check-ins. Users can also quickly chart and graph measurements to help identify issues and create detailed reports with the included Fluke Energy Analyze Plus software package.

Features and Benefits

• Automatically capture and log voltage, current, power, harmonics and associated power quality values

• Power instrument directly from the measured circuit

• 600 V CAT IV/1000 V CAT III rated for use at the service entrance and downstream

• Measure all three phases and neutral with 4 flexible current probes (included)

• Store more than 20 separate logging sessions on the instrument

• Automatic logging of measured values means never losing measurement trends

• Measured values can reviewed during logging sessions and before downloading for real-time analysis

• Capture dips, swells, and inrush currents with event waveform snapshot and high resolution RMS profile, plus date, timestamp and severity to help pinpoint potential root causes of power quality issues

• Colour LCD display 4.3 inch active matrix TFT, 480 pixels x 272 pixels, resistive touch panel

• Optimised user interface

• Complete 'in-the-field' setup through the front panel or Fluke Connect App

• Energy Analyze Plus application software

• Dimensions 198 x 167 x 55 mm (198 x 167 x 90 mm with power supply attached)

• Weight of instrument 1.1 kg

• Weight of power supply 400 g

• Kensington lock slot
