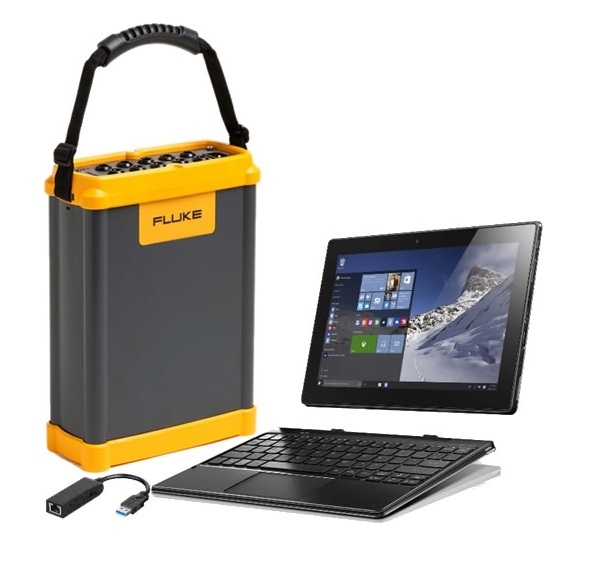

Fluke 1750/B/ET Three-Phase Power Quality Recorder (No Probes) with Windows 10 Ethernet Tablet
Uncover hard-to-find or intermittent issues; monitor critical equipment, capturing power quality events to correlate with equipment malfunction. Records power disturbances and continuously monitors power quality parameters, including voltage, current, power, harmonics, flicker, and more.
Easy-to-Use
The 1750 B ET Three-Phase Power Quality Recorder with Windows 10 Ethernet Tablet automatically detects, scales, and powers current probes without needing batteries or external power supplies. Requiring only single-lead voltage connections enables safe and quick setups. Once power is applied, the instrument automatically begins recording and LEDs, giving you assurance that the recorder is powered up and signals are within range. The 1750/B/ET has an exclusive capture algorithm which makes certain all events are captured without the tedious setups and blind spots associated with threshold driven equipment.
Comprehensive Power System Data
Every cycle on every channel of the 1750/B/ET is simultaneously sampled, providing complete analysis of power quality, harmonics, power and energy. Crosschannel current and voltage triggering captures event data on all input channels simultaneously, no matter which channel triggered the event. When periodic analysis of the waveform is necessary, the Snapshot mode captures waveforms at user-defined intervals; even DC signals can be recorded.
View Data the Way You Want
The new Fluke Power Analyze software revolutionizes your ability to analyze data. No need to worry about thresholds - with Fluke Power Analyze, thresholds can be modified after the data is recorded. And the easy-to-use user interface will display voltage as a phase-to-phase or phase-to-neutral reading.
| Product Name | Fluke 1750/B/ET Three-Phase Power Quality Recorder (No Probes) with Windows 10 Ethernet Tablet |
|---|---|
| Weight | 0.45 Kg |
| Manufacturer | Fluke |
| Color | Orange |
