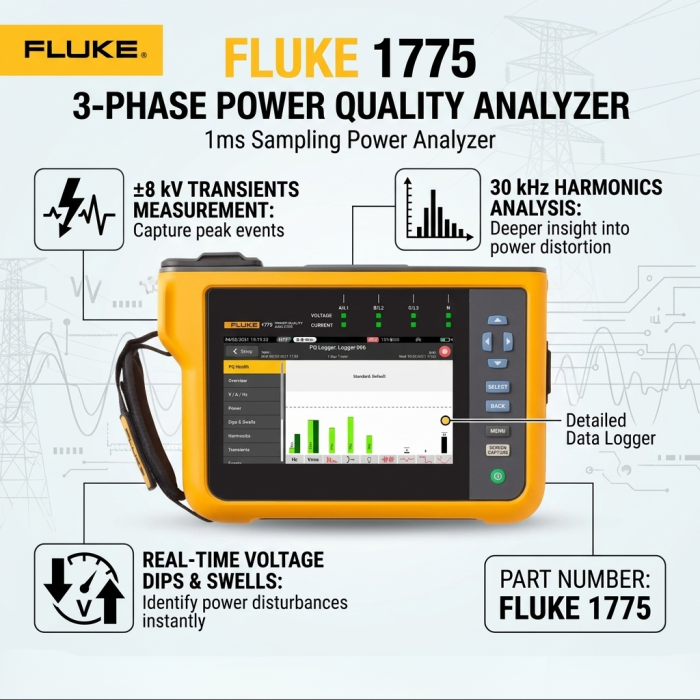

Fluke 1775 3-Phase Power Quality Analyzer 1ms Sampling Power Analyzer
Key Features
-
Measures power quality events including transients up to ±8 kV, harmonics up to 30 kHz, and voltage dips/swells in real time
-

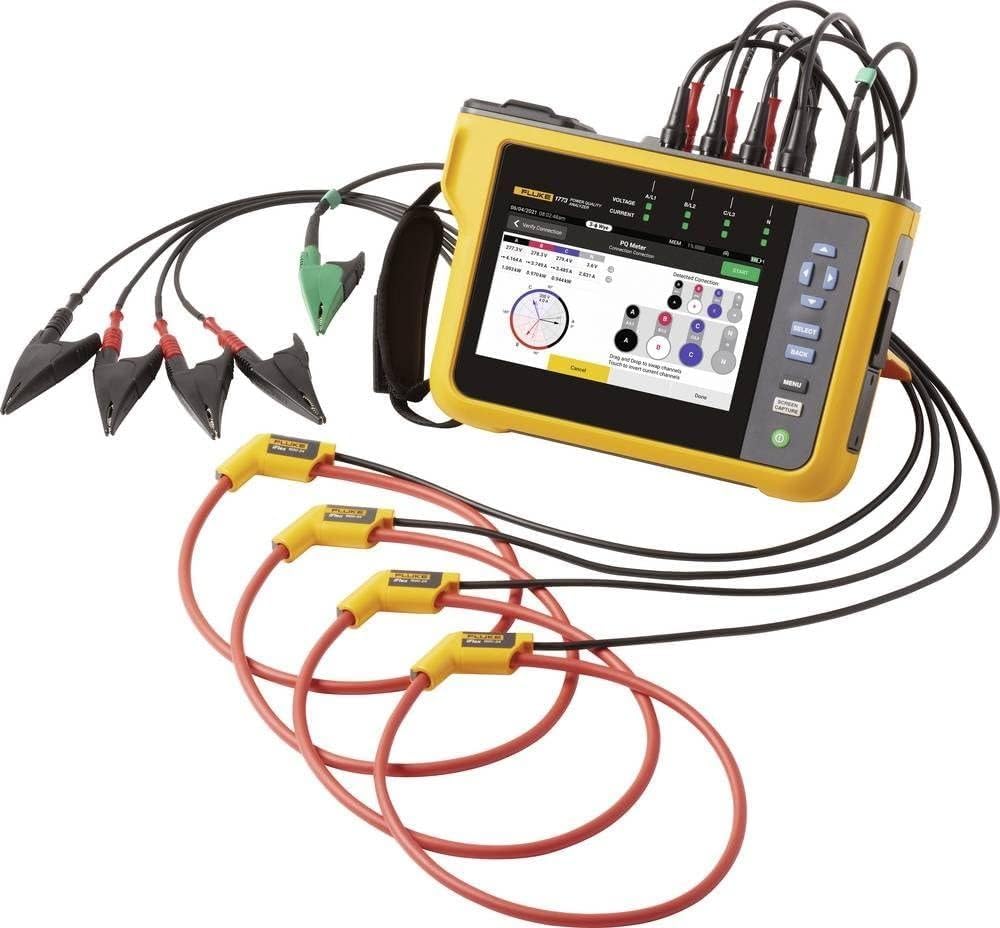

Automatic setup and auto-detection of wiring errors for faster, more reliable measurements
-
High-resolution touchscreen interface with intuitive navigation for all measurement parameters
-
Captures and logs 500+ power quality parameters with advanced event waveform recording and analysis
-
Built-in reporting and compliance analysis using Fluke Energy Analyze Plus software (EN 50160, IEEE 519 standards)
Product Overview
The Fluke 1775 3-Phase Power Quality Analyzer is a high-performance instrument designed for advanced electrical power monitoring and analysis. It provides precise measurement of voltage, current, harmonics, and transient events in three-phase systems. Built for industrial and utility environments, it helps engineers quickly identify power quality issues. The device combines accuracy, speed, and ease of use in one rugged platform. It is ideal for troubleshooting complex electrical networks.
Advanced Measurement Capabilities
This analyzer delivers high-resolution data capture with fast sampling to ensure no critical event is missed. It measures key parameters such as dips, swells, harmonics, and transient disturbances. The system supports detailed waveform recording for deeper electrical analysis. Its capability to monitor multiple electrical variables simultaneously improves diagnostic efficiency. This makes it highly suitable for modern power systems.
User Interface and Operation

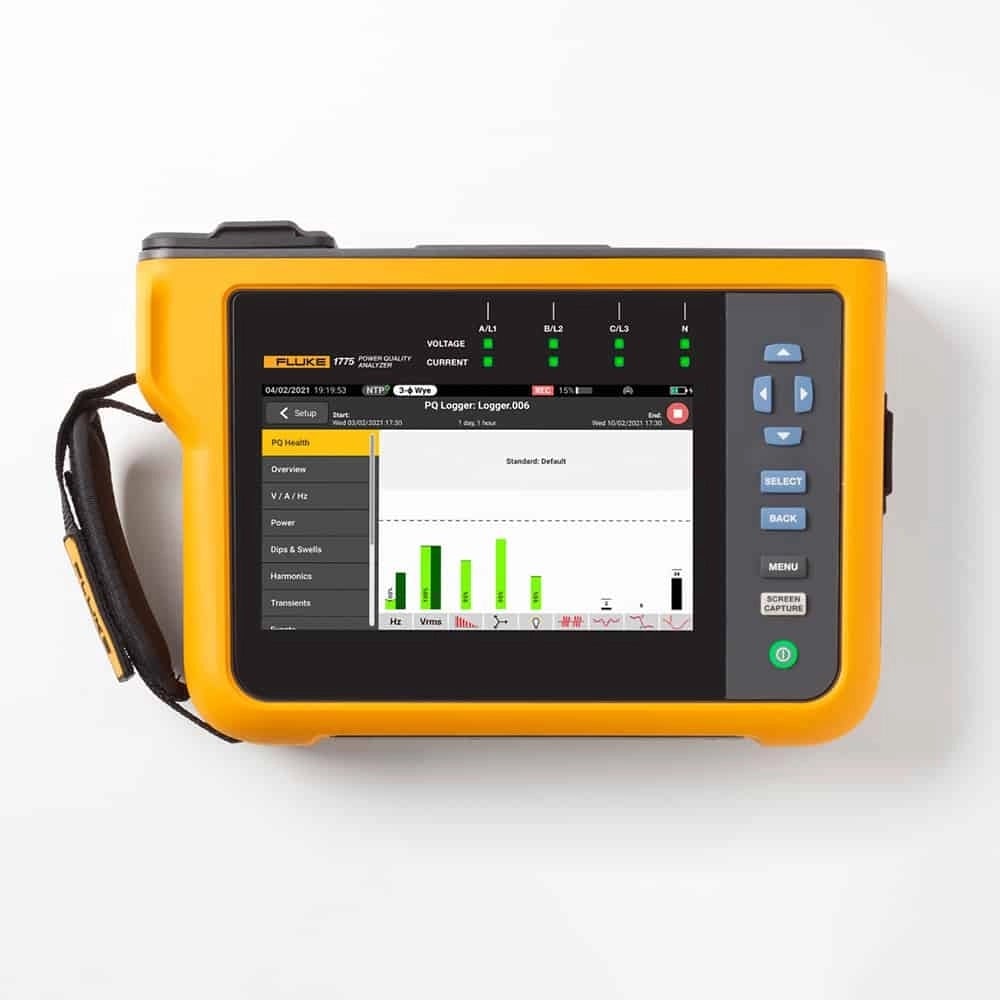

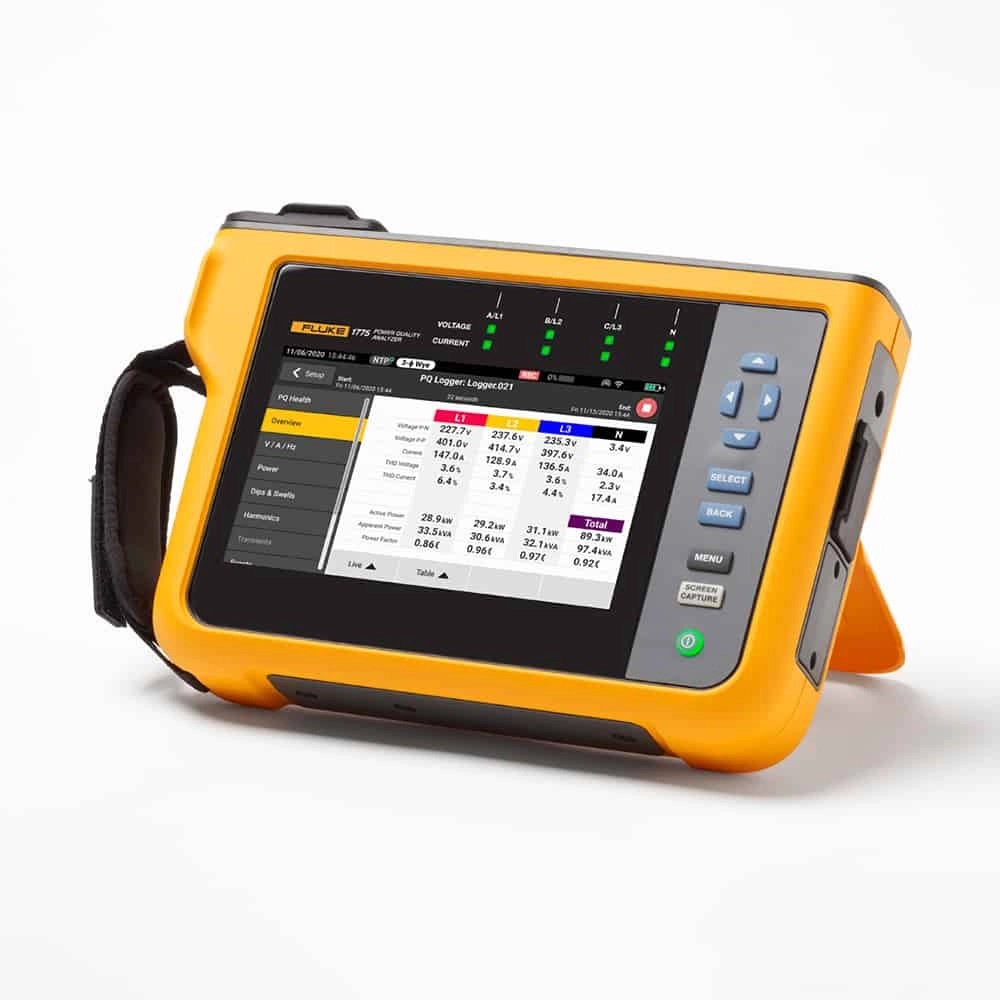

The Fluke 1775 features a responsive touchscreen interface designed for field usability, even with protective gloves. Automatic setup and wiring verification reduce configuration errors during installation. The interface allows quick navigation between different measurement views. Users can easily switch between power quality metrics and real-time waveforms. This simplifies operation for both experienced engineers and technicians.
Data Analysis and Reporting
The device integrates with Fluke Energy Analyze software for comprehensive reporting and evaluation. It supports industry standards such as EN 50160 and IEEE 519 for compliance checks. Recorded data can be exported for further analysis and documentation. This helps organizations maintain reliable power quality records. The reporting system enhances decision-making in maintenance and troubleshooting.
Industrial Applications
The Fluke 1775 is widely used in manufacturing plants, utilities, and large commercial facilities. It is effective for diagnosing equipment failures caused by electrical disturbances. The analyzer supports preventive maintenance by identifying hidden power issues early. It also helps optimize energy efficiency and system performance. Overall, it is a powerful tool for ensuring stable and reliable electrical infrastructure.
| Product Name | Fluke 1775 3-Phase Power Quality Analyzer 1ms Sampling Power Analyzer |
|---|---|
| Unit Weight (KG): | 2.1 kg (4.6 lb) |
| Manufacturer | Fluke |
| Color | Black |
