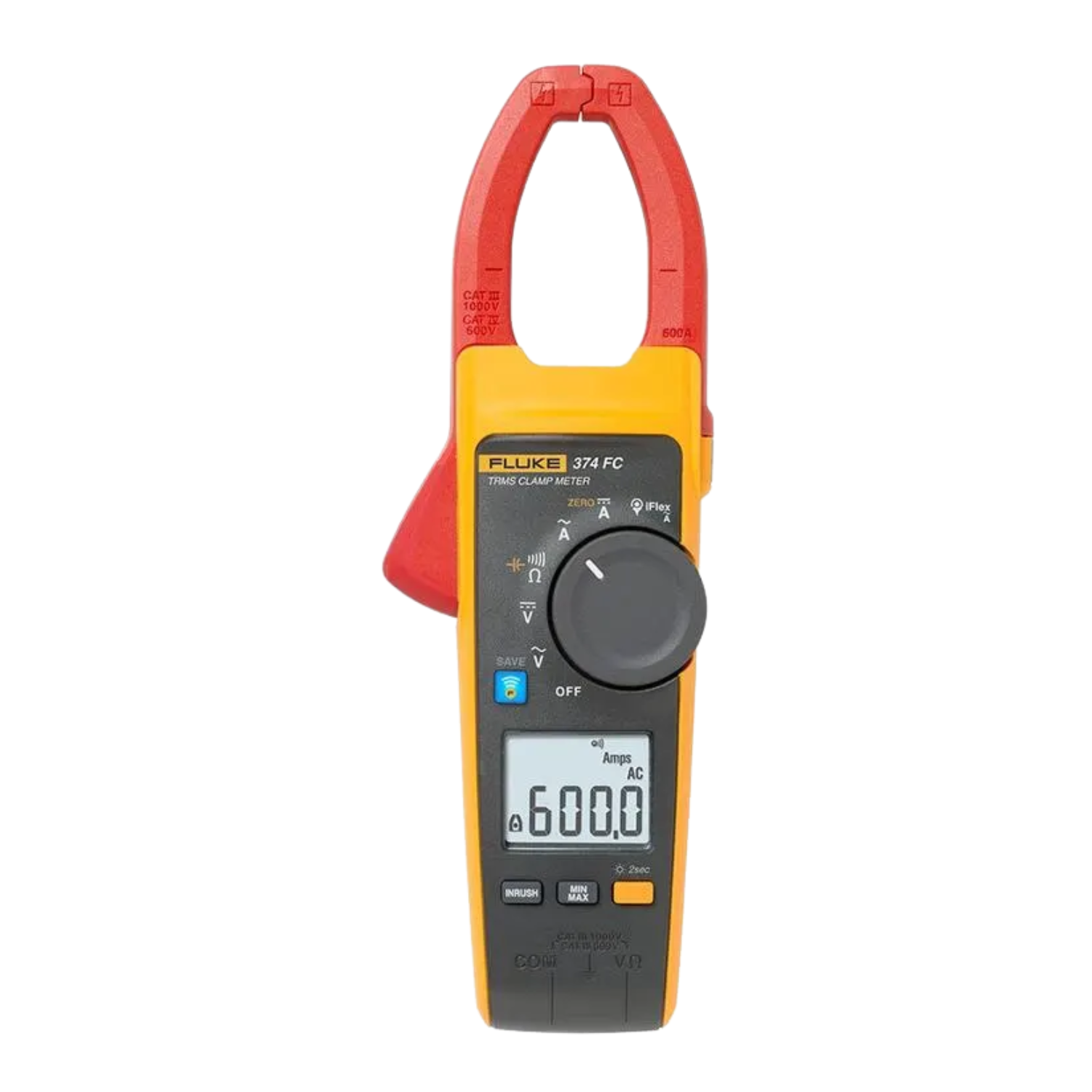

Fluke 374 FC True RMS AC/DC 600 A, 1000 V Clamp Meter
Quick Overview
- Features CAT III 1000 V and CAT IV 600 V safety rating
- Proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it

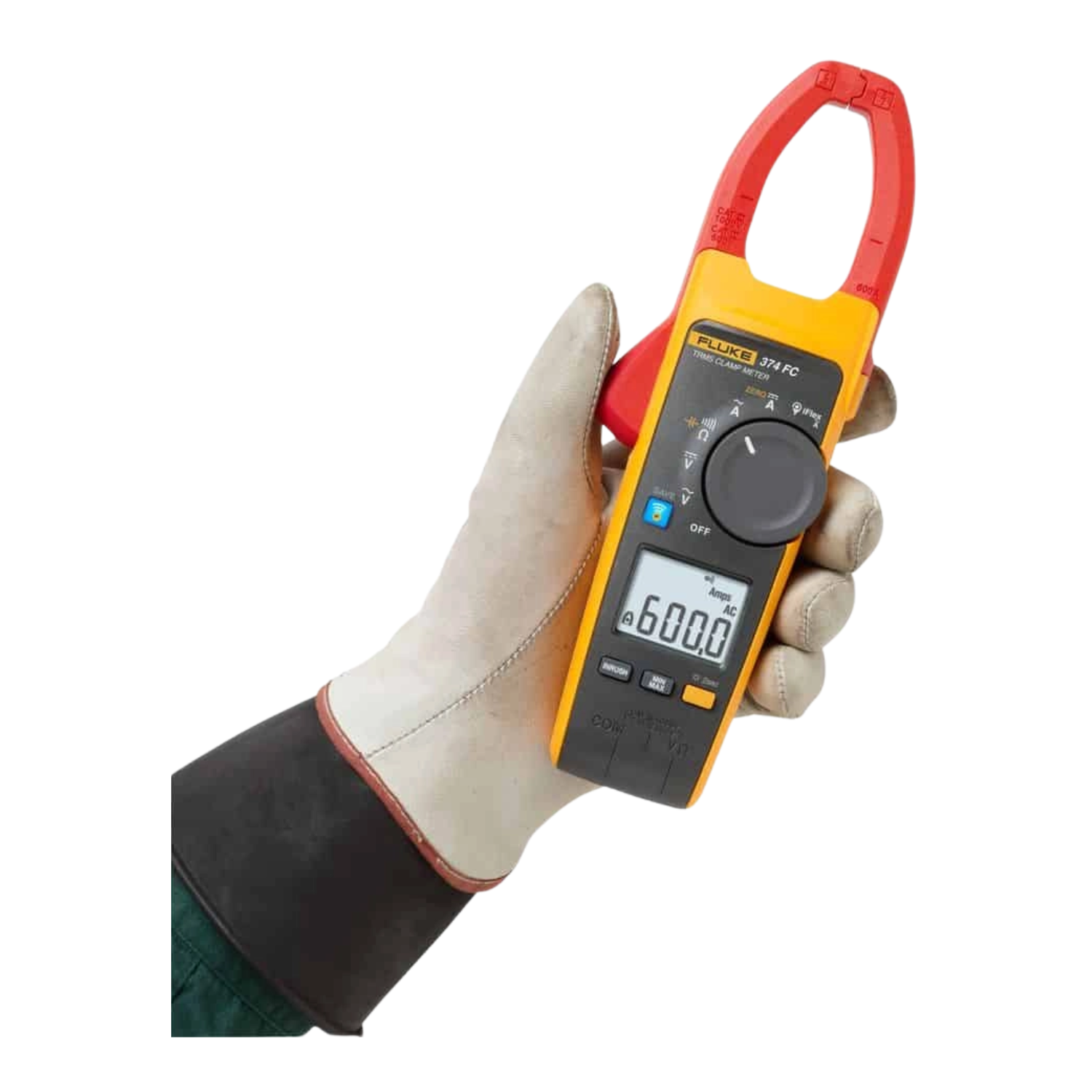

- Ergonomic design fits in your hand and can be used while wearing personal protective equipment
- A large, easy-to-read backlight display automatically sets the correct measurement range
- Provides True-RMS voltage and current measurements to accurately measure non-linear signals
PRODUCT OVERVIEW
Fluke 374 FC True-RMS AC/DC Clamp Meter
The Fluke 374 FC, part of the Fluke Connect family of wireless test tools, delivers the standard features you need for everyday troubleshooting. Measure AC and DC current to 600 A with the fixed jaw clamp or add an optional iFlex® flexible current probe to measure all the way to 2500 A. The large diameter and flexible design of the iFlex probe make it easier to measure around large conductors in tight spaces or to access tightly packed wires. You can also use the 374 FC to measure AC and DC voltage to 1000 V and resistance to 6000 Ω.
Wireless Connectivity To Keep A Safe Distance
The 374 FC is Fluke Connect-enabled to wirelessly transmit results via Bluetooth to Apple and Android devices. That means you can read the results out of the arc flash zone, wearing less PPE. You can even save results to the cloud and create and send reports in email right from the field. Or converse in real-time with ShareLive™ video calls.
|
|
|
Other Useful Capabilities:
- Compatible with optional TPAK magnetic hanging strap

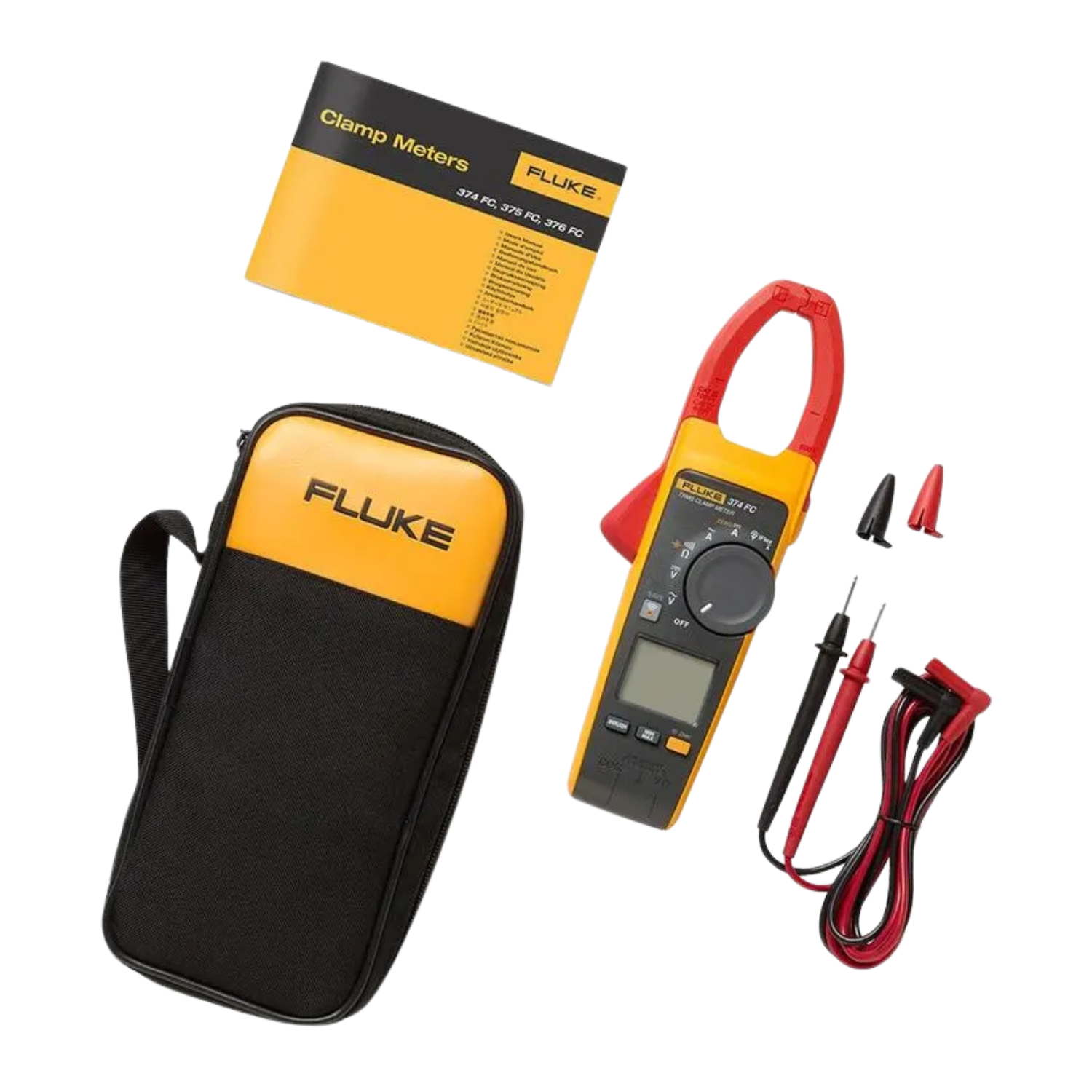

- Comes with soft carrying case, batteries, and three-year warranty
- Measures capacitance to 1000 µF
- Features CAT III 1000 V and CAT IV 600 V safety rating
- Provides True-RMS voltage and current measurements to accurately measure non-linear signals
- Includes min/max/avg. and inrush recording to capture variations automatically
- Runs on two AA alkaline batteries
| Product Name | Fluke 374 FC True RMS AC/DC 600 A, 1000 V Clamp Meter |
|---|---|
| Weight | 0.453592 |
| Manufacturer | Fluke |
| Color | Orange |
| Country of Origin | United States |
