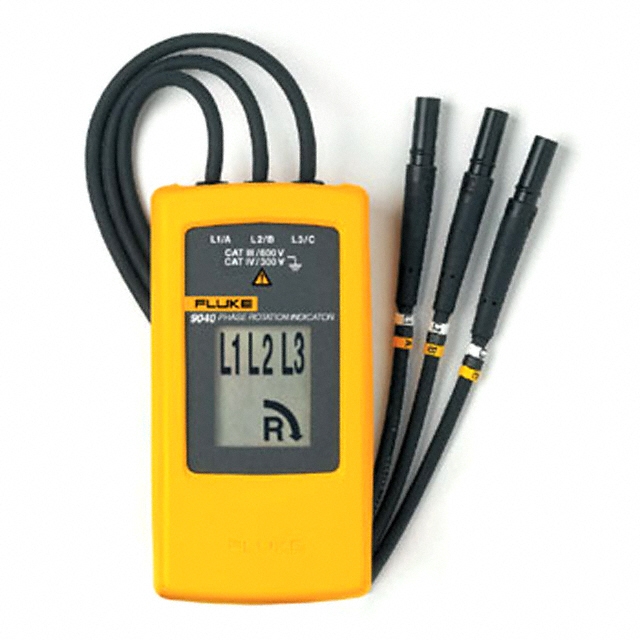

Fluke 9040 Phase Rotation Indicator
Quick Overview
- 3 phase indication
- Indication of phase rotation
- Clear LCD display
- No battery required
PRODUCT OVERVIEW
Phase Rotation Indicator With High Voltage Capability For Industrial Applications
The Fluke 9040 is effective for measuring phase rotation in all areas where three-phase supplies are used to feed motors, drives, and electrical systems. The Fluke 9040 is a rotary field indicator and can provide a clear indication of the 3 phase via an LCD display and the phase rotation direction to determine correct connections. It allows rapid determination of phase sequence and has a voltage (up to 700 V) and frequency range suitable for commercial and industrial applications. The included test probes have a variable clamping range for safe contact, also in industrial sockets.
It allows rapid determination of phase sequence and has a voltage (up to 700 V) and frequency range suitable for commercial and industrial applications. The included test probes have a variable clamping range for safe contact, also in industrial sockets.
- 3-phase indication
- Indication of phase rotation
- Clear LCD display
- No battery required
| Product Name | Fluke 9040 Phase Rotation Indicator |
|---|---|
| Voltage | 40-700 V |
| Frequency | 15-400 Hz |
| Battery | No |
| Operating Temperature | 0°C to 40°C |
| Certificates | CE, N10140, TUV, CSA |
| Weight | 0.200000 |
| Dimensions (WxHxD) mm | 124 x 61 x 27 mm |
| Manufacturer | Fluke |
| Country of Origin | United States |
