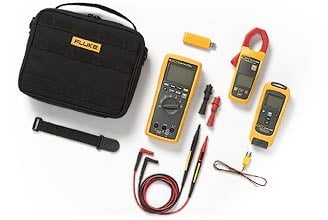

The CNX 3000 HVAC System provides measurement of all common electrical and temperature parameters.

• True-RMS AC and DC voltage measurements to 1000V
• True-RMS AC and DC current with 0.01 mA resolution
• Continuity, resistance, diode test, capacitance and frequency measurements
• MIN/MAX Recording
• CAT III 1000 V; CAT IV 600 V; IP54

• Temperature measurements from -200 °C to 1372 °C
• ± 0.5% accuracy
• Memory recording up to 65,000 readings
• Backlit LCD display; IP42 with thermocouple attached

• True-RMA AC current measurements to 400 A
• 2% accuracy to 100Hz, 2-1/2% accuracy to 500Hz
• Memory recording up to 65,000 readings
• iFlex current probe allows you to get into tight, awkward spaces
• Backlit LCD display
• CAT III 600 V; IP42
