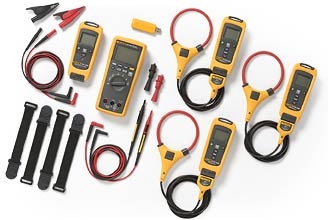

Fluke CNX Wireless Industrial System

The CNX 3000 Industrial System provides measurement of all common electrical parameters.

The CNX 3000 Wireless Multimeter offers:

• True RMS AC and DC voltage measurements to 1000V
• True RMS AC and DC current with 0.01 mA resolution
• Continuity, resistance, diode test, capacitance and frequency measurements
• MIN/MAX Recording
• CAT III 1000 V; CAT IV 600 V; IP54

The CNX i3000 iFlex AC Wireless Current Module offers:

• True RMS AC current measurements to 2500 A
• 3% accuracy
• Memory recording up to 65,000 readings
• iFlex current probe allows you to get into tight, awkward spaces
• Backlit LCD display
• CAT III 1000, CAT IV 600 V, CAT III 1000 V; IP42

The CNX v3000 AC Wireless Voltage Module offers:

• True RMS AC voltage measurements to 1000V
• ±1% accuracy to 500 Hz, ± 2% accuracy to 1 kHz
• Memory recording up to 65,000 readings
• Backlit LCD display
• CAT IV 600 V, CAT III 1000 V; IP42

The CNX wireless system can track up to 10 measurement modules simultaneously, with results sent to a PC for detailed analysis.
