This kit is a direct replacement for the obsolete 116/322 HVAC combo kit.
For the complete solution to HVAC troubleshooting the extra value-packed HVAC Multimeter and Clamp Meter Combo Kit, provides the ability to troubleshoot and solve problems more efficiently by providing all the needed accessories an HVAC professional would need in a compact carry case.

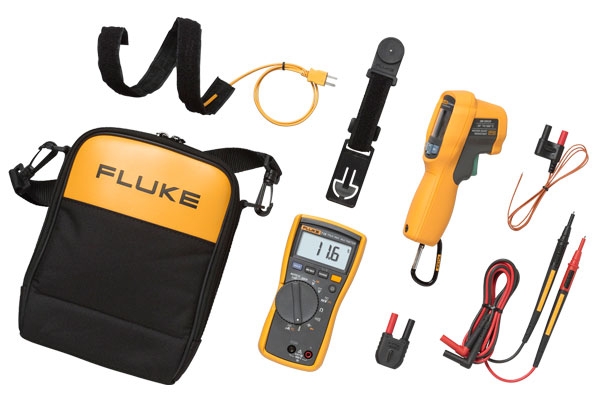

Fluke116 Digital Multimeter. Designed by Electricians. Engineered by Fluke.
- Fluke 116 HVAC Multimeter with Temperature and Microamps.
- TL175 Hard Point Test Lead Set.
- TPak ToolPak Magnetic Meter Hanging Strap.
- Flexible Cuff Pipe Clamp Thermocouple.
- 80BK Integrated Temperature Probe.
- 80AK-A Thermocouple Adapter.
- C115 Deluxe Soft Carrying Case with Shoulder Strap.
Fluke 323 True-rms Clamp Meter. Rugged. Reliable. Precise.
- 400 A ac current measurement.
- 600 V ac and dc voltage measurement.
- True-rms ac voltage and current for accurate measurements on non-linear signals.
- Resistance measurement up to 40 kΩ with continuity detection.
- Slim, ergonomic design.
- CAT IV 300V/CAT III 600 V safety rating.
| Product Name | Fluke HVAC True RMS Multimeter and Clamp Meter Combo Kit Fluke 116/323 |
|---|---|
| Voltage | 600 V |
| Current | < 350 µA |
| Capacitance | 1000 nF / 10.00 μF / 100.0 μF / 9999 μF, 1 nF / 0.01 μF / 0.1 μF / 1 μF, 1.9% + 2 |
| Frequency | - |
| Battery | 9 volt Alkaline, NEDA 1604A/ IEC 6LR61, Battery life 400 hours typical, without backlight |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Certificates | Complies with ANSI / ISA 82.02.01 (61010–1) 2004, CAN / CSA-C22.2 No 61010-1-04, UL 61010–1 (2004) and IEC / EN 61010–1 2nd Edition for measurement Category IV, 600 V, Pollution Degree 2, EMC EN61326–1 |
| Weight | 0.183251 |
| Dimensions (WxHxD) mm | 167.1 x 85.1 x 46.0 mm |
