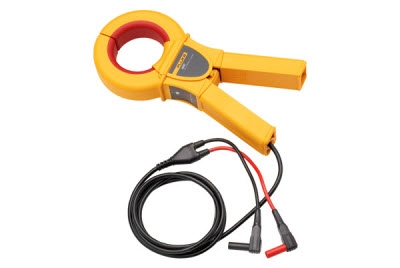

The Fluke i800 AC Current Clamp is designed for use with multimeters, recorders, safety testers, etc., for accurate non-intrusive AC current measurement. It extends the current measuring capability of a digital multimeter to 800 A AC. It is compatible with digital mulitmeters that accepts shrouded 4 mm (0.16) banana plugs and has an AC milliamp range.

• Measures AC current from 100 mA to 800 A rms
• 30 Hz to 10 kHz frequency range
• CAT III 600 V rating
• Accepts up to 54 mm (2.1 in) diameter conductor size
• 1000:1 conversion factor for easy calculation
• Rugged positive action design
