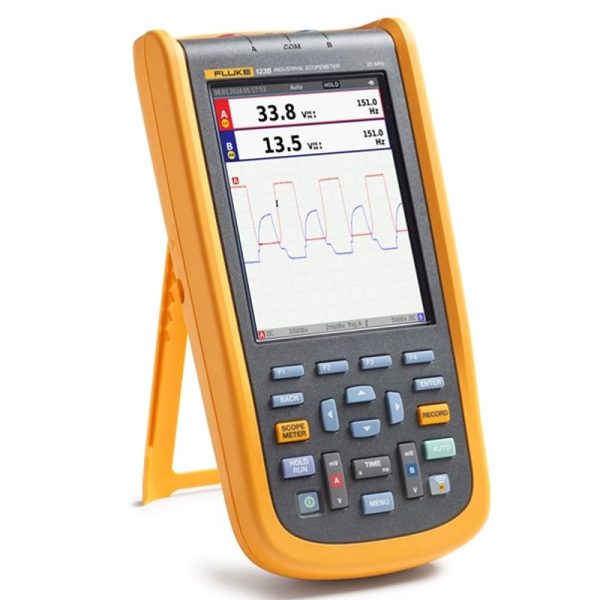

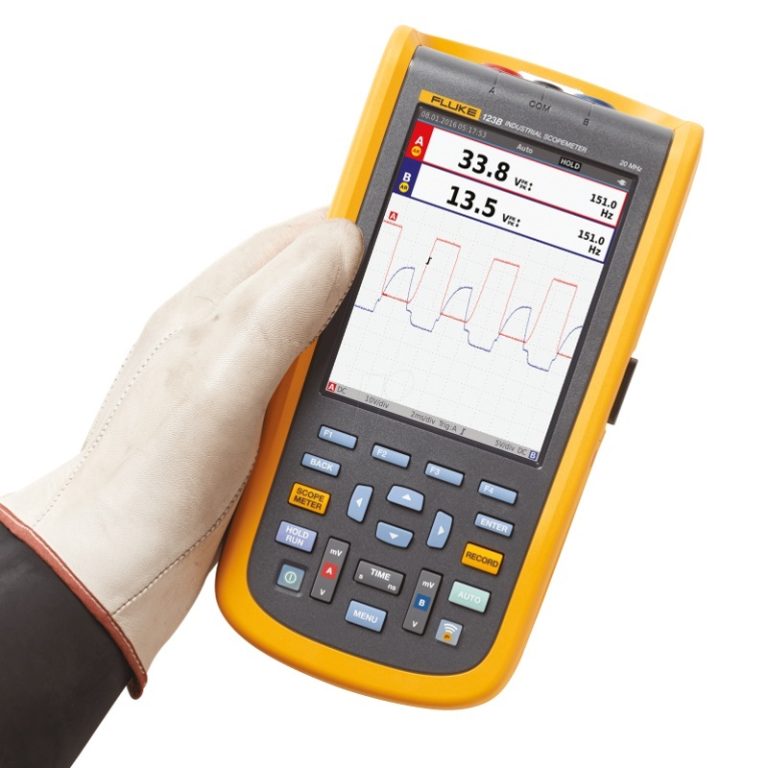

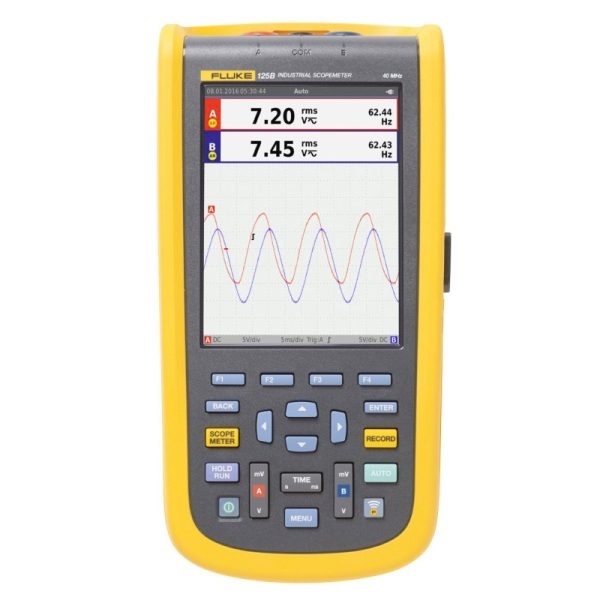

Fluke ScopeMeter 125b Series Oscilloscope

PRODUCT OVERVIEW

The Fluke 125B is based on the Fluke 124 and includes all the functions and capabilities of that instrument. On top, a Bus Health Test mode allows for an analysis of the signal quality on industrial buses and networks, comparing measured signals to the standards’ signal requirements.

This section presents the Bus Health Test capabilities of the 125B specifically. The Fluke 125B is the ScopeMeter of choice for the maintenance engineer who deals with industrial machinery and the industrial network connecting his machinery and the like. The Fluke 125B has all the functionality of the 124, plus it comes with the following extensions:

Bus Health mode gives a clear “Good," “Weak," or "Bad" indication for the electrical signals on industrial buses and networks, such as CAN-bus, Profi-bus, RS-232, and many more. The Fluke 125 validates the quality of the electrical signals as soon as any electrical signals are passed along the network. It checks the signal levels and speed, transition times, and distortion and compares these to the appropriate standards to help you find errors like improper cable connections and terminators. It helps you find the source of error in case communication comes to a halt. All the commonly found industrial network types are supported!

The 125B also offers advanced power measurements for single-phase and balanced 3-phase systems, a Harmonics Mode and more
