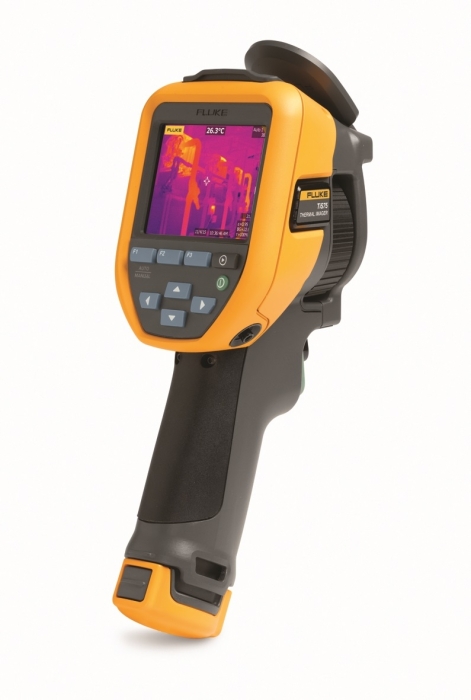

Fluke TiS75 9Hz Thermal Imager

The Fluke TiS75 thermal imager has a long-travel focus wheel which enables very fine manual focus adjustments to be made. An out-of-focus image can produce a temperature measurement that is incorrect by 20° or more. So technicians choose the TiS75 to capture in-focus images with precise measurements. Instrument features include a large 3.5-inch screen, to help pinpoint issues while still in the field, and one-touch image access which eliminates the need to scroll through a menu to view images.

FEATURES and BENEFITS:

. Professional quality images at 320 x 240 resolution (76,800 pixels)
. Manual focus flexibility for quality images as close as 0.15 m (6 in)
. Excellent performance even when user needs a safe distance with a D:S of 504:1
. Exact location viewing with precisely blended IR-Fusion visual and infrared images or picture-in-picture
. 33% more inspection viewing area with the 3.5 in, 320x240 LCD (as compared to 3.0 in LCD screen)
. Knowledge of power level – rechargeable batteries with level indicator
. Easy pinpointing of problems with built-in laser pointer
. Easy-to-use user interface with one-touch image access
. Dimensions 267 x 101 x 145 mm (10.5 x 4.0 x 5.7 in)
. Rugged and reliable

IN-FOCUS QUALITY IMAGES WITH MANUAL FOCUS OPERATION:

. D:S of 504:1
. Temperature measurement range –20 °C to 550 °C (–4 °F to 1022 °F)
. Find problems fast with exclusive IR-Fusion® Blending and PIP mode – capture the details you need to analyze problems and clearly identify the location
. 5 megapixel industrial performance digital camera
. Smart battery system – lithium ion smart battery with five-segment LED charge level display
. Email and share images in real time with Fluke Connect®
. Stores thousands of images – 4 GB internal memory and 4 GB micro SD card
