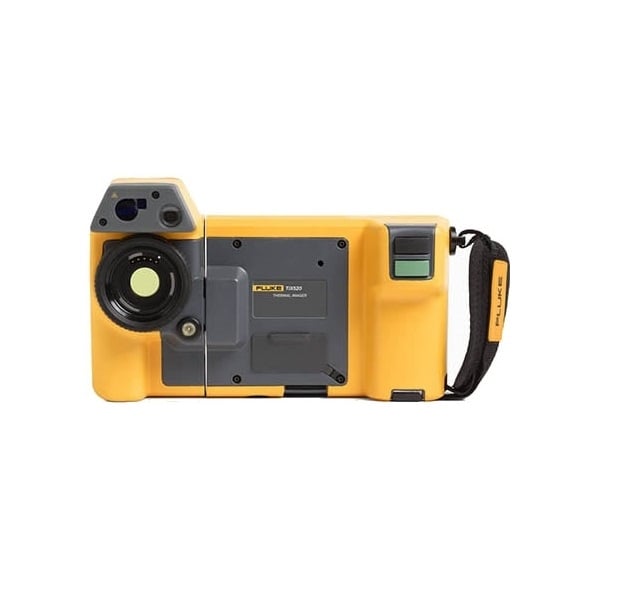

The Fluke TiX52060HZ 60 HZ, 320 x 240, 1.31 mRad, Expert HD Thermal Imaging Camera (-4 - 1202°F) saves time with post-capture image processing - edit emissivity, background temperature, transmissivity, palettes, color alarms, IR-Fusion and enable/disable markers all with one camera. Obtain In-Focus premium image quality with the touch of a button. Experience premium in-field viewing with the large, 5.7 in. responsive touchscreen LCD. Get enhanced image quality and temperature measurement accuracy with the SuperResolution - you can turn 320 x 240 images into 640 x 480 images, which is 4x's the resolution and pixels. LaserSharp Auto Focus uses a built-in laser distance meter that calculates and displays the distance to your designated target with pinpoint accuracy. Get premium image output in high temperature applications by combining multiple sequential frames of data into one, with Image Sharpening. Find subtle temperature differences easier - instantly improve thermal sensitivity from 45 mK to 30 mK with Filter mode.

IR-Fusion Technology: Precisely Blended Images Offer More Detail

Infrared images alone can be difficult to understand, which is why Fluke pioneered IR-Fusion technology. Automatically capture a visible image with every infrared image; this allows you to always know exactly what you are looking at. And image quality is everything when it comes to quickly analyzing infrared images - you need the right level of detail to pinpoint specific areas of concern. IR-Fusion blends visible light and infrared images to capture a clear 5MP real-world picture of your target. Blend at different preset levels and add picture-in-picture (PIP) to capture an incredibly revealing hybrid image.

LaserSharp Auto Focus

Potential problems hide behind incorrect readings; LaserSharp Auto Focus garentees crisp, sharp images every, single time. If your image is out of focus, temperature measurements could be off by up to 20 degrees or more. Getting crisp images in manual focus takes time and careful attention. With LaserSharp Auto Focus, you get an in-focus image of your designated target with the push of a button. The built-in laser distance meter instantly calculates and displays the distance to your target, and the focus engine immediately adjusts the focus.

Fluke SmartView Software

•   Powerful, modular suite of software tools for viewing, annotating, editing and analyzing infrared images
•   Generate fully customizable and professional-looking reports in a few easy steps
•   Full support of IR-Fusion Technology lets you edit images in five viewing modes
•   Easy to use, yet delivers high-end analysis performance

Image Viewing and Editing

•   Display array of open images for convenient selection and analysis
•   Scroll across images to display temperature at any given point
•   Edit color palettes, reference images, markers and emissivity

Extensive Annotation Possibilities

•   Organize data with extensive annotations
•   Add annotations (text comments) to images and reports
•   Input information such as locations, category and other notes
•   Referenced images can be linked for good/bad and before/after analysis
