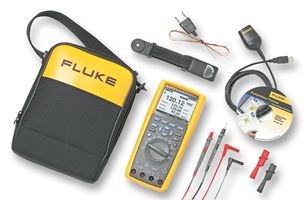

Fluke True RMS Industrial Logging Multimeter with TrendCapture Fluke 289/EUR
SKU
Fluke-289/EUR
$1,139
$1,085
Limited Stock - Running Out Quickly
Pay as low as per month in 4 equal installments interest free
Pay as low as per month in 4 equal installments interest free
We also accept
Solve problems faster and help minimize downtime with the ability to log data and review it graphically on-screen.
Solve problems faster and help minimize downtime with the ability to log data and review it graphically on-screen. The Fluke 289 Logging Multimeter is designed to solve complex problems in electronics, plant automation, power distribution and electro-mechanical equipment. You can track down elusive, intermittent problems with Fluke 289's built-in data logger and TrendCapture capability while you are off doing other jobs.
- TrendCapture quickly graphically displays logged data session
- Zoom on trend provides unprecedented ability to view and analyse TrendCapture data
- Selectable ac filter helps display a steadier reading when the input signal is changing rapidly
- Adjustable recording and auto hold thresholds
- Large 50,000 count, 1/4 VGA dot matrix display with white backlight
- Logging function with expanded memory for unattended monitoring of signals over time
- Save multiple logging sessions before pc download is necessary
- Low Pass filter for accurate voltage and frequency measurements at the same time on noisy equipment
- LoZ Volts low impedance voltage function prevents false readings due to "ghost voltage
- Real time clock for automatic time stamping of saved readings
- Multi-lingual interface
| Product Name | Fluke True RMS Industrial Logging Multimeter with TrendCapture Fluke 289/EUR |
|---|---|
| Voltage | 50.000 mV,500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V |
| Current | 500.00 µA, 5000.0 µA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A |
| Capacitance | 1.000 nF,10.00 nF 100.0 nF, 1.000 µF, 10.00 µF, 100.0 µF, 1000 µF, 10.00 mF, 100.0 mF |
| Frequency | 99.999 Hz, 999.99 Hz, 9.9999 kHz, 99.999 kHz, 999.99 kHz |
| Battery | 6 AA alkaline batteries, 100 hours minimum, 200 hours in logging mode |
| Operating Temperature | -20 °C to 55 °C |
| Certificates | Complies with ANSI / ISA 82.02.01 (61010–1) 2004, CAN / CSA-C22.2 No 61010-1-04, UL 61010–1 (2004) and IEC / EN 61010–1 2nd Edition for measurement Category IV, 600 V, Pollution Degree 2, EMC EN61326–1 |
| Weight | 0.394625 |
| Dimensions (WxHxD) mm | 22.2 cm x 10.2 cm x 6 cm |
| Manufacturer | Fluke |
