Fujikura 90R 16-Fiber Ribbon Fusion Splicer with Touchscreen, Bluetooth & Cladding Alignment
Key Features of Fujikura 90R Fusion Splicer
-
The 90R series is suitable for 4-, 12-, and 16-fiber ribbons.
-
Improved Automatic Wind Protector design reduces overall splice time.
-
High-capacity lithium-ion battery which provides up to 165 12-fibre splices and heat shrinks.
Fujikura 90R Series Mass Fusion Splicer
The 90R series fusion splicers, including the 90R12 and 90R16, offer advanced mass-fusion capabilities — splicing up to 12-fiber and 16-fiber ribbons with a pioneering user-replaceable V-groove assembly.
See the Fujikura 90R Series in Action
Advanced Mass-Fusion Capabilities
The 90R series fusion splicers, including the 90R12 and 90R16, offer advanced mass-fusion capabilities, splicing up to 12-fiber and 16-fiber ribbons, respectively. They feature a pioneering user-replaceable V-groove assembly, allowing quick field replacement to minimize downtime and maximize productivity.

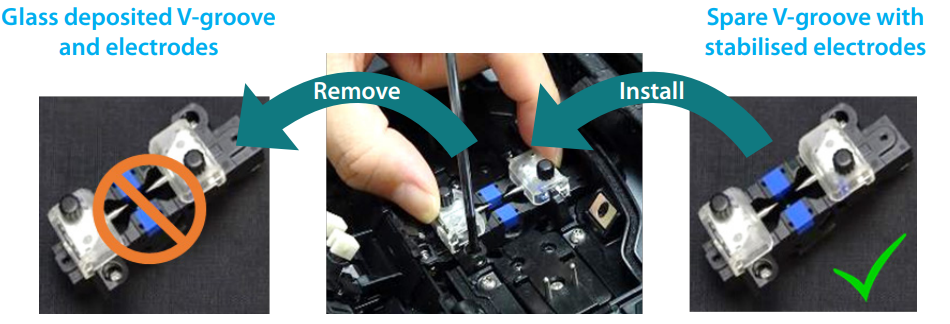

This design enhances cleanliness by preventing fiber offsets and high losses caused by splicing debris, a common issue with traditional fixed V-grooves. Supplied as standard in the 90R kit, the spare V-grooves support conventional 12-fiber encapsulated ribbons, SpiderWeb Ribbon (SWR), and 250µm or 200µm pitch fibers, while the 90R12 model additionally accommodates single-fiber splicing when needed.
Built for Every Ribbon Type
The 90R series is designed to handle a wide range of ribbon types and field conditions with universal compatibility and intelligent accessories.
Universal Fibre Holder
One Holder, Many Ribbons

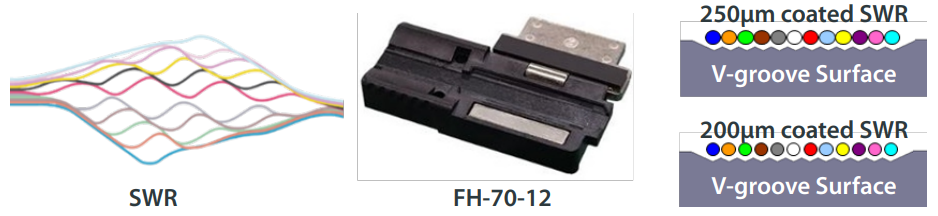

The FH-70-12 fibre holder is compatible with many types of 12 fibre ribbons, such as 0.3mm or 0.4mm thick encapsulated ribbons and 200µm or 250µm coated Spider Web Ribbon (SWR). The 250µm pitch V-grooves in the FH-70-12 fiber holder simplify SWR loading and ribbon preparation.
Pitch Conversion Fibre Holder
200µm to 250µm Pitch
The pitch conversion fiber holder, FH-70-12PC, enables pitch conversion of individual 200µm coated fibers from a 200µm to 250µm pitch. The pitch-converted 200µm fibers can now be loaded in the 90R12 mass fusion splicer.
Ribbonising Tool
Quick Ribbonisation

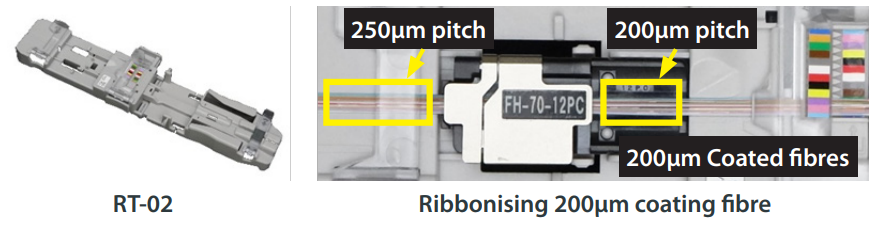

The RT-02 is a tool that enables quick and easy ribbonisation of 12 individual fibres into a temporary ribbon which can be spliced using a 90R12. No glue or adhesive is required when using this ribboning tool since the arranged fibers are immediately loaded into the fiber holder. The RT-02 doesn't require the user to insert the fibers in the color code sequence, which is necessary with other ribbon arrangement tools.
Designed for Field Efficiency
Every aspect of the 90R series is engineered to reduce manual steps, speed up deployment, and keep technicians productive in the field.
Automated Functionality

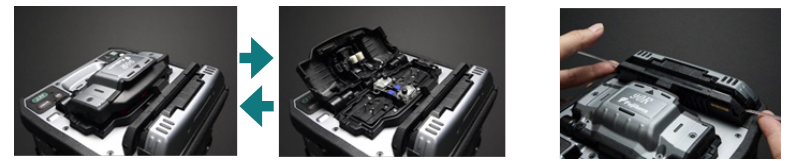

The automated wind protector and heater clamps support the operator in completing the entire splicing process with minimal manual steps.
Simple Sleeve Centring
The 90R12 mass fusion splicer features simple sleeve positioning with its designated centering area on top of the tube heater.
Versatile Carrying Case
There are multiple ways to utilize the 90R12 carrying case. Use it inside the case, on top of the case, or only with the work tray — depending on your work environment.
Functional Work Tray

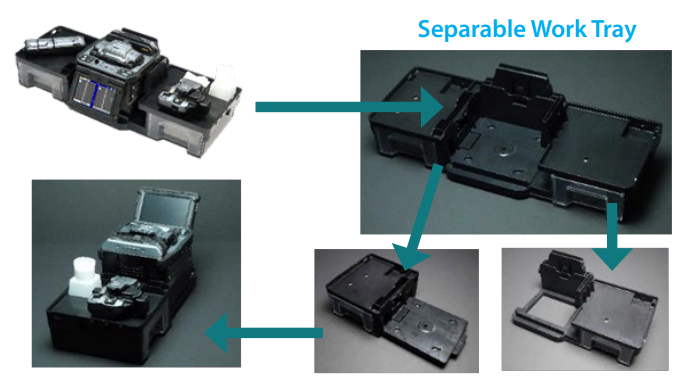

The newly designed work tray has many functions, including two storage drawers large enough for tools or battery packs, and can be divided in two to fit your workspace.
Fujikura 90R Series In Detail
Engineered for Mass Fusion Productivity
12 & 16 Fiber Ribbons
90R12 and 90R16 splice up to 12-fiber and 16-fiber ribbons respectively.
User-Replaceable V-Groove
Quick field replacement minimizes downtime and maximizes productivity.
SpiderWeb Ribbon Support
Supports conventional encapsulated ribbons and SWR in 200µm or 250µm pitch.
Single-Fiber Splicing
The 90R12 model additionally accommodates single-fiber splicing when needed.
Anti-Debris Design
Prevents fiber offsets and high losses caused by splicing debris on the V-groove.
Automated Splicing
Automated wind protector and heater clamps reduce manual steps to a minimum.
Mass Fusion, Maximum Productivity
The Fujikura 90R series combines advanced mass-fusion capabilities, a user-replaceable V-groove assembly, and intelligent accessories for maximum field productivity.
| Product Name | Fujikura 90R 16-Fiber Ribbon Fusion Splicer with Touchscreen, Bluetooth & Cladding Alignment |
|---|---|
| Weight | 2.600000 |
| Fiber type | Up to 12 fibre ribbon |
| Fiber alignment method | Self cladding alignment with melting surface tension |
| Humidity | Operate : 0 to 95%RH non-condensing |
| Interface | USB2.0 Mini B type |
| Temperature Range | Operate : -10 to 50 °C |
| Display | TFT 5 inches with touch screen |
| Battery Life | 500 recharge cycles |
| Magnification | 20X : 12 ribbon to 60X : single |
| Power Input | AC100 to 240V, 50/60Hz, Max. 0.58A |
| External Output | DC10 to 17V, Approx. 1A |
| Capacity | 165 splice and heat cycles |
| Dimensions | 170 x 173 x 150 mm |
| Manufacturer | Fujikura |
| Color | Blue Pearl Fade Metallic Finish |
| Country of Origin | United Arab Emirates |
Product Datasheet
