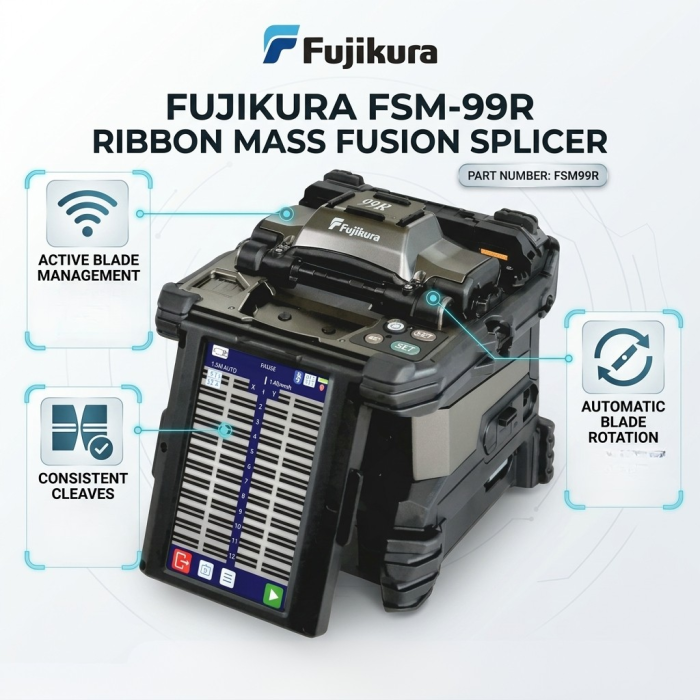

Fujikura FSM-99R Ribbon Mass Fusion Splicer Welding Splicer with CT60 Cleaver
Key Features of Fujikura 99R Fusion Splicer
-
Active Blade Management: Wireless connectivity between the 99R, 100R, and CT60 enables real-time blade management.
-
Automatic Blade Rotation: The 99R automatically rotates the CT60 blade when it detects wear.
-
Consistent Cleaves: Ensures consistent, high-quality fiber cleaving performance.
-
Blade Life Monitoring: Blade life is clearly displayed on the 99R splicer’s screen.
-
Blade Replacement Alert: Automatically notifies the user when the blade needs to be replaced.
Fujikura 99R Mass Fusion Splicer Kit
Mass fusion for a new generation of networks. The 99R Kit delivers high-quality splicing, reduced re-setting rates by up to 80%, and a full suite of user-friendly features — including Active Fusion Control, Active Blade Management, and Auto Fiber Fit.
Mass Fusion Performance, Optimized
The Fujikura 99R is the next generation of mass fusion splicers — engineered for high-quality splicing, efficiency, and consistency in the field. Building on Fujikura's proven 90R platform, the 99R introduces advanced automation, wireless blade management, and a refined user experience that dramatically reduces the risk of rework.
With support for up to 16-fiber ribbons, the 99R combines Active Fusion Control Technology (ACT), Auto Fiber Fit, and a portrait-oriented screen for improved fiber visibility. Every detail — from the automated wind protector to the CT60 optical fiber cleaver — is designed to streamline the splicing process and keep technicians productive.
Active Fusion Control Technology
Real-Time Arc Optimization
The 99R always applies optimal fusion control to deliver a significant reduction in splice loss. Its real-time fusion parameter control is achieved by analyzing the fiber brightness during splicing. ACT contributes to increased consistency, quality, and a reduced risk of rework.
Active Blade Management Technology
Detects Blade Worn Position
Because the 99R and CT60 cleaver connect wirelessly, the 99R manages the CT60's blade in real time and automatically rotates the CT60's blade when it judges it to be worn. The result is consistent, high-quality cleaves. Blade life is displayed on the 99R's screen, and the splicer will inform the user when a new blade is required.

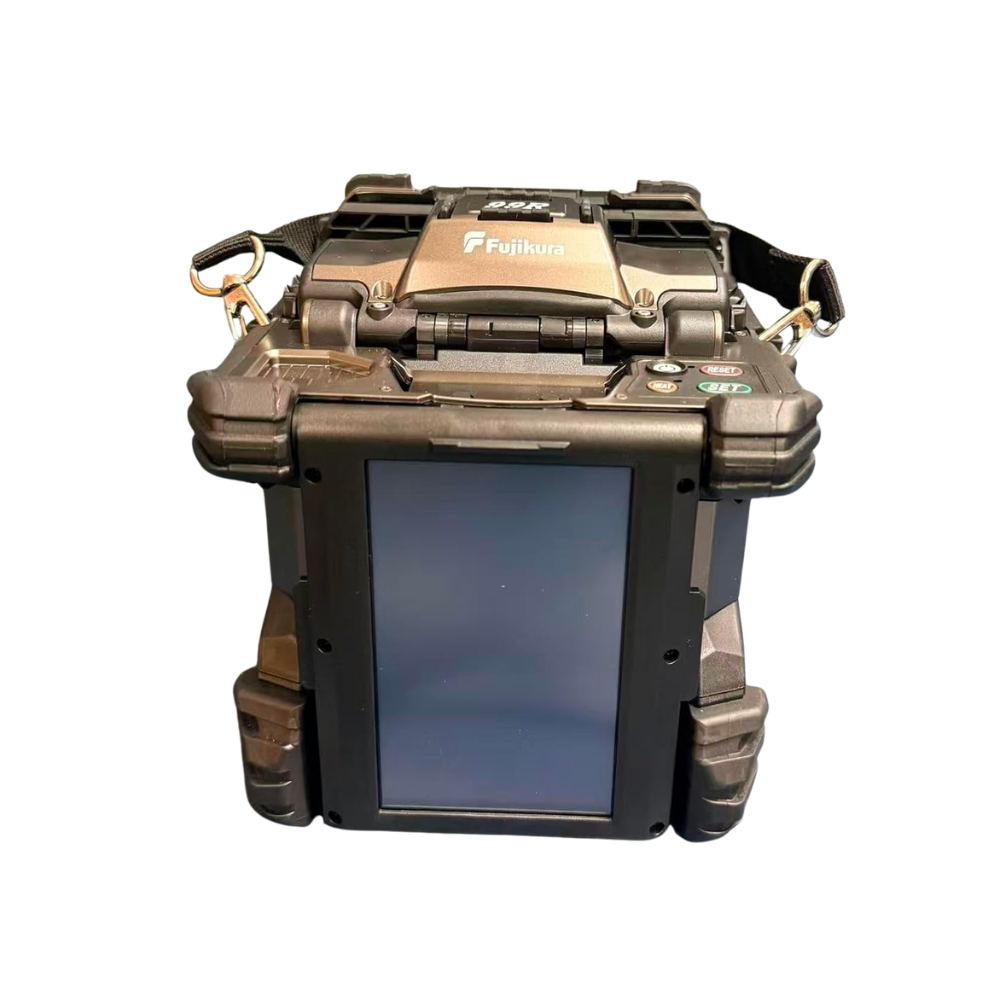

Reduces Optical Fiber Re-setting Rate by About 80%
Compared to previous models, the 99R dramatically reduces the need to re-set fibers during the splicing process. The Auto Fiber Fit system automatically aligns optical fibers that do not sit properly in the V-groove when they are set, reducing the need to manually reset the fibers and improving overall workflow efficiency.

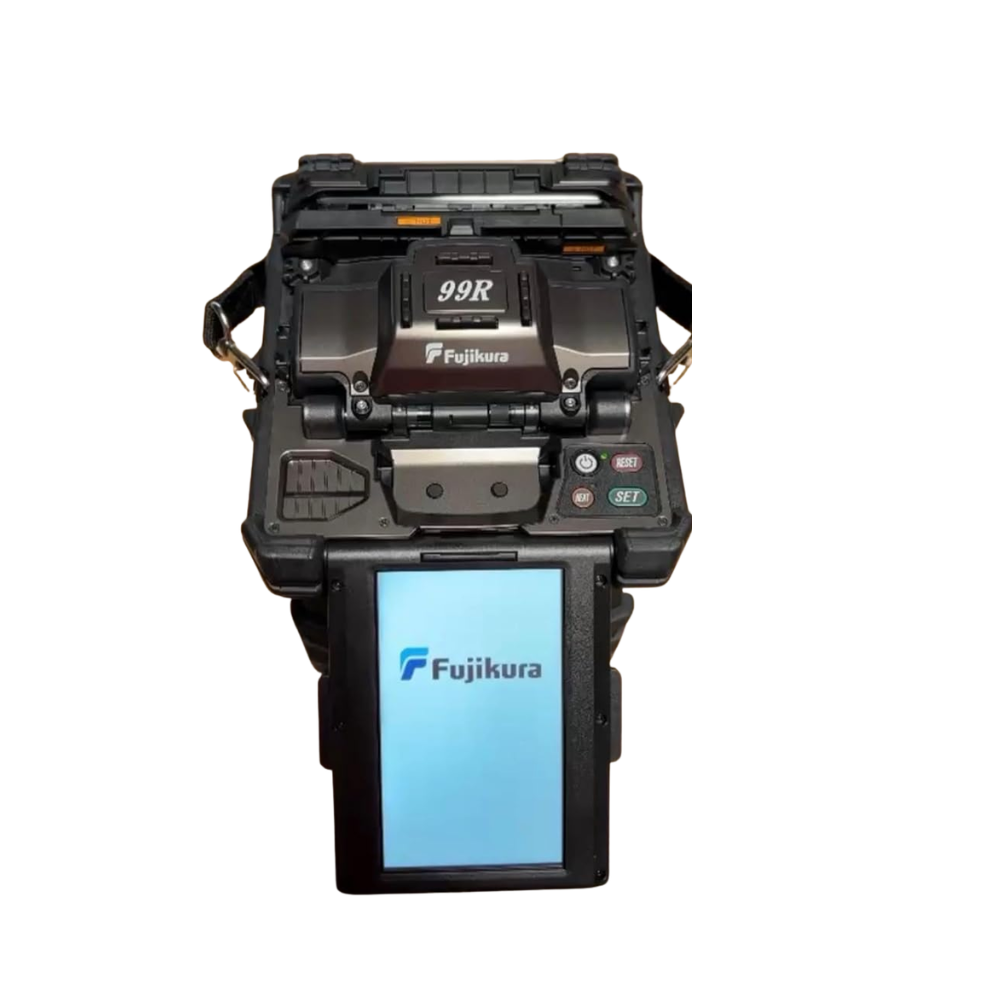

Auto Fiber Fit™
Automatic Fiber Alignment
The 99R automatically aligns optical fibers that do not sit properly in the V-groove when they are set, thereby reducing the need to manually reset the fibers. This intelligent automation saves time and reduces operator fatigue during long splicing sessions.

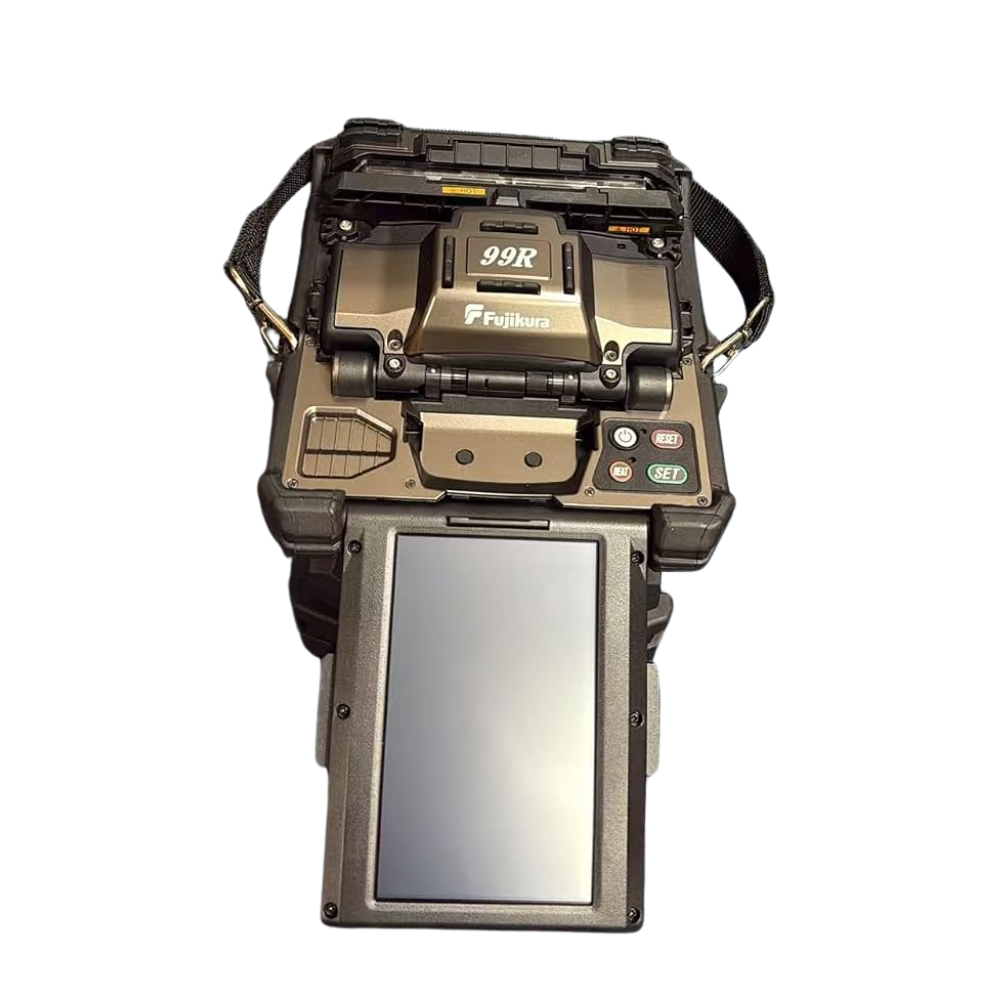

High Quality Splicing, Refined
The 99R delivers refined splicing quality through multiple intelligent systems that work together to ensure consistent, reliable results in every splice.
Fiber End Gap Correction
The 99R can detect the gap between left and right fibers and will automatically equalize the gap to improve efficiency, consistency, and quality.
Automatic Clamp Power Adjustment
Fiber clamps will automatically adjust to an optimal power setting according to the fiber count — a higher fiber count results in higher clamp power to ensure fibers are firmly seated for splicing.
Automatic Wind Protector
Once fibers have been set, the wind protectors will both open and close automatically to help streamline the splicing process.
Optical Fiber Cleaver CT60
The CT60 simplifies blade management without impacting cleave quality; thanks to 28 blade positions, the CT60 blade does not require its height to be adjusted to complete the maximum amount of cleaves available from a blade.
Application Versatility
Like its predecessor, the 99R supports ribbons with up to 16 fibers. The portrait-oriented screen improves fiber visibility when working with 16-fiber ribbons. We offer interchangeable V-grooves, making the 99R highly versatile in the field for users who work with varied fiber counts and pitches.
New FH-80 Fiber Holder
Easier and More Consistent
Thanks to a new clamp mechanism mounted at the tip of the FH-80 fiber holder, fiber setting of intermittently bonded ribbon such as Spider Web Ribbon (SWR™) is made easier and more consistent.
Designed for Field Efficiency
GSP Workflow Management
The 99R supports workflow management with its GPS technology, which records splice location.
Splice+ App
Fujikura Splice+ allows you to view splicer location information and the results for a specific location. The app also allows the user to lock the splicer to deter theft.
Splice Coach
New engineers can be assured that the 99R will help them complete work to a high standard the first time round. Access guidance from each step of the splice process with Fujikura Splice Coach so you've always got a helping hand available if required.
Power When You Need
The 99R can be charged using a power bank or other mobile power source via its USB C port.

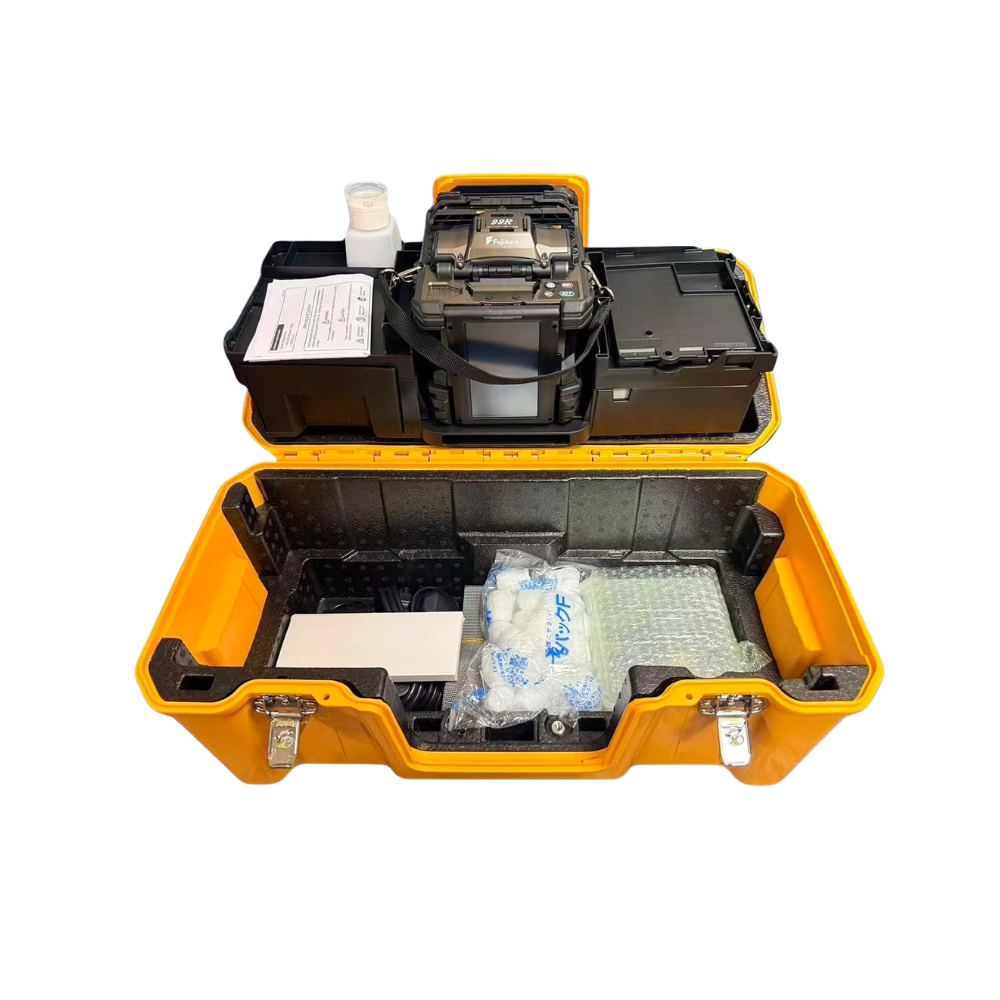

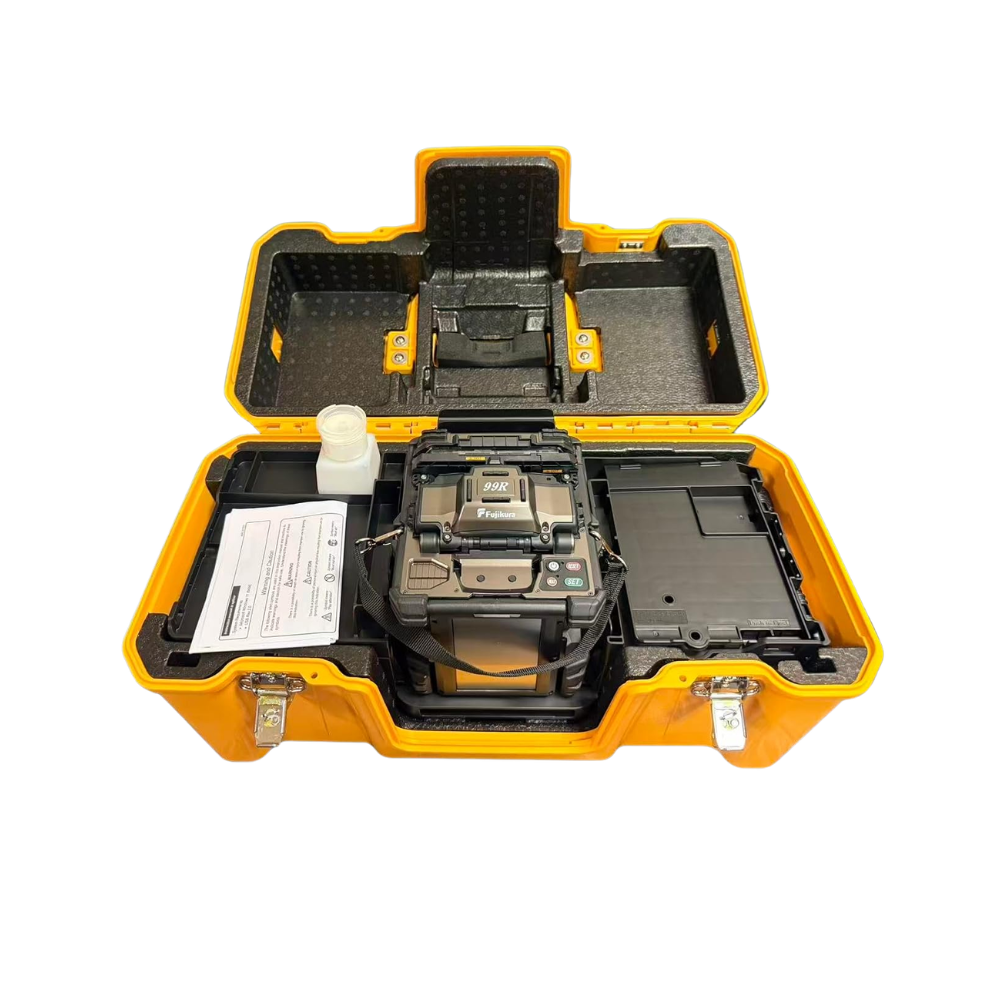

99R12 & 99R16 Kit Contents
The 99R Kit is available in two configurations — 99R12 (12-fiber) and 99R16 (16-fiber). Both kits include a comprehensive set of accessories for immediate field deployment.
Outstanding After-Sales Support
Our commitment to you doesn't end at the point of purchase. With Fujikura offices and authorized distributors around the world, you have access to trained engineering expertise wherever you operate. Local specialists are equipped to service and repair your splicer, helping maintain reliable results over its working life.
Engineered for Mass Fusion Productivity
16-Fiber Ribbon Support
Supports ribbons with up to 16 fibers with a portrait-oriented screen for improved visibility.
Active Fusion Control
Real-time arc optimization analyzes fiber brightness during splicing to reduce splice loss.
Active Blade Management
Wireless connection to CT60 cleaver monitors blade wear and auto-rotates for consistent cleaves.
Auto Fiber Fit™
Automatically aligns fibers that don't sit properly in the V-groove, reducing manual resets.
80% Less Re-setting
Reduces optical fiber re-setting rate by approximately 80% compared to previous models.
USB-C Power
Can be charged using a power bank or other mobile power source via its USB-C port.
Splice+ App & Coach
View splicer location, lock the splicer remotely, and access step-by-step guidance.
New FH-80 Holder
New clamp mechanism makes Spider Web Ribbon (SWR™) setting easier and more consistent.
Mass Fusion for a New Generation of Networks
The Fujikura 99R Kit combines Active Fusion Control, Active Blade Management, Auto Fiber Fit, and a full suite of user-friendly features for maximum field productivity.
| Product Name | Fujikura FSM-99R Ribbon Mass Fusion Splicer Welding Splicer with CT60 Cleaver |
|---|---|
| Weight | 2.600000 |
| Fiber type | Single-mode and multi-mode optical fiber |
| Fiber alignment method | Cladding alignment |
| Humidity | 0–95% RH, non-condensing |
| Interface | USB 2.0 Mini-B; USB 2.0 Type-A; Mini-DIN 6-pin; Bluetooth 4.1 LE |
| Storage | 100 splice modes; 30 heat modes; 10,000 splice results; 100 splice images |
| Temperature Range | Operate : -10 to 50 °C |
| Display | 4.9-inch color TFT touchscreen |
| Battery Life | Approx. 20× for 12-fiber ribbon to 60× for single fiber |
| Magnification | AC 100–240 V, 50/60 Hz, max. 1.5 A |
| Power Input | AC100 to 240V, 50/60Hz, Max. 0.58A |
| External Output | USB 2.0 Type-A, approx. DC 5 V / 500 mA |
| Capacity | Approx. 164 splice & heat cycles per battery charge |
| Dimensions | 170 × 173 × 150 mm |
| Manufacturer | Fujikura |
| Color | Blue Pearl Fade Metallic Finish |
| Country of Origin | United Arab Emirates |
