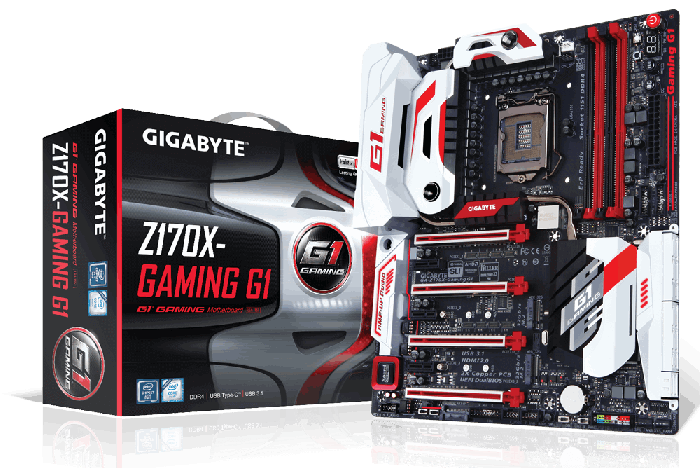

GIGABYTE GA-Z170X-Gaming G1 Motherboard
Actual Stock Can Be Confirmed After Placing the Order.
SKU
GA-Z170X-GAMING G1
AED 2,082
AED 1,983
Pay 4 interest-free payments of AED 421.00.Learn more
GIGABYTE GA-Z170X-Gaming G1 Motherboard.
- Intel Thunderbolt 3 Certified Motherboard
- Supports 6th Generation Intel Core Processor
- Dual Channel DDR4, 4 DIMMs
- Intel USB 3.1 with USB Type-C - The World’s Next Universal Connector
- 4-Way Graphics Support with Exclusive Ultra Durable Metal Shielding over the PCIe Slots
- Dual PCIe Gen3 x4 M.2 Connectors with up to 32Gb/s Data Transfer (PCIe NVMe & SATA SSD support)
- 3 SATA Express Connectors for up to 16Gb/s Data Transfer
- Integrated HDMI 2.0 support
- Creative certified Sound Blaster ZxRi 120+dB SNR
- Killer DoubleShot-X3 Pro for the best networking experience possible
- LED Trace Path with Multi-Color Choice
- Water Cooling Ready Heatsink Design with G1/4 Threaded Fittings
- APP Center Including EasyTune™ and Cloud Station™ Utilities
- GIGABYTE UEFI DualBIOS with Q-Flash Plus USB port
| Product Name | GIGABYTE GA-Z170X-Gaming G1 Motherboard |
|---|---|
| Socket | 1151 |
| Chipset | Intel Z170 Express Chipset |
| Memory Channel | Dual |
| DIMM Slots | 4 |
| Max. Supported Memory | 64GB |
| Expansion Slots | 1. 2 x PCI Express 3.0 x16 slots, running at x16 (PCIEX16_1, PCIEX16_2) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot; if you are installing two PCI Express graphics cards, |
| USB | Chipset: 4 x USB 3.0/2.0 ports on the back panel 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) Chipset+2 Renesas USB 3.0 Hubs: 7 x USB 3.0/2.0 ports (3 ports on the back panel, 4 ports available through the internal USB headers) Chipset+Intel Thunderbolt 3 Controller: 1 x USB Type-C™ port on the back panel, with USB 3.1 support 1 x USB 3.1 Type-A port (red) on the back panel |
| VGA | No |
| HDMI | Yes |
| DVI | No |
| Form Factor | ATX |
| Manufacturer | GigaByte |
| Color | Black |
