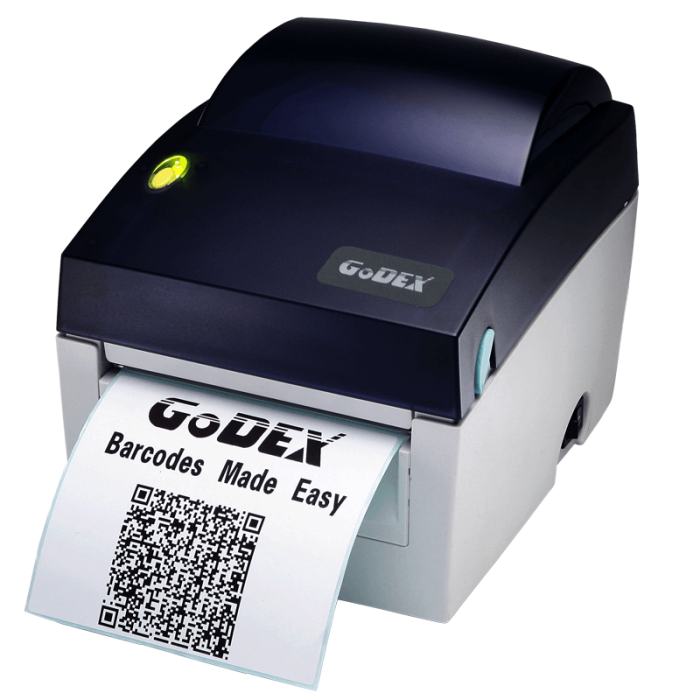

Godex DT4 Barcode Printer

Actual Stock Can Be Confirmed After Placing the Order.
SKU
DT4
AED 898 AED 855
Price Match Request
WhatsApp Facebook
Pay 4 interest-free payments of AED 421.00.Learn more

Simple, very compact and reliable barcode printer. Perfect for printing retail labels and tags, hospital and recreation wrist bands, plus other small, temporary labeling applications.

  • Simple and economical 4” direct thermal printer
  • Small space-saving design
  • Standard USB 2.0, serial port and Ethernet connections
  • Auto language emulations: EZPL, GEPL and GZPL
  • Free GoLabel / QLabel software with database function makes it easy to design
  • Options include: label dispenser and cutter

Print Method

Direct Thermal

Resolution

203 dpi (8 dots/mm)

Print Speed

4 IPS (102 mm/s)

Print Width

4.25” (108 mm)

Print Length

Min. 0.16” (4 mm)**; Max. 68” (1727 mm)

Processor

32 Bit RISC CPU

Memory

8MB Flash (4MB for user storage) / 16MB SDRAM

Sensor Type

Fixed, center aligned see-through sensor, adjustable reflective sensor

Media

Types: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming
Width: 1” (25.4 mm) Min. - 4.64” (118 mm) Max.
Thickness: 0.003” (0.06 mm) Min. - 0.008” (0.20 mm) Max.
Label roll diameter: Max. 5” (127 mm)
Core diameter: 1”, 1.5” (25.4 mm, 38.1 mm)

Printer Language

EZPL, GEPL, GZPL auto switch

Software

Label design software: QLabel-IV, GoLabel (for EZPL only)
Driver: Windows 2000, XP, Vista, 7,8, Windows Server 2003 & 2008
DLL: Windows 2000, XP and Vista

Resident Fonts

Bitmap fonts 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B
Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
Bitmap fonts 8 times expandable in horizontal and vertical directions
Scalable fonts 90°, 180°, 270° rotatable

Download Fonts

Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
Asian fonts 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions
Scalable fonts 90°, 180°, 270° rotatable

Barcodes

1-D Bar codes:
Code 39, Code 93, EAN 8 /13 (add on 2 & 5), UPC A/E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar
2-D Bar codes:
PDF417, Datamatrix code, MaxiCode, QR code, Micro PDF417, Micro QR code and Aztec code

Code Pages

CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737
WINDOWS 1250, 1251, 1252, 1253, 1254, 1255, 1257
Unicode (UTF8, UTF16)

Graphics

Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software

Interfaces

USB port
Serial port: RS-232 (DB-9)
Ethernet port

Control Panel

One Tri-color LED: Power (Green, Orange and Red)
Function Key: FEED

Real Time Clock

Standard

Power

Auto Switching 100-240VAC, 50-60Hz

Environment

Operation temperature: 41°F to 104°F (5°C to 40°C)
Storage temperature: -4°F to 122°F (-20°C to 50°C)

Humidity

Operation: 30-85%, non-condensing.
Storage: 10-90%, non-condensing.

Agency Approvals

CE(EMC), FCC Class A, CB, CCC

Dimension

Length: 8.58” (218 mm)
Height: 6.53” (166 mm)
Width: 6.61” (168 mm)

Weight

3.3 lbs (1.5Kg) ,excluding consumables

Options

Cutter Module
Label Dispenser
External label roll holder for 10” (250 mm) O.D. label rolls
External label rewinder



More Information
Product Name Godex DT4 Barcode Printer
Wireless No
Duplex No
Copier No
Color Printer No
Weight 1.50 Kg
Manufacturer Godex
