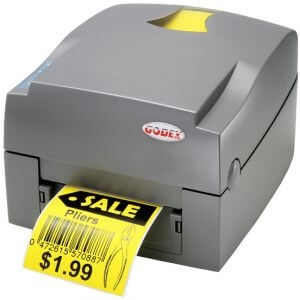

Godex EZ-1100 Barcode Printer

Actual Stock Can Be Confirmed After Placing the Order.
SKU
EZ-1100
AED 1,084 AED 1,032
Price Match Request
WhatsApp Facebook
Pay 4 interest-free payments of AED 421.00.Learn more

The Godex EZ1100 Plus barcode desktop thermal printer prints 203dpi labels in either thermal transfer for direct thermal modes at 2 to 4 inches per second. Features includes 4MB flash memory, adjustable reflective sensor which is center aligned and can handle labels on 1", 1.4" or 3" cores. Comes with QLable-IV application software. Optional stripper module (label peeler), label stand, cutter model and ethernet available.

Resolution
203dpi (8 dot/mm)

Print Mode
Thermal Transfer/ Direct Thermal

CPU
32 bit

Memory
4MB Flash, 8MB SDRAM

Print Speed
2 ips- 4 ips

Print Length
Min. 12mm (0.47")
Max 1727mm (68")

Print Width
108mm (4.25")

Sensor Type
Adjustable Reflective sensor; Fixed transmissive, center aligned

Sensor Detection

Type
Label gap and black mark sensing

Detection
L
abel length auto sensing and/or program command setting

Media

Label Roll OD
Max 125mm (4.92")

Core Diameter
1", 1.5", 3"

Width
25mm (1") to 118mm (4.64")

Thickness
0.06mm to 0.25mm (0.0025" to 0.0098")

Ribbon

Length
300M (981ft)

Max Ribbon Roll OD
68mm (2.67")

Ribbon Width
30mm to 110mm (1.88" to 4.33")

Coating
Outside only

Core Inner Diameter
25.4mm (1")

Printer Language
EZPL (Firmware downloadable)

Software

Application
QLabel-IV (EZPL only)

DLL & Driver
Microsoft Windows NT 4.0, 2000, XP and Vista

Resident Fonts
11 resident alphanumeric fonts (included OCR A & B), those are expandable 8 times horizontally and vertically. All bit mapped fonts in 8 orientations. Scalable font (Code Page 850 & 852) in 4 orientations.

Font Download
Windows bit mapped in 8 orientations. True Type font (ver.2.XX) and Asian fonts in 4 orientations

Image Handling
BMP, PCX, Support ICO, WMF, JPG, EMF file through software

Barcodes
Code 39, Code 93, Code 128 (subset A, B, C), UCC/EAN-128 K-Mart, UCC/EAN-128, UPC A/ E (add on 2 & 5), I 2 of 5, I 2 of 5 with Shipping Bearer Bars, EAN 8/13 (add on 2 & 5), Codabar, Post NET, EAN 128, DUN 14, MaxiCode, HIBC, Plessey, Random Weight, Telepen, FIM, China Postal Code, RPS 128, PDF 417, Datamatrix code & QR code

Interfaces

Serial Port
RS232 (Baud rate: 4800 to 115200, Xon/Xoff, DSR/ DTR)

USB Port
V2.0

Parallel Port
Bi-diretion

Control Panel

Two multiple-color LED lights
Ready, Status

Function Key
FEED

Power
Auto Switching 100/240 VAC, 50/60 Hz

Environment

Operation
40F to 104F (5C to 40C)

Storage
-4F to 122F (-20C to 50C)

Humidity

Operation
30 to 85%, non condensing, Free air

Storage
10 to 90%, non condensing, Free air

Cert. Approval
CE, FCC Class A, CCC, CB, cUL, BSMI

Printer Dimension

Length
285mm (11.2")

Height
171mm (6.8")

Width
226mm (8.9")

Weight
2.72 kg

Options
Rotary Cutter Module
Stripper Module
Compact Flash (CF) Card socket with Real Time Clock (RTC)
Internal Ethernet Adapter Card

Packing
USB cable, power cord, parallel cable, ribbon, ribbon shaft (1" core), empty ribbon core, label, label roll core, CD, Quick Start Guide, cleaning card.



More Information
Product Name Godex EZ-1100 Barcode Printer
Wireless No
Duplex No
Copier No
Color Printer No
Weight 1.23 Kg
