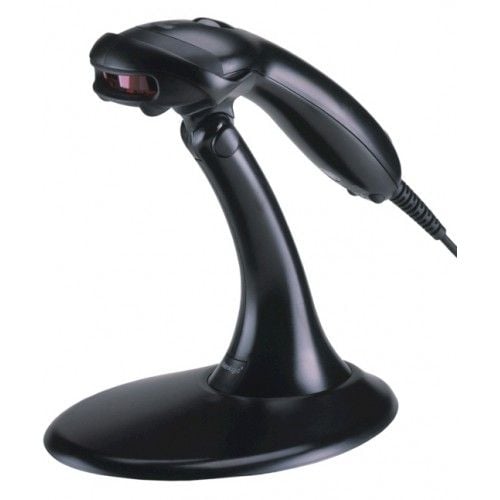

Honeywell MS9540 VoyagerCG Single Line Laser Scanner
Honeywell's Voyager™ 9520 and VoyagerCG™ 9540 handheld, single-line laser scanners feature patented automatic infrared activation and can decode all standard 1D barcodes, including GS1 DataBar™. The VoyagerCG handheld barcode scanner also includes CodeGate™ technology for menu scanning applications.
PRODUCT OVERVIEW
Honeywell's Voyager™ 9520 and VoyagerCG™ 9540 handheld, single-line laser scanners feature patented automatic infrared activation and can decode all standard 1D barcodes, including GS1 DataBar™. The VoyagerCG handheld barcode scanner also includes CodeGate™ technology for menu scanning applications.
Automatic Trigger
Use the scanner either as a handheld device or a fixed presentation scanner when mounted in the stand.
Easy-to-Use Aimer
High-visibility, 650 nm laser allows for quick and easy targeting.
CodeGate™ Equipped
Zero in on desired code and complete data transmission with the push of a single button – ideal for menu scanning applications (MS9540 only).
Flash ROM
Protects investment with free firmware updates via MetroSet™2 software and a standard PC.
| Product Name | Honeywell MS9540 VoyagerCG Single Line Laser Scanner |
|---|---|
| Weight | 0.45 Kg |
| Dimensions | 198 mm x 78 mm x 56 mm (7.8 in x 3.1 in x 2.2 in |
| Light Source | Visible Laser Diode 650 nm ± 10 nm |
| Power | 600 mW (120 mA @ 5 V) |
| Humidity | 5% to 95% relative humidity, non-condensing |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Scan Speed | 72 scan lines per second |
| Voltage | 5 VDC + 0.25 V |
| Manufacturer | Honeywell |
| Color | Black |
| Country of Origin | China |
