HPE ProLiant DL345 Gen10+ PS Server (Intel Xeon 7232P 3.1GHz 8-core 1P 32GB-R 8LFF 500W)
The HPE ProLiant DL345 Gen10 Plus server is redefining price/performance with the new math for virtualized compute. Powered by the latest AMD® EPYC® 7003 Series Processors, the HPE ProLiant DL345 Gen10 Plus server offers greater processing power, faster memory speeds up to 3200 MT/s. and increased data transfer rates with PCIe Gen4 capabilities.
PRODUCT OVERVIEW
HPE ProLiant DL345 Gen10 Plus server
The HPE ProLiant DL345 Gen10 Plus server is redefining price/performance with the new math for virtualized compute. Powered by the latest AMD® EPYC® 7003 Series Processors, the HPE ProLiant DL345 Gen10 Plus server offers greater processing power, faster memory speeds up to 3200 MT/s. and increased data transfer rates with PCIe Gen4 capabilities.
This 1P, 2U server has been designed with flexibility while delivering a high core count and large memory footprint. Choose this purpose-built platform for virtualization, High Performance Compute and memory centric workloads.

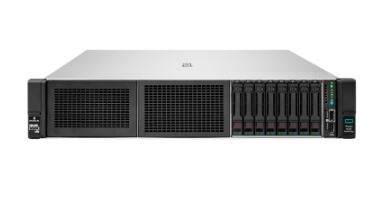

HPE ProLiant DL345 Gen10 Plus 8 SFF Server- Front View
- Quick removal access panel
- Power On/Standby button and system power LED button
- Health LED
- NIC status
- Unit ID button
- iLO front service port
- USB 3.1 Gen1
- Serial label pull tag
- Drive Bay 3. 8SFF SAS/SATA shown (Box 3)
- Drive Bay 2. Blank shown(Box 2)
- Drive Bay 1. Blank shown (Box 1)
HPE ProLiant DL345 Gen10 Plus server - Rear View
- Primary Riser.1
- Rear Drive Cage (2SFF SAS/SATA/NVMe optional)
- Secondary Riser.2
- Power supply power LED
- Power supply power connection
- HPE Flexible Slot Power Supply bay 1
- HPE Flexible Slot Power Supply bay 2
- Optional serial port (not shown)
- UID LED
- USB connectors 3.1 Gen1 (2)
- Dedicated iLO management port
- VGA Connector
- OCP 3.0 Slot
HPE ProLiant DL345 Gen10 Plus server - Internal View - 8SFF chassis
- DDR4 DIMM slots
- Optional HPE Flexible Smart Array Controller (Not shown)
- Hard drive backplane power connectors
- Chassis intrusion detection connector
- Hot Plug redundant HPE Flexible Slot Power supplies
- Connection for (optional) secondary riser
- (Under) Serial Port Connector
- Primary PCIe riser, standard
- (Under) OCP 3.0 Slot
- Internal USB 3.1 Gen1 connector
- Fan cage shown with 6 Performance Hot-plug fans
- Processor (heatsink shown)
What’s New
- Supports the latest AMD EPYC 7003 Series processor
- Support for Tri-mode storage controllers for SAS/SATA/NVMe drives
- New Basic Carrier SAS/SATA/NVMe drives.
- European Union (EU) Lot 9 regulation, please visit: https://www.hpe.com/us/en/about/environment/msds-specs-more.html for more information
| Product Name | HPE ProLiant DL345 Gen10+ PS Server (Intel Xeon 7232P 3.1GHz 8-core 1P 32GB-R 8LFF 500W) |
|---|---|
| Weight | 16.33 Kg |
| Manufacturer | HPE |
| Memory | 32 GB (1x 32 GB) RDIMMs |
| Storage | HPE Smart Array P408i-a SR Gen10 Controller |
| USB/DP | Yes |
| Management | HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, and HPE OneView Advanced (require licenses) |
| Warranty | Server Warranty includes three years of parts, three years of labor, and three years of on-site support coverage. Additional information regarding worldwide limited warranty and technical support is available at: http://h20564.www2.hpe.com/hpsc/wc/public/ |
