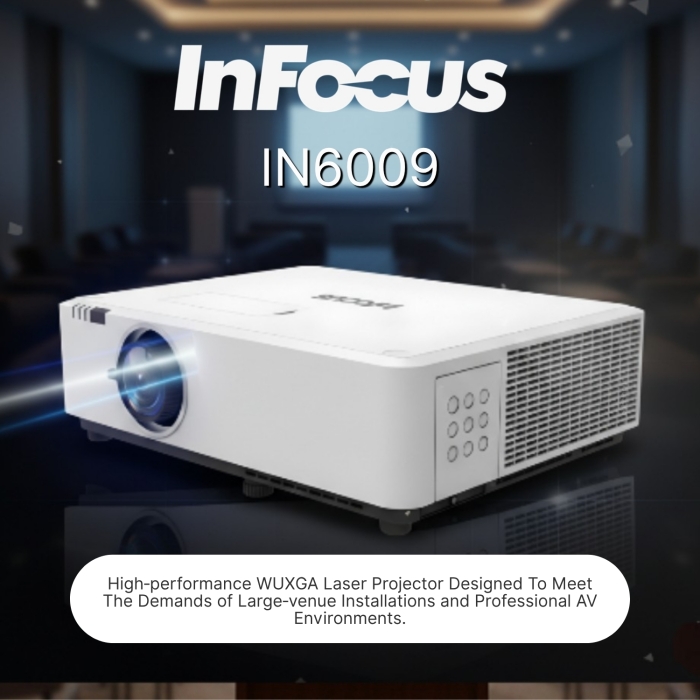

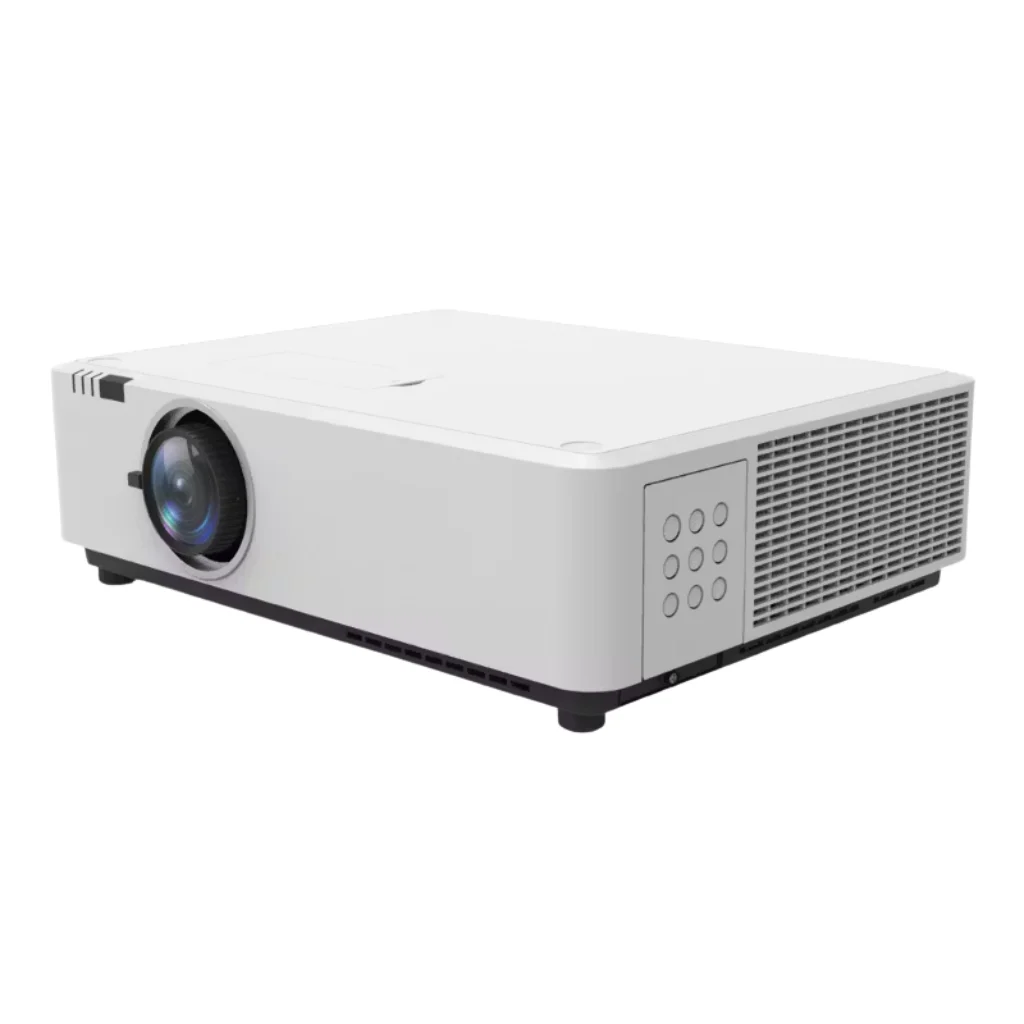

InFocus IN6009 8500 Lumen WUXGA DLP Projector (Optional Lens Select)

PRODUCT OVERVIEW

Professional‑Grade Laser Projector

The InFocus IN6009 is a high‑performance WUXGA laser projector designed to meet the demands of large‑venue installations and professional AV environments. Delivering up to 8,500 lumens of brightness, this projector ensures vibrant, readable imagery even in high‑ambient‑light conditions such as lecture halls, corporate conference spaces, auditoriums, and large training rooms. Built on reliable DLP technology and powered by a maintenance‑free Quantum Laser light engine, the IN6009 combines durability with consistent output over extended operation periods.

Key Visual and Installation Features

High‑Brightness and Deep Contrast

The IN6009 produces a luminous 8,500 ANSI lumens output, ensuring clear visibility across large screens and brightly lit venues. Complemented by a 5,000,000:1 dynamic contrast ratio, images display sharp detail with rich blacks and bright highlights, crucial for mixed multimedia content and dynamic presentations.

One of the standout strengths of this model is its installation flexibility:

• 360‑degree orientation allows the projector to be mounted on ceilings, walls, or even tilted surfaces without image quality loss.

• Lens shift and geometric correction features support precise alignment in complex setups.

• A range of optional lenses — including short‑throw and long‑throw variants — accommodates diverse room sizes and projection distances.

These capabilities reduce installation constraints and future‑proof the projector for reuse in different spaces.

Technical Specifications and Connectivity

The IN6009’s technical platform blends performance with broad integration options:

Display & Optics

• Projection Technology: DLP (Texas Instruments)

• Native Resolution: WUXGA (1920×1200), Aspect Ratio: 16:10

• Brightness: 8,500 lm, Contrast: 5,000,000:1

• Light Source: Quantum Laser, rated up to 30,000 hours of virtually maintenance‑free service

• Lens: No lens included; compatible with standard, short, and long‑throw options

• Lens Shift: Vertical +37%/−10%, Horizontal ±8%

• Digital Keystone & Geometric Correction supported

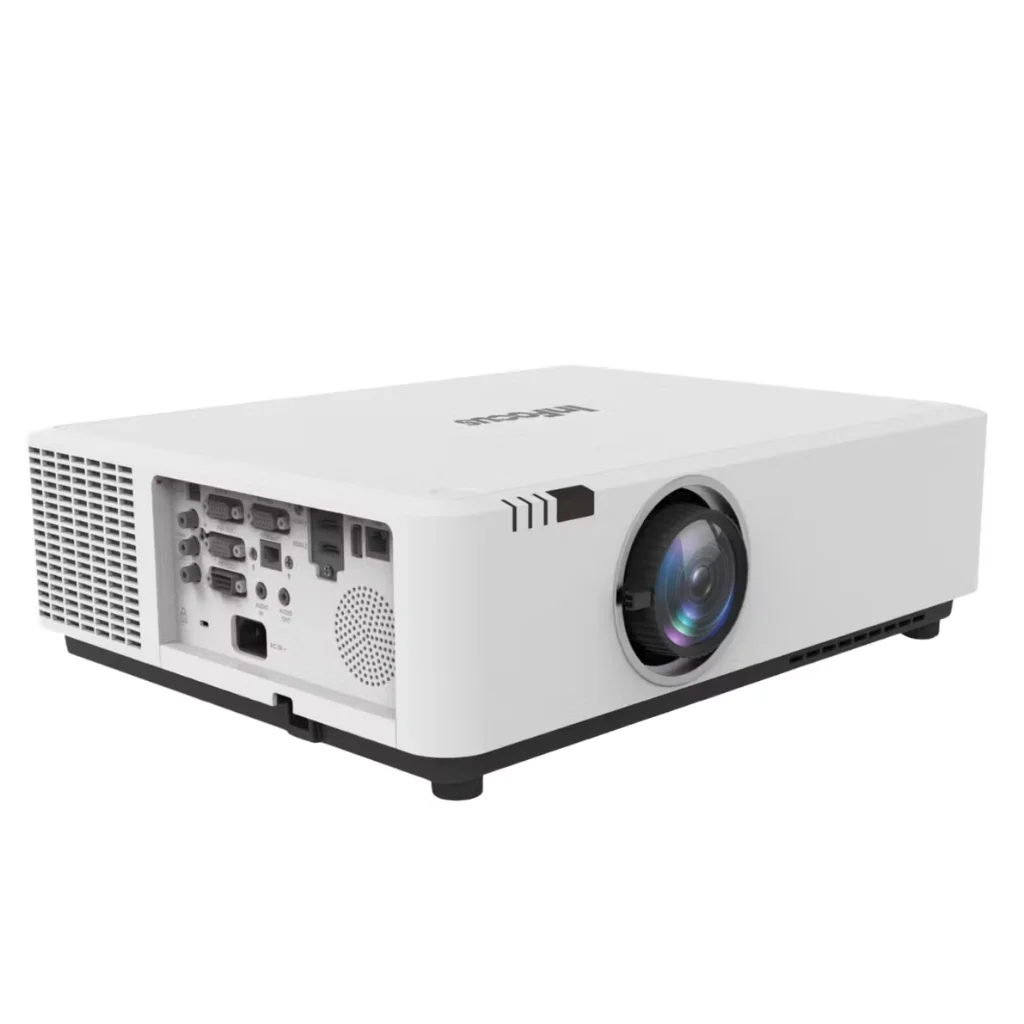

Audio & Connectivity

• Built‑in 10 W mono speaker

• Dual HDMI 1.4 inputs

• VGA (2×) input and VGA output

• RJ‑45 network control, RS‑232 control, USB support, composite video, and analog audio ports

• Comprehensive interfaces enable seamless integration into enterprise AV systems and network‑managed environments.

Physical and Operational

• Dimensions approx: 460 × 355 × 142.6 mm, ~10 kg

• Operating noise: ~39 dB (normal mode), 36 dB (eco mode)

• Power: 100–240 V universal input

• Operational temp: 0–40 °C, humidity tolerance up to 85%
