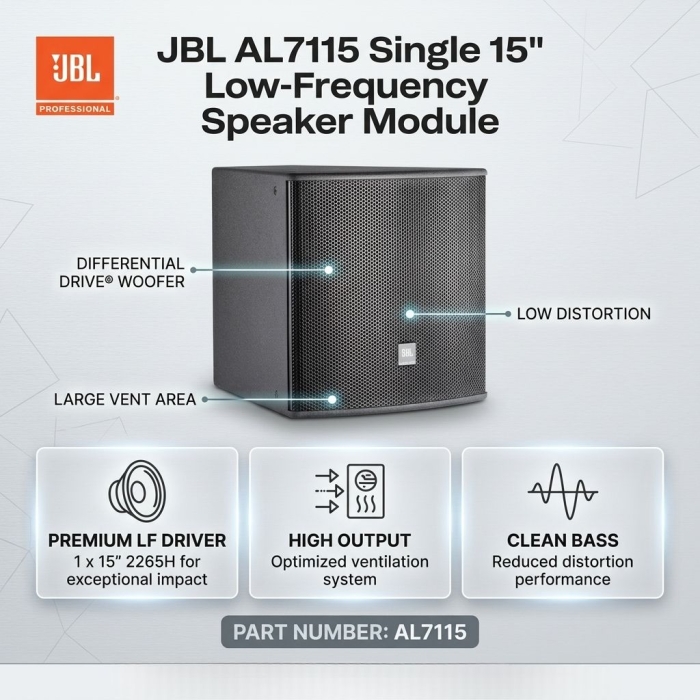

JBL AL7115 Single 15" Low-Frequency Speaker Module (Each)
Quick Overview
- 1 x 15" 2265H Differential Drive® Low- Frequency Driver.
- Large vent area for high output with low distortion.
- Arrays with various AE Series mid-high frequency and compact 2-way models (see AE Series Array Guide).
PRODUCT OVERVIEW
High Power 15-inch Low Frequency Loudspeaker
The black AL7115 Single 15" Low-Frequency Speaker Module from JBL is equipped with the patented JBL 2265 HPL Differential Drive 15" transducer, which features a differential drive, dual 3" voice coil, and dual magnetic gap transducer. The 1000-watt rated speaker is mounted in a front-loaded, vented configuration. The trapezoidal cabinet is fitted with M10 threaded suspension points for array flying and mounting, with pre-engineered array bracketry available as an option.
The AL7115 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of applications. It is designed to work with the AM7200 models in a low-profile array application where a full-range three-way system is desired. Complementing the AM7200/64 and AM7200/95, the AL7115 15" low-frequency speaker module, when utilizing the optionally purchased PAF-3K planar array frame kit, can be fitted between two AM7200 mid-high loudspeakers, creating a low-profile, three-wide array system.
|
|
|
Features
- 1 x 15" 2265H Differential Drive Low-Frequency Driver
- Large vent area for high output with low distortion
- Arrays with various AE Series mid-high frequency and compact 2-way models
Applications include:
- Performing arts facilities
- Theatrical sound design
- Auditoriums
- Houses of worship
- Live clubs
- Dance-clubs/discotheques
- Sports facilities
- Themed entertainment venues
| Product Name | JBL AL7115 Single 15" Low-Frequency Speaker Module (Each) |
|---|---|
| Weight | 25.900000 |
| Frequency Response | 47 Hz to 3.0 kHz |
| Frequency Range | 40 Hz to 4.2 kHz (-10 dB) |
| Power Capacity | 600 W (2400 W peak), 100 hours (IEC) |
| Maximum SPL | 50 Hz to 125 Hz: 127 dB-SPL cont. avg. (133 dB peak) 125 Hz to 800 Hz: 126 dB-SPL cont. avg. (132 dB peak) |
| Impedance | 8 ohms |
| Sensitivity (SPL / 1 W @ 1 m) | 97 dB125 |
| Enclosure | Trapezoidal with 15 degree side angles 5/8" (16 mm) exterior grade 11-ply Finnish birch plywood |
| Dimensions | 548 x 561 x 657 mm |
| Manufacturer | JBL |
| Color | Different Colors |
| Country of Origin | United States |
