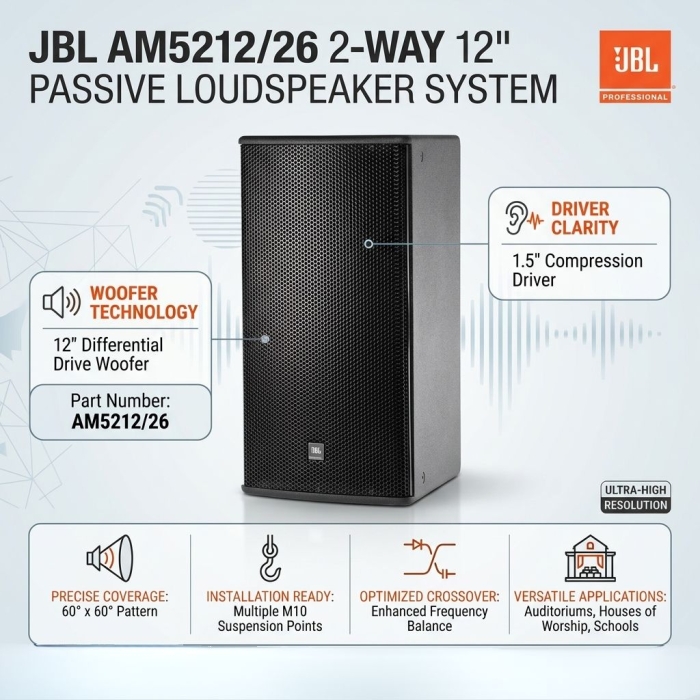

JBL AM5212/26 2-Way 12" Passive Loudspeaker System (Each)

PRODUCT OVERVIEW

12-inch 2-Way Loudspeaker with 120° x 60° Rotatable Horn

The JBL AM5212/26-WRX Extreme Weather-Resistant Speaker is a lightweight, 2-way medium-power loudspeaker system that features the JBL differential-drive dual voice coil and dual-magnetic gap 262H-1 12" low-frequency driver and the 2408H-1 high-frequency 1.5" exit, 1.5" voice-coil compression driver. A 120° x 60° coverage pattern is provided by the large-format PT-H126HF-1 progressive-transition waveguide, which rotates so that the loudspeaker system can be used in either vertical or horizontal orientation.

The heavily braced trapezoid birch enclosure has a DuraFlex finish and is constructed to maximize low-frequency performance. This speaker is part of JBL's AE Series, a versatile family of loudspeakers intended for a wide variety of applications, which include but are not limited to the following: performing arts facilities, theatrical sound design, auditoriums, worship facilities, live clubs, dance clubs, sports facilities, and themed entertainment venues.

Features

• 120° x 60° Coverage
• 262H-1 Differential Drive® Low-Frequency Driver
• 2408H-1 High-Frequency Compression Driver
• Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
• Rotatable waveguide for vertical or horizontal orientation
• Bi-Amp/Passive Switchable
• Bi-amp and Passive Mode FIR Tuning Set Delivers Optimized Frequency & Phase Response, Coverage Consistency, and Sound Quality
• Available in Black, white, and WRC/WRX weather-resistant finishes

Applications

• Performing Arts Facilities
• Theatrical Sound Design
• Auditoriums
• Worship Facilities
• Live Clubs
• Dance Clubs
• Sports Facilities
• Themed Entertainment Venues
