JBL AM7200/64-WRX High Power Mid-High Frequency
This Model Has Been Discontinued! Please call at +971-4-3360300, & Email Us for a Replacement Model.

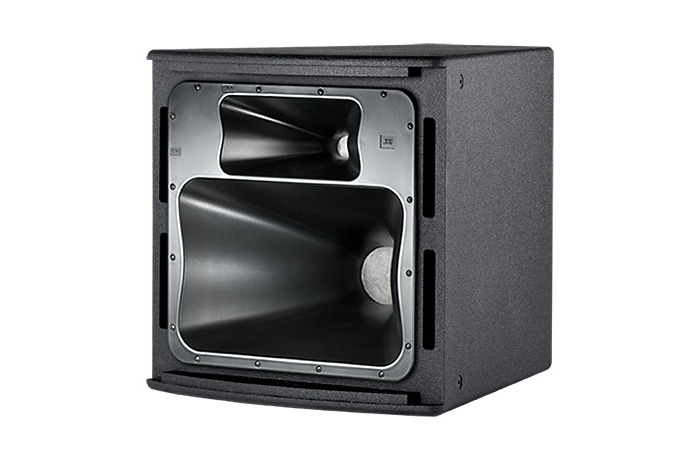

AM7200 speakers are high power mid-high frequency loudspeaker system comprised of one 200 mm (8 in) CMCD Cone Midrange Compression Driver and one 38 mm (1.5 in) exit/75 mm (3 in) voice-coil HF compression driver.
PRODUCT OVERVIEW
High Power Mid-High Frequency
AM7200 speakers are high power mid-high frequency loudspeaker system comprised of one 200 mm (8 in) CMCD Cone Midrange Compression Driver and one 38 mm (1.5 in) exit/75 mm (3 in) voice-coil HF compression driver. The multi-band PT Progressive Transition mid-high frequency waveguide provides well-controlled coverage and is rotatable for cabinet positioning in either horizontal or vertical orientation. High-slope crossovers minimize band overlap and well-controlled off-axis response enhances arrayability. The cabinet is fitted with M10 threaded suspension points. Preengineered array bracketry is available. AM7200 is part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.
Features
- CMCD™ Cone Midrange Compression Driver provides low midrange distortion, increased sensitivity, extended bandwidth and improved phase coherency.
- 2432H High-Frequency Compression Driver
- PT™ Progressive Transition Waveguide for excellent pattern control with low distortion.
- Bi-Amp/Passive Switchable.
Applications
- Performing arts facilities
- Theatrical sound design
- Auditoriums
- Houses of worship
- Live clubs
- Dance-clubs/discotheques
- Sports facilities
- Themed entertainment venues
- Voice-only PA (without LF or subwoofer reinforcement)
- Delay fill applications (without LF or subwoofer reinforcement)
| Product Name | JBL AM7200/64-WRX High Power Mid-High Frequency |
|---|---|
| Weight | 27.215542 |
| Color | Blue Pearl Fade Metallic Finish |
| Country of Origin | United States |
