PRODUCT OVERVIEW

High Power Mid-High Frequency

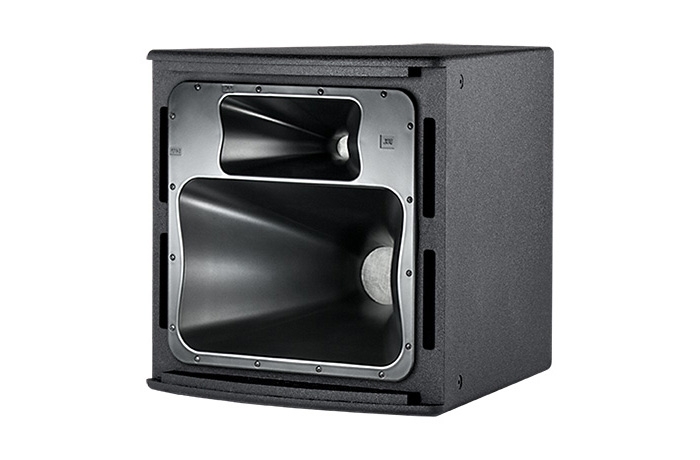

AM7200 speakers are high power mid-high frequency loudspeaker system comprised of one 200 mm (8 in) CMCD Cone Midrange Compression Driver and one 38 mm (1.5 in) exit/75 mm (3 in) voice-coil HF compression driver. The multi-band PT Progressive Transition mid-high frequency waveguide provides well-controlled coverage and is rotatable for cabinet positioning in either horizontal or vertical orientation. High-slope crossovers minimize band overlap and well-controlled off-axis response enhances arrayability. The cabinet is fitted with M10 threaded suspension points. Preengineered array bracketry is available. AM7200 is part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.

Features

• CMCD™ Cone Midrange Compression Driver provides low midrange distortion, increased sensitivity, extended bandwidth and improved phase coherency.
• 2432H High-Frequency Compression Driver
• PT™ Progressive Transition Waveguide for excellent pattern control with low distortion.
• Bi-Amp/Passive Switchable.

Applications

• Performing arts facilities
• Theatrical sound design
• Auditoriums
• Houses of worship
• Live clubs
• Dance-clubs/discotheques
• Sports facilities
• Themed entertainment venues
• Voice-only PA (without LF or subwoofer reinforcement)
• Delay fill applications (without LF or subwoofer reinforcement)
