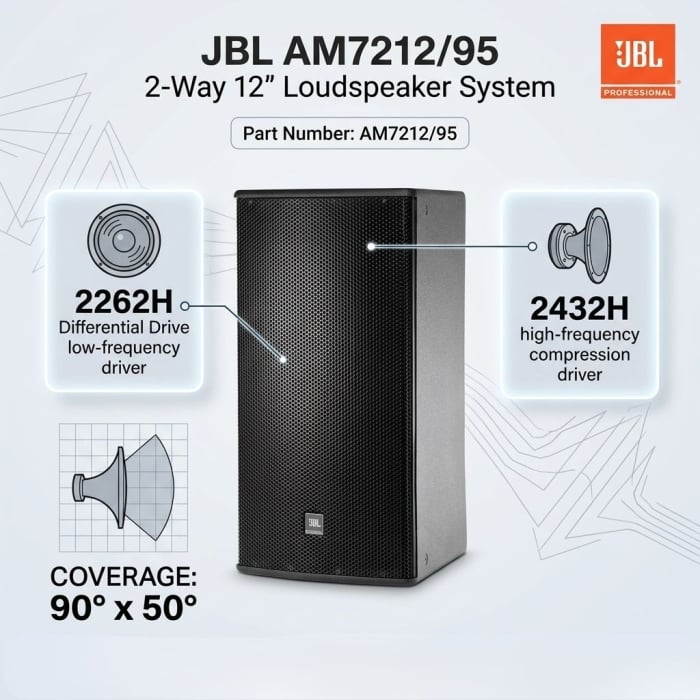

JBL AM7212/95 2-Way 12" Loudspeaker System Coverage 90° x 50° (Each)
Pay as low as per month in 4 equal installments interest free
Pay as low as per month in 4 equal installments interest free
We also accept
Quick Overview
- 2262H Differential Drive low-frequency driver
- 2432H high-frequency compression driver
- Large PT Progressive Transition waveguide for excellent pattern control and low distortion
- Rotatable waveguide for vertical or horizontal orientation
- Bi-amp/passive switchable
PRODUCT OVERVIEW
High Power 2-Way Loudspeaker with 1 x 12" LF & Rotatable Horn

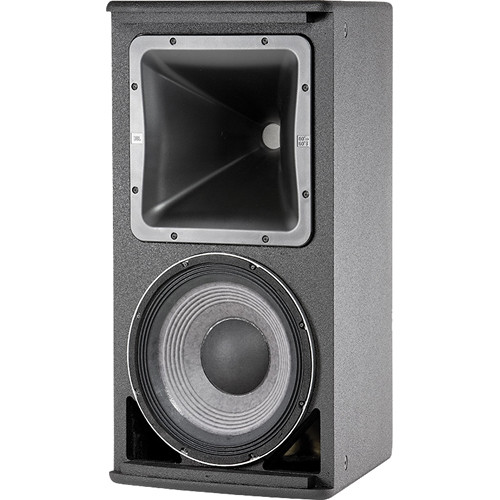

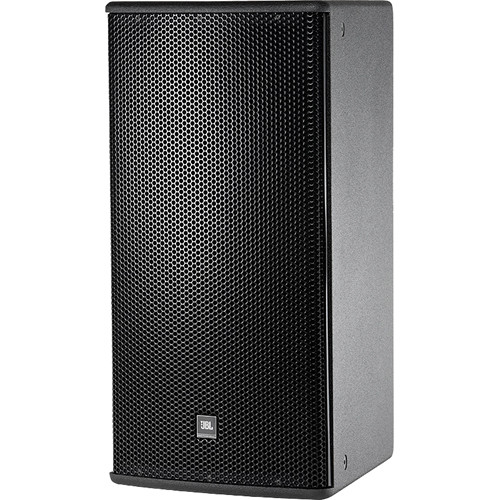

The AM7212/95 is a high-power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large-format Progressive Transition waveguide provides excellent coverage in a variety of patterns. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. A well-controlled off-axis response enhances playability.
|
|
|
Features
- 2262H Differential Drive® Low-Frequency Driver
- 2432H High-Frequency Compression Driver
- Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
- Rotatable waveguide for vertical or horizontal orientation
- Bi-Amp/Passive Switchable
- Available in Black, White, and WRC/WRX finishes
| Product Name | JBL AM7212/95 2-Way 12" Loudspeaker System Coverage 90° x 50° (Each) |
|---|---|
| Weight | 23.100000 |
| Frequency Response | 42 Hz – 18 kHz |
| Frequency Range | 36 Hz – 20 kHz |
| Power Capacity | Passive mode: 600 W (2400 W peak), 100 hrs |
| Maximum SPL | Passive mode: 123 dB-SPL cont avg (129 dB peak) |
| Impedance | 8 Ohms |
| Sensitivity (SPL / 1 W @ 1 m) | 95 dB SPL |
| Enclosure | Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood |
| Dimensions | 711 x 369 x 458 mm |
| Manufacturer | JBL |
| Color | Different Colors |
| Country of Origin | United States |
