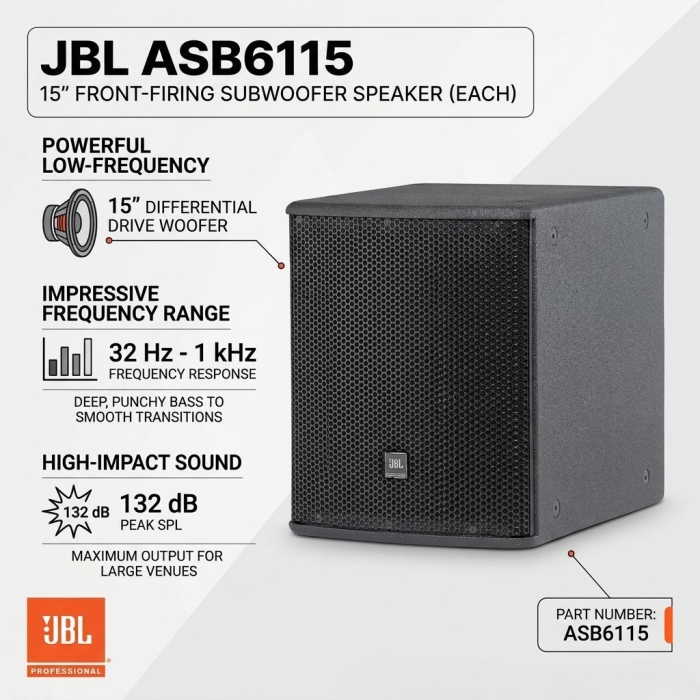

JBL ASB6115 15" Front Firing Subwoofer Speaker (Each)
Quick overview
- Front-Loaded and Vented Enclosure
- 15" Differential Drive Woofer
- 32 Hz to 1 kHz Frequency Range
- 132 dB Peak SPL
- 3200W Peak Power (800 Continuous)
- 14-Gauge Steel Grille
- Birch Plywood Construction
PRODUCT OVERVIEW

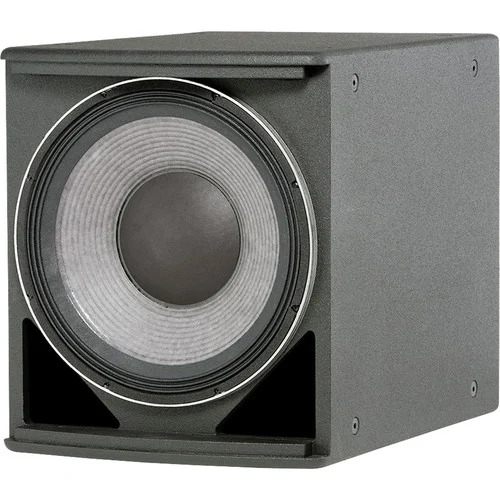

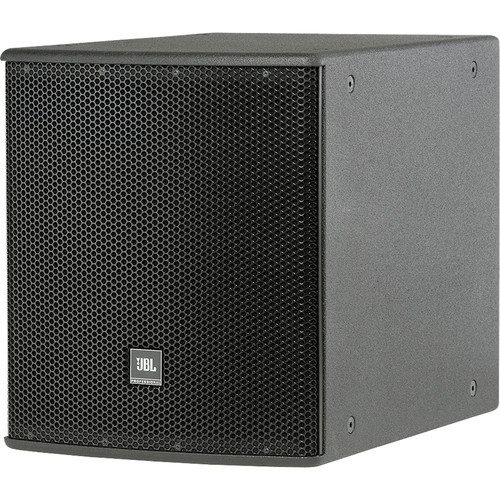

High-Power Single 15" Subwoofer
The JBL Professional ASB6115 is a professional-quality passive subwoofer, well suited for performing arts facilities, theatrical sound design, auditoriums, houses of worship, live sound venues, nightclubs, sports facilities, and theme parks. The lightweight, vented enclosure features a front-loaded 15" differential drive woofer with a dual voice coil and dual gap. With a powerful neodymium magnet and robust cone, the ASB6115 ensures a long life of optimum performance.
The subwoofer can utilize a 3200W (peak) amplifier to power the driver and offers a frequency range of 32 Hz to 1 kHz with a 132 dB peak SPL. The enclosure is made from 5/8" birch ply and finished with a tough, black DuraFlex coating and a 14-gauge steel grille, which is lined with acoustically transparent foam to protect the driver. There are 16 threaded M10 attachment points to provide versatile mounting options.
|
|
|
Features
- 2263H 12" Differential Drive® dual voice coil dual gap, neodymium magnet transducer
- 1000 watts continuous pink noise,
4000 watts peak power handling capacity - Large vent area for high output with low distortion
- For ground-stacked or suspended applications in stand-alone arrays or in combination with other
AE Series products
| Product Name | JBL ASB6115 15" Front Firing Subwoofer Speaker (Each) |
|---|---|
| Weight | 20.600000 |
| Frequency Response | 42 Hz - 1 kHz |
| Frequency Range | 32 Hz - 1 kHz |
| Power Capacity | 675 W (2700 W peak), 100 hrs. |
| Maximum SPL | 35 Hz - 400 Hz: 126 dB-SPL cont avg (132 dB peak) |
| Impedance | 8 ohms |
| Sensitivity (SPL / 1 W @ 1 m) | 35 Hz - 400 Hz: 97 dB-SPL, 1W (2.83V) @ 1m |
| Enclosure | Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood |
| Dimensions | 483 x 419 x 597 mm |
| Manufacturer | JBL |
| Color | Different Colors |
| Country of Origin | United States |
Product Datasheet
