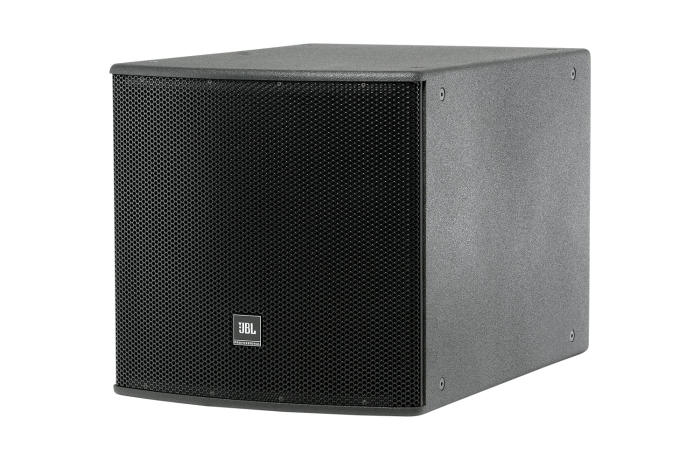

JBL ASB7118-WRC High Power Single Speaker (Each)
SKU
ASB7118-WRC
$6,569
$6,256
Limited Stock - Running Out Quickly
Pay as low as per month in 4 equal installments interest free
Pay as low as per month in 4 equal installments interest free
We also accept
The ASB7118 is a high power, lightweight front-loaded vented subwoofer enclosure housing JBL’s exclusive 2269H Ultra Long Excursion 18" Differential Drive® woofer.
PRODUCT OVERVIEW
Ultra Long Excursion High Power Single 18" Subwoofer
The ASB7118 is a high power, lightweight front-loaded vented subwoofer enclosure housing JBL’s exclusive 2269H Ultra Long Excursion 18" Differential Drive® woofer. This woofer features neodymium magnet, dual voice coils and dual gaps, JBL’s exclusive Vented Gap Cooling™ and ultra robust composite cone for high excursion and extra long life. Woofer is capable of a peak-to-peak maximum excursion of 89 mm (3.5").
Features
- 2269H 18" Differential Drive® dual voice coil dual gap, neodymium magnet transducer
- 2000 watts continuous pink noise,
8000 watts peak power handling capacity - Ultra Long Excursion
- Large vent area for high output with low distortion
- For ground-stacked or suspended applications in stand-alone arrays or in combination with other
AE Series products
| Product Name | JBL ASB7118-WRC High Power Single Speaker (Each) |
|---|---|
| Weight | 42.900000 |
| Frequency Response | 34 Hz - 1 kHz |
| Frequency Range | 22 Hz - 1 kHz |
| Power Capacity | 1200 W (4800 W peak), 100 hrs. |
| Maximum SPL | 25 Hz - 200 Hz: 129 dB-SPL cont avg (135 dB peak) |
| Impedance | 8 ohms |
| Sensitivity (SPL / 1 W @ 1 m) | 25 Hz - 200 Hz: 96 dB-SPL, 1W (2.83V) @ 1m |
| Enclosure | Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood |
| Mounting | 16 points (4 top, 4 bottom, 4 each side) M10 threaded hardware |
| Dimensions | 546 x 560 x 815 mm(21.5 x 22.0 x 32.1 in) |
| Manufacturer | JBL |
| Color | Black |
| Country of Origin | United States |
