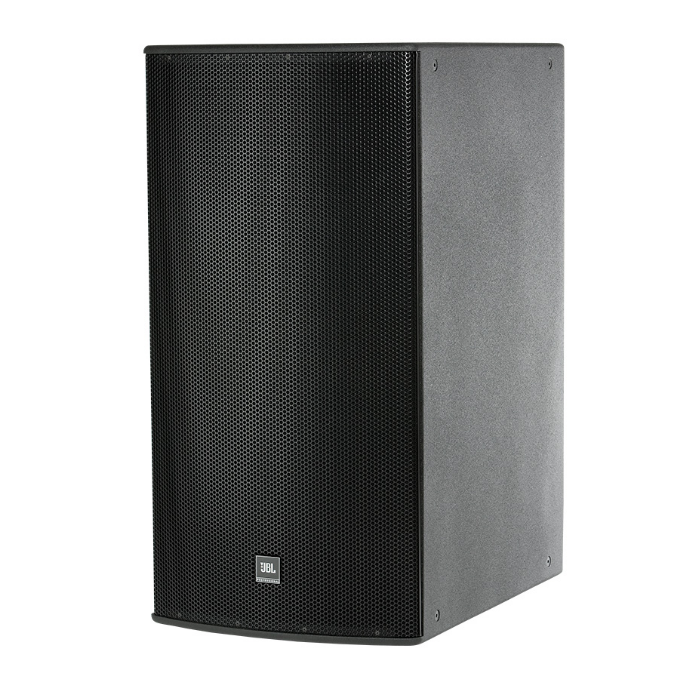

JBL ASB7128-WRX Ultra Long Excursion High Power Dual 18 Speaker (Each)
SKU
ASB7128-WRX
$13,247
$12,616
Limited Stock - Running Out Quickly
Pay as low as per month in 4 equal installments interest free
Pay as low as per month in 4 equal installments interest free
We also accept
The ASB7128 is a high power, lightweight front-loaded vented subwoofer enclosure housing two of JBL's exclusive 2269H Ultra Long Excursion 18" Differential Drive® woofers.
PRODUCT OVERVIEW
Ultra Long Excursion High Power Dual 18" Subwoofer
The ASB7128 is a high power, lightweight front-loaded vented subwoofer enclosure housing two of JBL's exclusive 2269H Ultra Long Excursion 18" Differential Drive® woofers. This woofer features neodymium magnet, dual voice coils and dual gaps, JBL’s exclusive Vented Gap Cooling™ and ultra robust composite cone for high excursion and extra long life. Woofer is capable of a peak-to-peak maximum excursion of 89 mm (3.5").
Features
- 2 x 2269H 18" Differential Drive® dual voice coil dual gap, neodymium magnet transducers
- 4000 watts continuous pink noise,
16000 watts peak power handling capacity - Ultra Long Excursion
- Large vent area for high output with low distortion
- Parallel/Discrete switchable input mode
- For ground-stacked or suspended applications in stand-alone arrays or in combination with other
AE Series products
| Product Name | JBL ASB7128-WRX Ultra Long Excursion High Power Dual 18 Speaker (Each) |
|---|---|
| Weight | 71.900000 |
| Frequency Response | 25 Hz - 1 kHz |
| Frequency Range | 20 Hz - 1 kHz |
| Power Capacity | 2400 W (9600 W peak), 100 hrs. |
| Maximum SPL | 25 Hz - 200 Hz: 135 dB-SPL cont avg. (141 dB peak) |
| Impedance | 4 ohms in parallel-drive mode 2 x 8 ohms in discrete-drive mode |
| Sensitivity (SPL / 1 W @ 1 m) | 25 Hz - 200 Hz: 99 dB-SPL, 1W (2.0V) @ 1m |
| Enclosure | Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood |
| Mounting | 16 points (4 top, 4 bottom, 4 each side) M10 threaded hardware |
| Dimensions | 1092 x 560 x 815 mm(43.0 x 22.0 x 32.1 in) |
| Manufacturer | JBL |
| Color | Black |
| Country of Origin | United States |
Write Your Own Review
Product Datasheet
