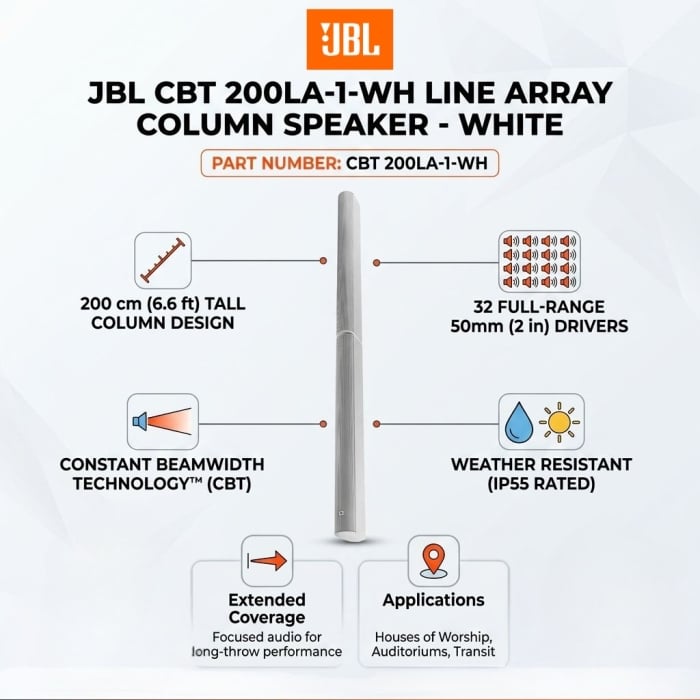

JBL CBT 200LA-1-WH Line Array Column Speaker - White (Each)
Quick Overview
- Constant Beamwidth Technology for uniform sound coverage
- 200cm tall column design for long-throw audio performance
- High speech intelligibility in large and reverberant spaces
- Switchable vertical beam control for flexible installation tuning
- Heavy-duty installation-grade construction for permanent use
PRODUCT OVERVIEW
JBL CBT 200LA-1 Line Array Column Speaker
The black CBT 200LA-1 Line Array Column Speaker from JBL uses JBL Constant Beamwidth Technology designed to provide true wide-band constant directivity coverage up to the highest frequencies and reduce out-of-coverage lobing. The speaker's assembly consists of a top and a bottom module that, when bolted together end-to-end, form a 32-driver array that is 6.6' (200 cm) tall. The speaker can be used for facilities requiring especially long throw or pattern control down to very low frequencies.
|
|
|
The adjustable coverage capability enables the vertical coverage to be switched independently for each of the speaker modules, allowing for higher sound levels to be directed towards far areas of the listening area, leveling out the sound pressure level differences from front to back within the listening space. The adjustable voicing switch can be toggled between music and speech settings depending on who or what is being projected to further enhance and complement the sound.
Features
- Patent-pending Constant Beamwidth Technology™ provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
- Vertical pattern coverage switchable between 40° for medium-throw coverage and 15° for
long-throw applications. - Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
- Dynamic SonicGuard™ overload protection
- Swivel (pan)/tilt wall bracket included.
- Built-in 70V/100V transformer, plus 8-ohm direct capability.
| Product Name | JBL CBT 200LA-1-WH Line Array Column Speaker - White (Each) |
|---|---|
| Weight | 7.200000 |
| Frequency Response | 130 Hz – 18 kHz (narrow coverage, music mode setting) |
| Frequency Range | 80 Hz – 20 kHz |
| Power Capacity | 650W (2600W peak), 2 hrs 400W (1600W peak) 100 hrs |
| Maximum SPL | Asymmetrical Progressive-Gradient Mode (music): 119 dB, 125 dB peak |
| Impedance | 8 ohms |
| Sensitivity (SPL / 1 W @ 1 m) | Narrow, (speech mode): 95 dB (2 kHz – 5 kHz)(music mode): 92 dB (150 Hz – 18 kHz). |
| Enclosure | Fiberglass reinforced ABS cabinet, painted aluminum grille |
| Mounting | Included swivel (pan) / tilt wall bracket (must be mounted to threaded points on Coupler Plate) provides continuously variable ±80° left-right swivel aiming (at up to ±5° up/down tilt) |
| Dimensions | 2000 x 98.5 x 153 mm (78.8 x 3.8 x 6.0 in) |
| Manufacturer | JBL |
| Color | White |
| Country of Origin | United States |
Product Datasheet
