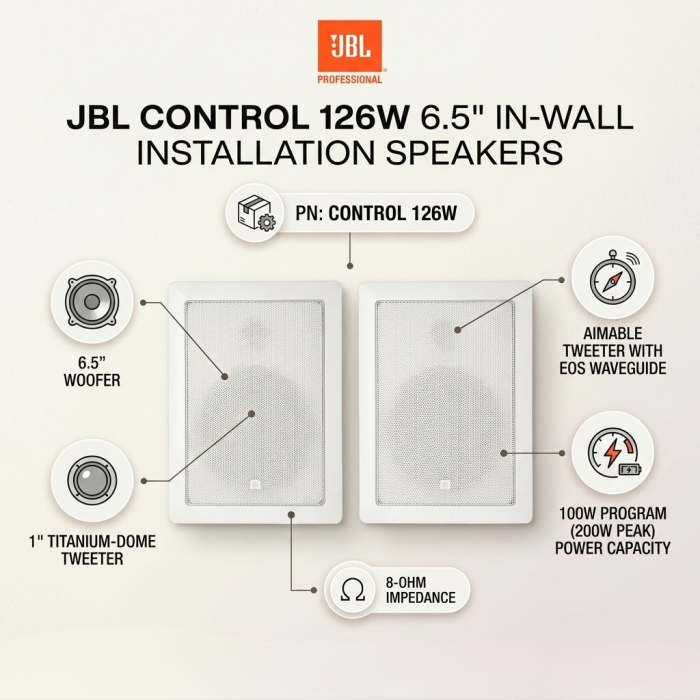

JBL Control 126W 6.5" 2-Way 100W In-Wall 8-Ohm Installation Speakers (Each)
Quick Overview
- 6.5" Woofer, 1" Titanium-Dome Tweeter
- Aimable Tweeter with EOS Waveguide
- 100W Program (200W Peak) Power Capacity
- For 8-Ohm Power Amplifiers
- 38 Hz to 20 kHz Frequency Range
PRODUCT OVERVIEW
Premium In-Wall Loudspeaker
The Control 126W is a premium in-wall speaker within the JBL Professional Control® Contractor line designed for applications such as foreground music, boardrooms, reception areas, airports, convention centers, cruise ships, retail outlets, restaurants, museums, surround locations, or any critical listening application where top performance from a loudspeaker with minimal visual impact is required.
The built-in EOS waveguide minimizes distortion and harshness, while the high-slope crossover network ensures natural midrange tonality and proper frequency distribution to the speaker components. A screw-down Euroblock input, cutout template, and paint shield contribute to easy installation.
|
|
|
Features
- Components:
165 mm (6.5 in) polymer-coated aluminum-cone woofer with pure butyl rubber surround.
A 25 mm (1 in) pure-titanium dome low-diffraction amiable titanium tweeter. - High-slope crossover for natural midrange sound.
- Extended bandwidth performance of 38 Hz – 20 kHz.
- 50 W continuous (100 W program, 200 W peak) power handling (126 W).
| Product Name | JBL Control 126W 6.5" 2-Way 100W In-Wall 8-Ohm Installation Speakers (Each) |
|---|---|
| Weight | 2.100000 |
| Frequency Response | 62Hz - 16 kHz |
| Frequency Range | 45 Hz to 20 kHz |
| Power Capacity | For 2 Hours: 240 W Program 120 W RMS |
| Maximum SPL | 118 dB SPL (Peak) |
| Impedance | 8 Ohms (Nominal) |
| Sensitivity (SPL / 1 W @ 1 m) | 88 dB SPL |
| Enclosure | High Impact Polystyrene (HIPS) with 10% glass fill, painted with highly-UV resistant paint on white (-WH) version for maximum UV fade resistance. |
| Mounting | Wall Mount |
| Dimensions | 386 x 282 x 219 mm (15.2 x 11.1 x 8.6 in); 277 mm (10.9 in) deep total when mounted on InvisiBall wall-mount bracket. *In vertical orientation |
| Manufacturer | JBL |
| Color | White |
| Country of Origin | United States |
Product Datasheet
