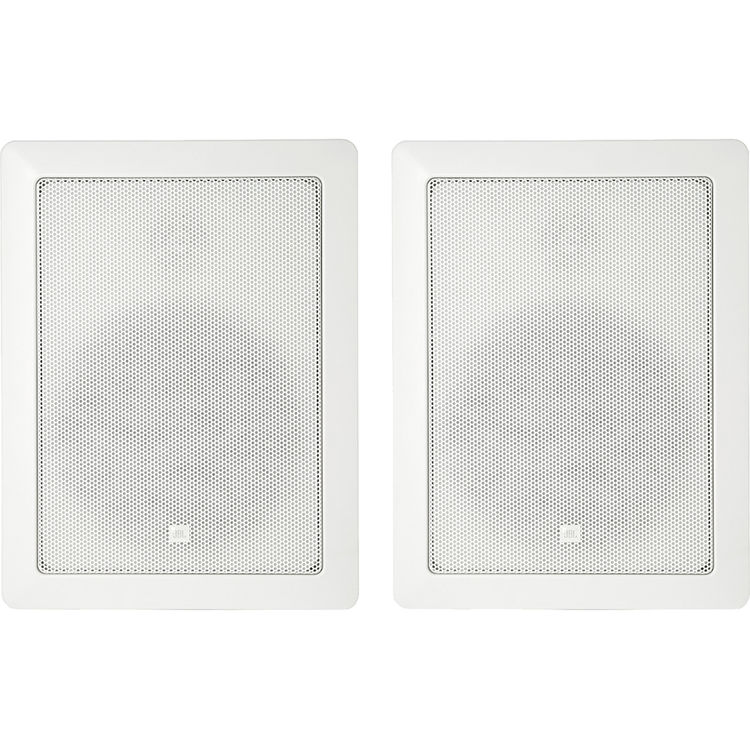

JBL Control 126WT 6.5" 2-Way 100W In-Wall Installation Speakers (Each)
Quick Overview

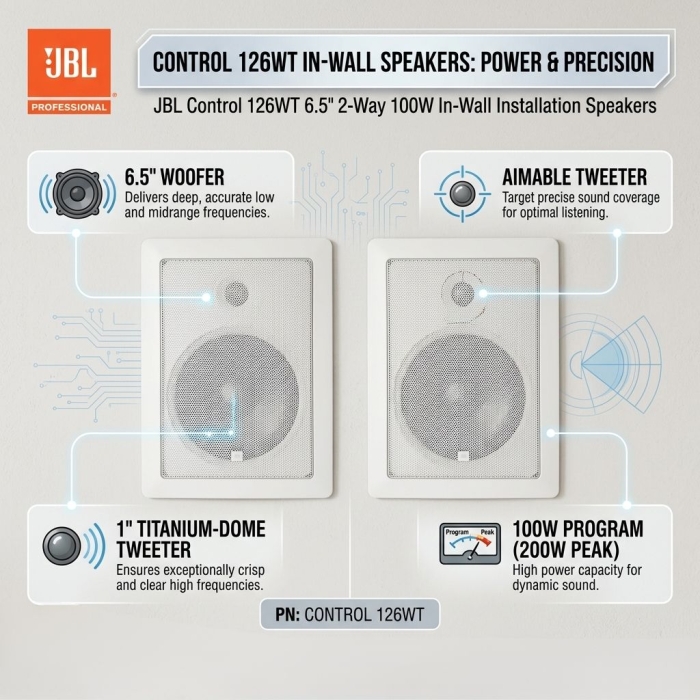

- 6.5" Woofer, 1" Titanium-Dome Tweeter
- Aimable Tweeter with EOS Waveguide
- 100W Program (200W Peak) Power Capacity
- For 70V/100V Power Amplifiers
- Multi-Tap Transformer
- 38 Hz to 20 kHz Frequency Range
- High-Slope Crossover Network
PRODUCT OVERVIEW
Premium In-Wall Loudspeaker
Sold as a pair, the white JBL Control 126WT is a passive 6.5" in-wall installation speaker with a multi-tap transformer designed for voice amplification and foreground music reproduction in a variety of venues, ranging from boardrooms to bistros. When driven by 70V/100V power amplifiers (available separately), these 2-way speakers provide a program power capacity of 100W (200W peak). Each Control 126WT is equipped with a durable 6.5" aluminum-cone woofer and an aimable 1" titanium-dome tweeter, yielding an extended frequency range of 38 Hz to 20 kHz.

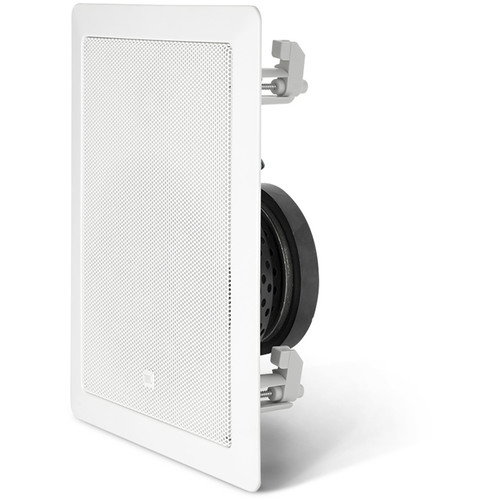

The built-in EOS waveguide minimizes distortion and harshness, while the high-slope crossover network ensures natural midrange tonality and proper frequency distribution to the speaker components. A screw-down Euroblock input, cutout template, and paint shield contribute to easy installation.
|
|
|
Features
- Components:

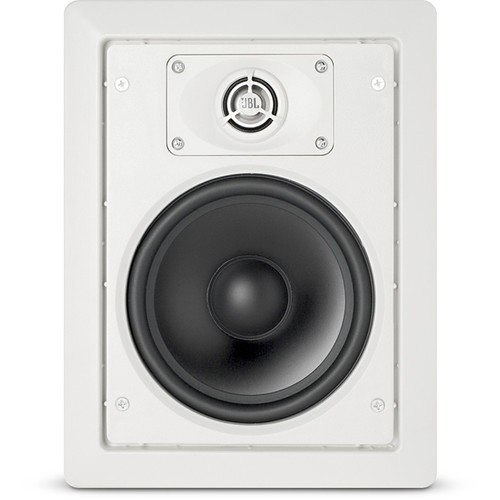

165 mm (6.5 in) polymer-coated aluminum-cone woofer with pure butyl rubber surround.
A 25 mm (1 in) pure-titanium dome low-diffraction amiable titanium tweeter. - High-slope crossover for natural midrange sound.
- Extended bandwidth performance of 38 Hz – 20 kHz.
- 50 W continuous (100 W program, 200 W peak) power handling (126 W).
| Product Name | JBL Control 126WT 6.5" 2-Way 100W In-Wall Installation Speakers (Each) |
|---|---|
| Weight | 2.700000 |
| Frequency Response | 38-20,000 Hz |
| Frequency Range | 38 Hz - 20 kHz (-10 dB) |
| Power Capacity | 200 W Peak 100 W Continuous Program Power50 W Continuous Pink Noise |
| Maximum SPL | 88dB SP |
| Impedance | 8 Ohms (Nominal) |
| Sensitivity (SPL / 1 W @ 1 m) | 88 dB SPL |
| Enclosure | High Impact Polystyrene (HIPS) with 10% glass fill, painted with highly-UV resistant paint on white (-WH) version for maximum UV fade resistance. |
| Dimensions | 280 x 215 x 105 mm (11 x 8.5 x 4.1 in), 99 mm (3.8 in) front of wall to back of speaker. |
| Manufacturer | JBL |
| Color | White |
| Country of Origin | United States |
Product Datasheet
