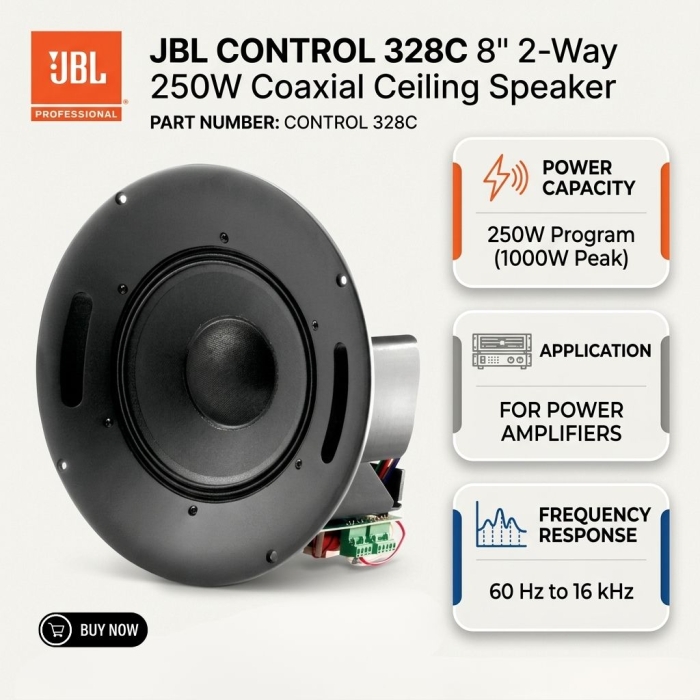

JBL Control 328C 8" 2-Way 250W Coaxial Ceiling Speaker (Each)
Quick Overview
- 8" Woofer with Kevlar-Reinforced Cone
- High-Frequency Compression Driver
- 250W Program (1000W Peak) Power Capacity
- For Power Amplifiers
- 60 Hz to 16 kHz Frequency Response
PRODUCT OVERVIEW
8" Coaxial Ceiling Loudspeaker with HF Compression Driver
The JBL Control 328C is a passive 8" coaxial ceiling speaker designed for voice amplification and foreground music reproduction in waiting rooms, offices, retail stores, and restaurants. When driven by an 8-Ohm power amplifier (available separately), this 2-way speaker provides a long-term power capacity of 250W (1000W peak). The Control 328C is equipped with a durable 8" Kevlar-reinforced cone and a titanium-diaphragm compression driver, yielding an extended frequency response of 60 Hz to 16 kHz.
The cone and pre-attached baffle serve as a high-frequency waveguide, which results in reliable 120° broadband coverage, while the built-in crossover network ensures proper frequency distribution to the speaker components. A removable locking connector with screw-down terminals ensures simple wiring for the input and loop output.
|
|
|
Features
- Consistent 120° broadband pattern control covers an extremely large area.

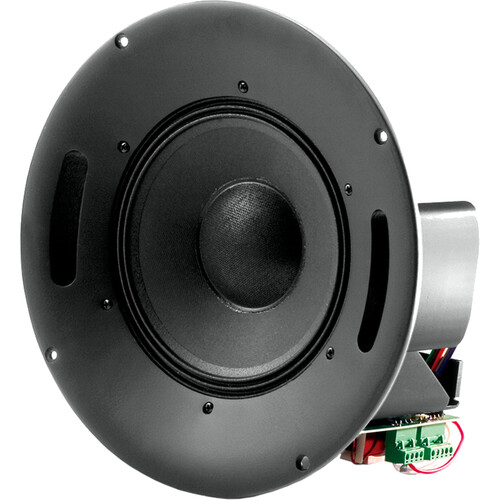

- A shaped mounting baffle provides the pattern control of a 300 mm (12 in) horn from a 200 mm (8 in) driver.
- Components
• 200 mm (8 in) woofer with Kevlar-reinforced cone and 50 mm (2 in) voice coil.
• 25 mm (1" exit) compression driver. - Extraordinary clarity for speech and vocals with extended frequency response for music.
- 250 Watt power handling with very high sensitivity provides high SPL capability.

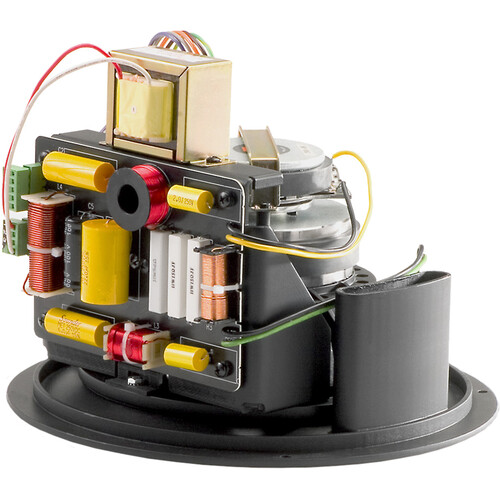

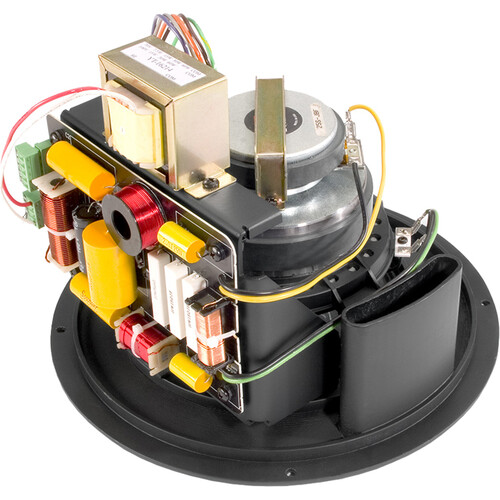

- Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
- Clean, contemporary grille and optional backbox available.
| Product Name | JBL Control 328C 8" 2-Way 250W Coaxial Ceiling Speaker (Each) |
|---|---|
| Weight | 4.500000 |
| Frequency Response | 60 Hz – 16 kHz |
| Frequency Range | 45 Hz – 18 kHz |
| Power Capacity | For 2 Hours: 250 W (1000 W Peak) For 100 Hours: 150 W (600 W Peak) |
| Maximum SPL | 118 dB Continuous Average (124 dB Peak) |
| Impedance | 8 Ohms |
| Sensitivity (SPL / 1 W @ 1 m) | 93 dB (1 kHz - 16 kHz) |
| Mounting | Coaxial, Ceiling Mount |
| Dimensions | 305 mm (12.0 in) diameter round baffle x depth from back of baffle of 160 mm (6.3in) on 328C & 218 mm (8.6 in) on 328CT |
| Manufacturer | JBL |
| Color | Black |
| Country of Origin | United States |
