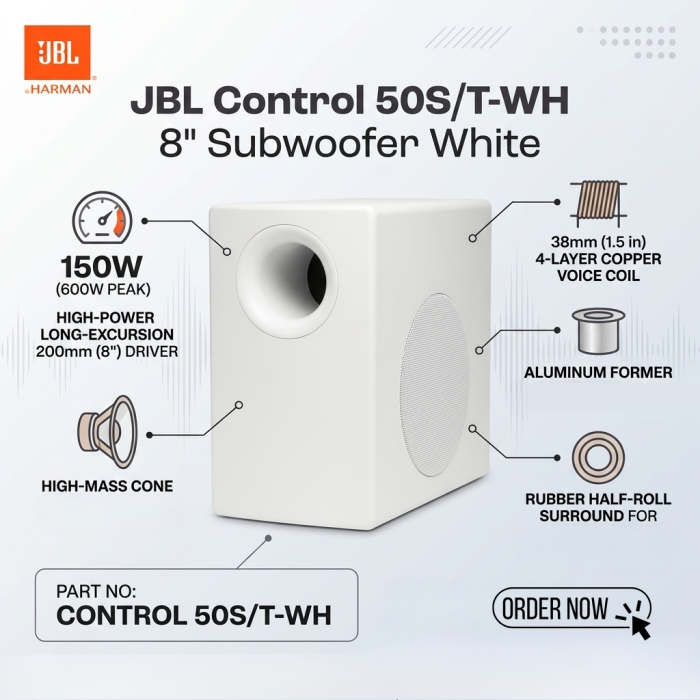

JBL Control 50S/T-WH 8" Subwoofer White (each)
The 150 Watt (600 Watt peak) Control 50S/T subwoofer contains a high-power, long-excursion, 200 mm (8 inch) driver which features an extremely robust high-mass cone for extended low-frequency response, a 38 mm (1.5 in) 4-layer copper voice coil for high motor strength, an aluminum former for good transient response, and a rubber half-roll surround for enhanced bass performance.
PRODUCT OVERVIEW
Surface-Mount Subwoofer for Subwoofer-Satellite Loudspeaker System
The 150 Watt (600 Watt peak) Control 50S/T subwoofer contains a high-power, long-excursion, 200 mm (8 inch) driver which features an extremely robust high-mass cone for extended low-frequency response, a 38 mm (1.5 in) 4-layer copper voice coil for high motor strength, an aluminum former for good transient response, and a rubber half-roll surround for enhanced bass performance.
Features
- Full bandwidth 32 Hz – 20 kHz high fidelity sound
- Selectable 70V/100V for distributed lines, or low impedance
- Versatility for either two or four satellite speakers per system
- Available in black or white
| Product Name | JBL Control 50S/T-WH 8" Subwoofer White (each) |
|---|---|
| Weight | 9.000000 |
| Frequency Response | 50 Hz – 150 Hz |
| Frequency Range | 32 Hz – 200 Hz |
| Power Capacity | 300 Watts Continuous Program Power (2 hrs)150 Watts Continuous Pink Noise (2 hrs)200 Watts Continuous Program Power (100 hrs)100 Watts Continuous Pink Noise (100 hrs) |
| Maximum SPL | 115 dB average, 121 dB peak (near corner)109 dB average, 115 dB peak (center of wall) |
| Impedance | 8 ohms (in bypass/thru mode) |
| Sensitivity (SPL / 1 W @ 1 m) | 95 dB |
| Enclosure | Top, bottom, front & bottom: Structural plywood. Port & terminal panels: MDF. Grille: Painted zinc-plated metal. |
| Dimensions | 14 x 15.4 x 8" (356 x 391 x 203mm) |
| Manufacturer | JBL |
| Color | White |
| Country of Origin | United States |
Product Datasheet
