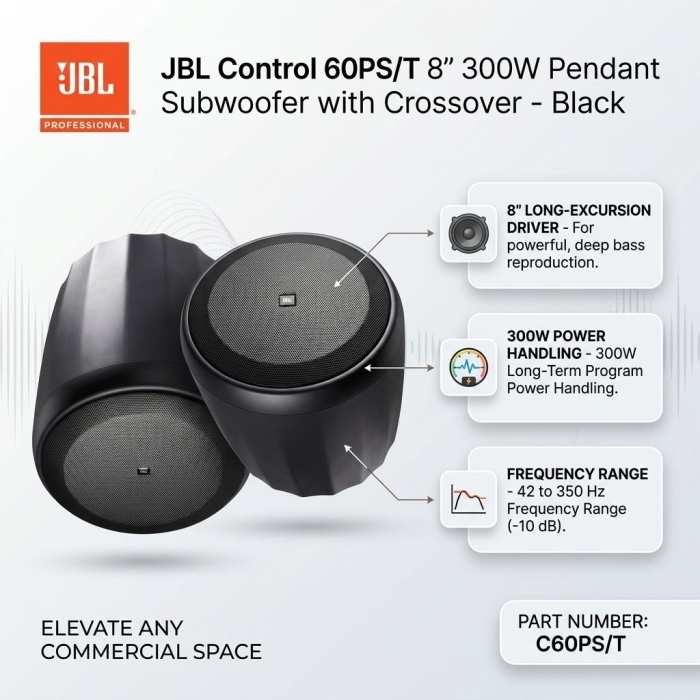

JBL Control 60PS/T 8" 300W Pendant Subwoofer with Crossover - Black (Each)
Quick Overview
- 8" Long-Excursion Driver
- 300W Long-Term Program Power Handling
- 42 to 350 Hz Frequency Range (-10 dB)
- Passive Crossover for 4 Satellites
- Integrated 110W Multi-Tap Transformer
PRODUCT OVERVIEW
Pendant Subwoofer with Crossover
The Control 60PS/T pendant subwoofer loudspeaker provides bass extension and high impact for high-fidelity sound systems in a wide variety of applications including restaurants, retail stores, music cafes, health clubs, theme bars, leisure venues, and other locations where full-range high fidelity foreground/background music systems are utilized. Featuring 150 Watt power handling and low distortion, the long-excursion 200 mm (8 in) low-frequency driver features butyl rubber surround for well-damped, tight sound quality and long-term reliability, and a polypropylene-coated cone for humidity protection. The high-temperature 50 mm (2 in) voice coil and low-mass fiberglass coil former ensure good bass transient response and excellent stability under high power, high duty cycle, working conditions.
|
|
|
Features
- High impact, 150 Watt direct-radiating pendant subwoofer with built-in passive crossover for up to four satellite speakers.
- 200 mm (8 in) long-excursion driver.
- 8 ohm (150 Watt) and 70V/100V (100 Watt) operation.
- Hanging hardware with 4.5 m (15 foot) galvanized steel cable and easy to adjust the clamp.
- Stylish design, available in black or white (-WH).
- UL listed (speaker and hanging cable system).
| Product Name | JBL Control 60PS/T 8" 300W Pendant Subwoofer with Crossover - Black (Each) |
|---|---|
| Weight | 7.600000 |
| Frequency Response | 55 - 125 Hz @ ±3 dB |
| Frequency Range | 42 - 350 Hz @ -10 dB |
| Power Capacity | Continuous Program Power: 300 W, 100 hours Continuous Pink Noise: 150 W, 100 hours |
| Maximum SPL | Average: 107 dB @ 3.3' (1 m) Peak: 113 dB |
| Impedance | 8 Ohms (Nominal) 6.4 Ohms (Minimum) |
| Sensitivity (SPL / 1 W @ 1 m) | 88 dB |
| Enclosure | High impact polystyrene Driver: Polypropylene-coated paper cone with butyl rubber surround Voice-coil: High-temperature copper, vented fiberglass resin voice coil former |
| Dimensions | To top of cabinet: 13.1 x 13.5" (333 x 344 mm) To top of suspension bracket: 13.1 x 14.5" (333 x 369 mm) |
| Manufacturer | JBL |
| Color | Different Colors |
| Country of Origin | United States |
Product Datasheet
