JBL CSA 1120Z Audio Power 1 x 120W DriveCore Amplifier
Quick Overview
- 120W into 4 or 8 Ohms
- Switch-Mode Universal Power Supply
- DriveCore-Based Amplification
- Supports 70V and 100V Installations
- RJ45 Connectors for JBL CSR-V Controls
- GreenEdge Environmental Initiative
PRODUCT OVERVIEW

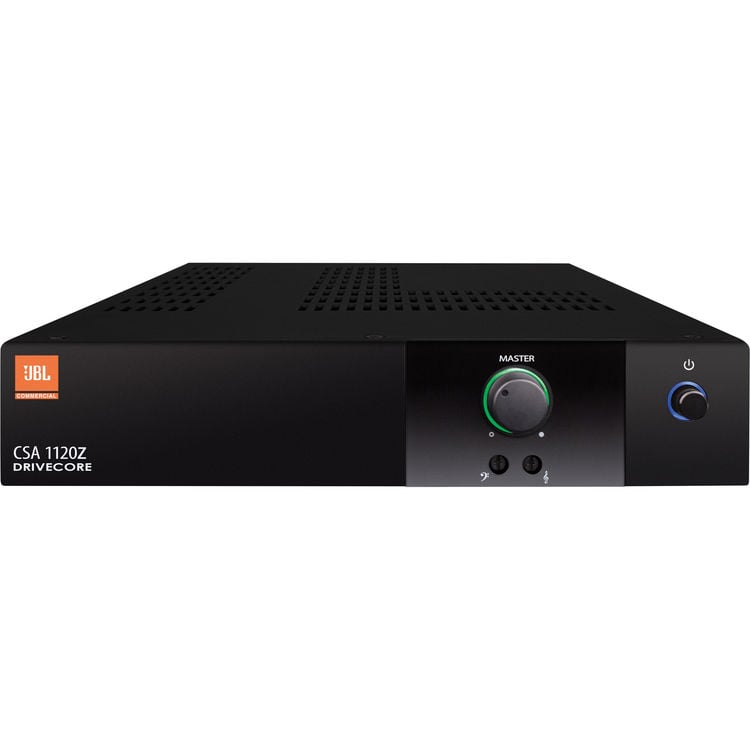

JBL CSA 1120Z Audio Amplifier (1x 120W)
The JBL CSA 1120Z Audio Amplifier (1x 120W) provides a compact and powerful amplification solution for installed applications. The unit utilizes a universal switch-mode power supply and Crown's DriveCore technology to deliver reliable and efficient sound amplification.

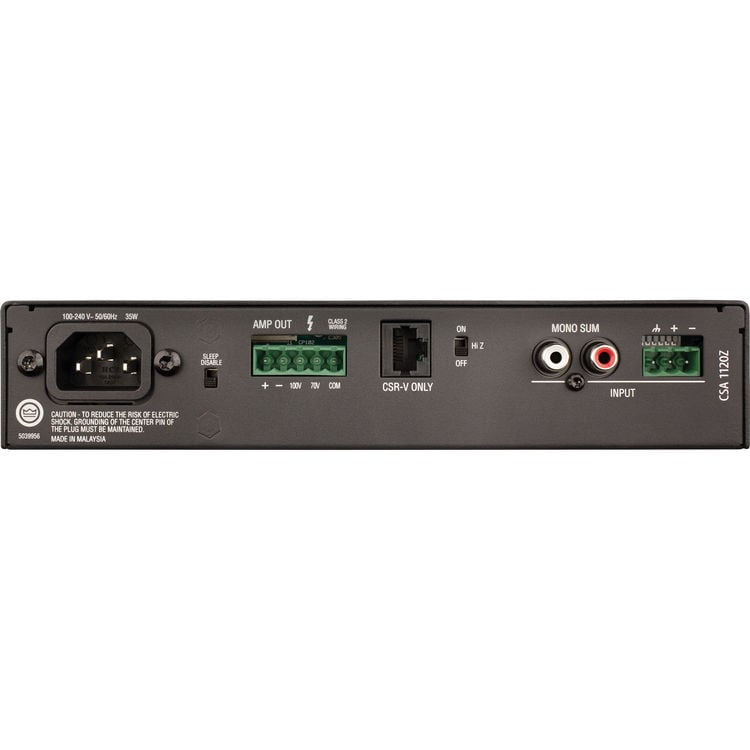

The unit supports both 70 and 100V installations out of the box. It includes 1 x RJ45 connector for use with the company's CSR-V in-wall volume controls. Inputs are provided by mono-sum RCA connectors and Euroblock. Outputs are provided by Euroblock connectors. Illuminated knobs provide visual feedback, and the universal power supply allows the amplifier to accept AC voltages from 100 to 240 VAC, 50/60 Hz. The amp also fulfills HARMAN's GreenEdge environmental initiative.
|
|
|
Opportunities:
- 1 or 2 output channels with a power of 40/80/120 W per channel.
- Built-in support 70/100 V
- 1U fanless
- Disabling Sleep
- Energy-efficient
- Volume control backlight
- Support for JBL CSR-V wall volume control via Ethernet cable
- Universal power supply
- Energy Star® Certified
| Product Name | JBL CSA 1120Z Audio Power 1 x 120W DriveCore Amplifier |
|---|---|
| Weight | 3.090000 |
| Frequency Response | 20 Hz to 20 kHz ±0.5 dB (8 Ohms) |
| Power Capacity | 4 Ohms / 8 Ohms: 120 W (1 kHz, 0.5% THD) |
| Impedance | 4 Ohms (Minimum) 70 / 100 V |
| Mounting | Top bracket, bottom bracket |
| Dimensions | 8.6 x 11.9 x 1.7" / 218.5 x 303.4 x 43.3 mm |
| Manufacturer | JBL |
| Color | Black |
| Country of Origin | United States |
