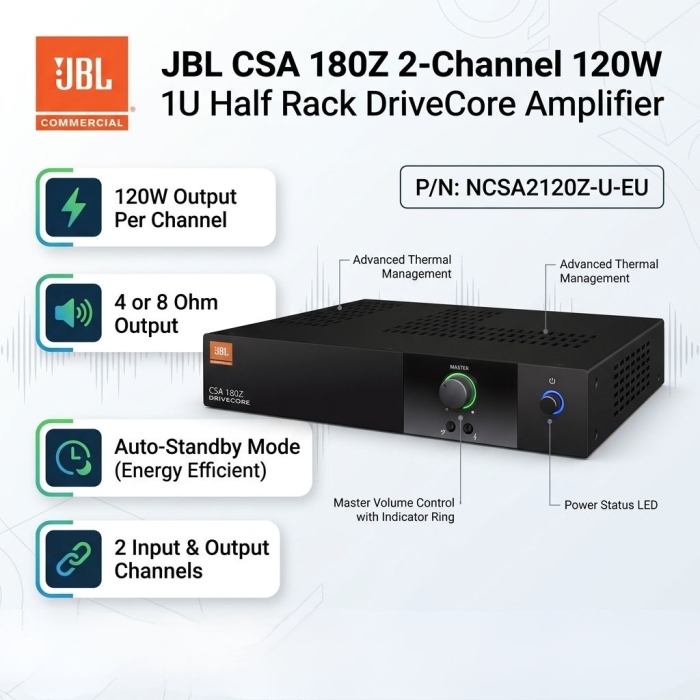

JBL CSA 180Z 2-Channel 120W 1U Half Rack Powerful DriveCore Amplifier
Quick Overview
- 120W Output Per Channel
- 4 or 8 Ohm Output
- Auto-Standby Mode
- 2 Input & Output Channels
- 2x RCA Inputs Per Channel
- 1x 3-Pin Euroblock Inputs Per Channel
PRODUCT OVERVIEW
JBL CSA 2120Z Audio Amplifier (2x 120W)
The JBL CSA 2120Z Audio Amplifier (2x 120W) provides a compact and powerful amplification solution for installed applications. The unit utilizes a universal switch-mode power supply and Crown's DriveCore technology to deliver reliable and efficient sound amplification.
|
|
|

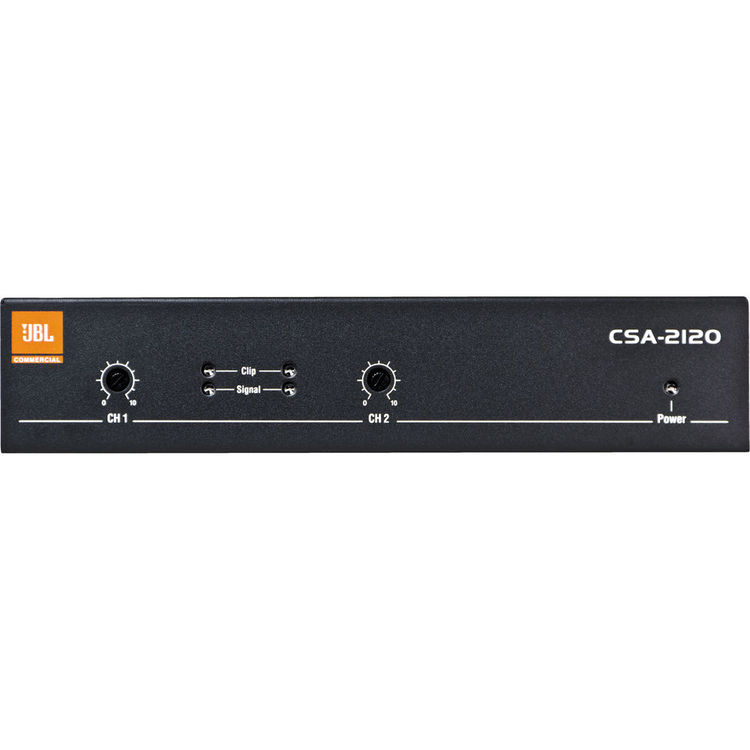

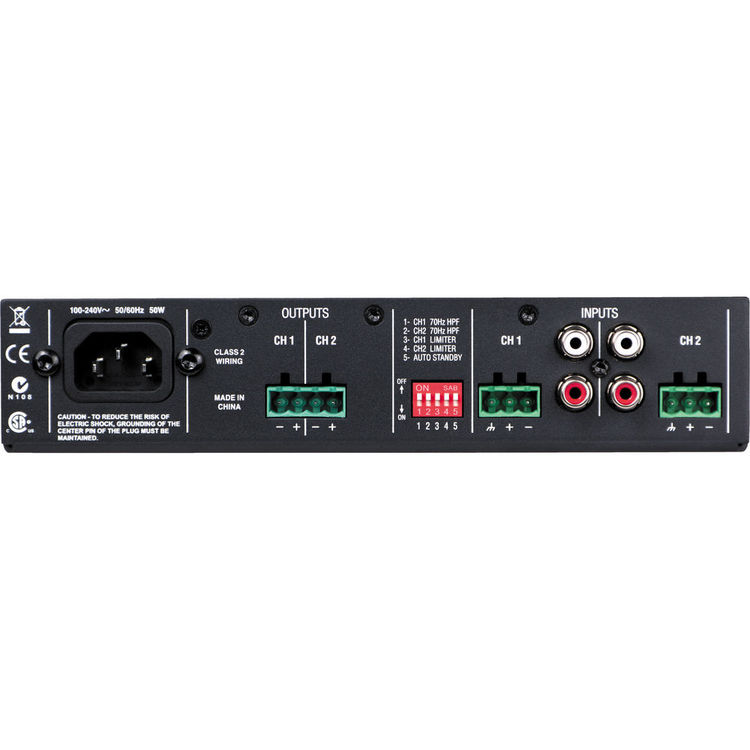

The unit supports both 70 and 100V installations out of the box. It includes 2 x RJ45 connectors for use with the company's CSR-V in-wall volume controls. Inputs are provided by mono sum RCA connectors and Euroblock. Outputs are provided by Euroblock connectors. Illuminated knobs provide visual feedback, and the universal power supply allows the amplifier to accept AC voltages from 100 to 240 VAC, 50/60 Hz. The amp also fulfills HARMAN's GreenEdge environmental initiative.
FEATURES
- 2 x 120W at 4/8Ohms
- Plenum Rated (UL2043)
- Compact size and lightweight
- Convection Cooled
- Auto-standby mode for energy savings
- Summing RCA inputs for each channel
| Product Name | JBL CSA 180Z 2-Channel 120W 1U Half Rack Powerful DriveCore Amplifier |
|---|---|
| Weight | 1.300000 |
| Frequency Response | 20 Hz to 20 kHz ±0.5 dB (8 Ohms) |
| Power Capacity | 120 W (1 kHz, 0.5% THD) |
| Impedance | 4 Ohms (Minimum) 70 / 100 V |
| Dimensions | 8.6 x 11.9 x 1.7" / 218.5 x 303.4 x 43.3 mm |
| Manufacturer | JBL |
| Color | Black |
| Country of Origin | United States |
