JBL CSA 2120R 2-Channel Installed 2 x 120W Audio Power Amplifier
Quick Overview
- 120W Output Per Channel
- 4 or 8 Ohm Output
- Auto-Standby Mode
- 2 Input & Output Channels
- 2x RCA Inputs Per Channel
- 1x 3-Pin Euroblock Inputs Per Channel
PRODUCT OVERVIEW
JBL CSA2120 2-Channel Installed Sound Power Amplifier

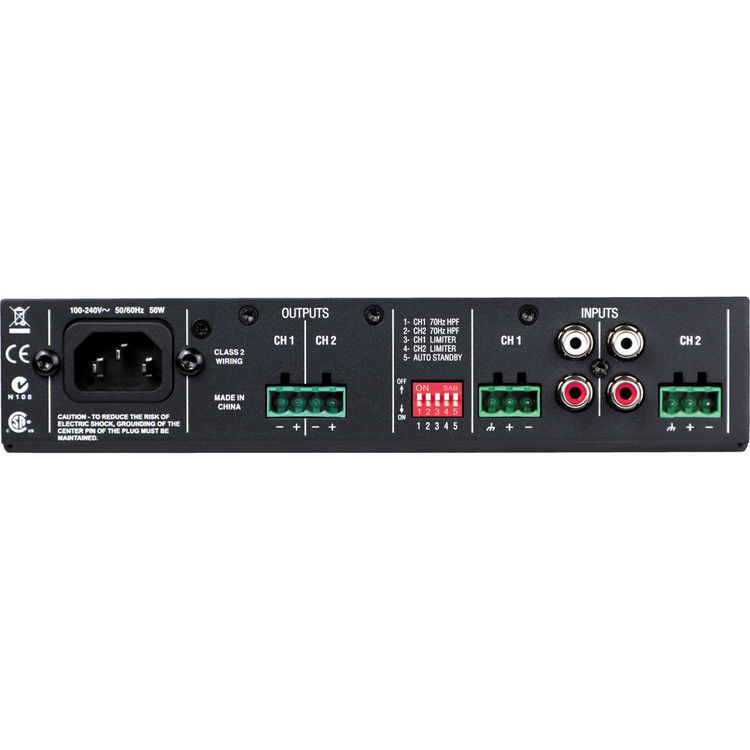

The CSA2120 2-Channel Installed Sound Power Amplifier from JBL features 120 watts of output per channel at 4 or 8 ohms and is designed for installed sound applications. Each of its two input channels has dual summing RCA inputs and a 3-pin detachable Euroblock input. Both channels also feature a selectable limiter and high-pass filter at 70Hz. The CSA2120 has a 4-pin Euroblock output connector for powering dual loudspeakers. The auto-standby mode disables the amplifier pulse width modulation generator when there is no signal detected.
|
|
|

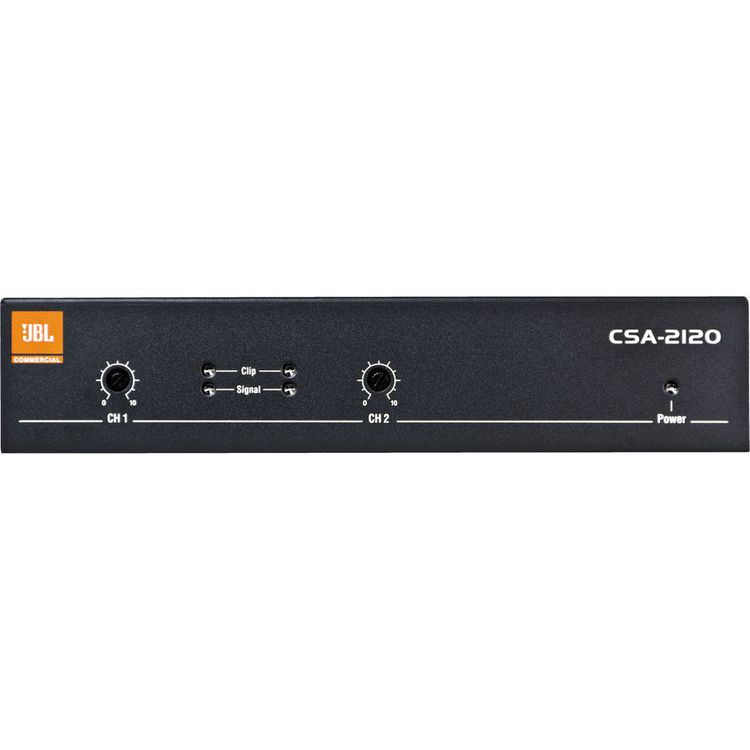

The CSA2120 has both overheat and low-voltage protection and can be rackmounted with the included rackmount kit. It has front-panel channel volume controls as well as clip, signal, and power LED indicators. The unit is powered by a switch-mode universal power supply.
FEATURES
- 2 x 120W at 4/8 ohms
- Plenum Rated (UL2043)
- Compact size and lightweight
- Convection-cooled
- Auto-standby mode for energy savings
- Summing RCA inputs for each channel
| Product Name | JBL CSA 2120R 2-Channel Installed 2 x 120W Audio Power Amplifier |
|---|---|
| Weight | 1.310000 |
| Frequency Response | 20 Hz to 20 kHz ±0.5 dB (8 Ohms) |
| Power Capacity | 120 W (1 kHz, 0.5% THD) |
| Impedance | 4 Ohms (Minimum) 70 / 100 V |
| Dimensions | 8.6 x 11.9 x 1.7" / 218.5 x 303.4 x 43.3 mm |
| Manufacturer | JBL |
| Color | Black |
| Country of Origin | United States |
