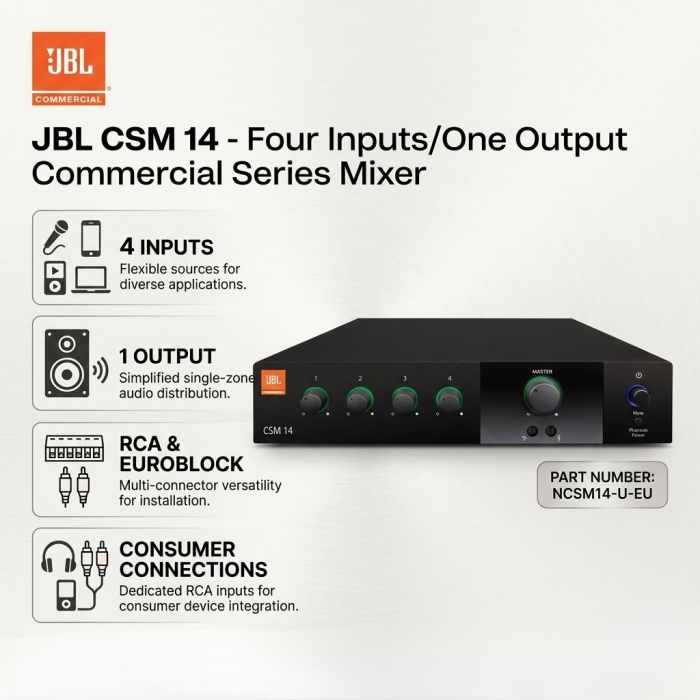

JBL CSM 14 - Four Inputs/One Output Commercial Series Mixer
The CSM 14 - Four Inputs/One Output Commercial Series Mixer by JBL is backed by the combined technological prowess of multiple Harman brands and can be easily configured for a wide range of applications such as providing background music, security, and paging in schools, hospitals, restaurants, and fitness facilities.
PRODUCT OVERVIEW

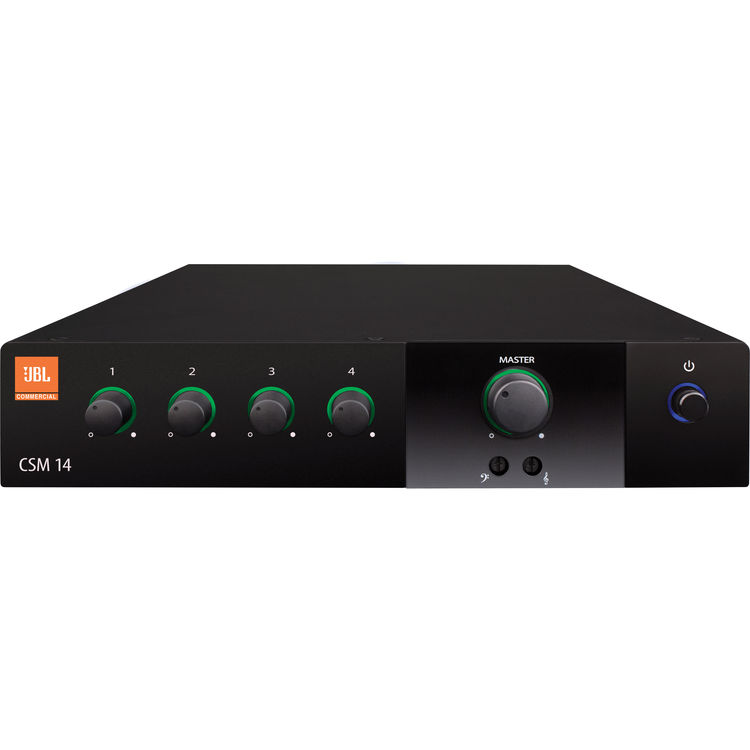

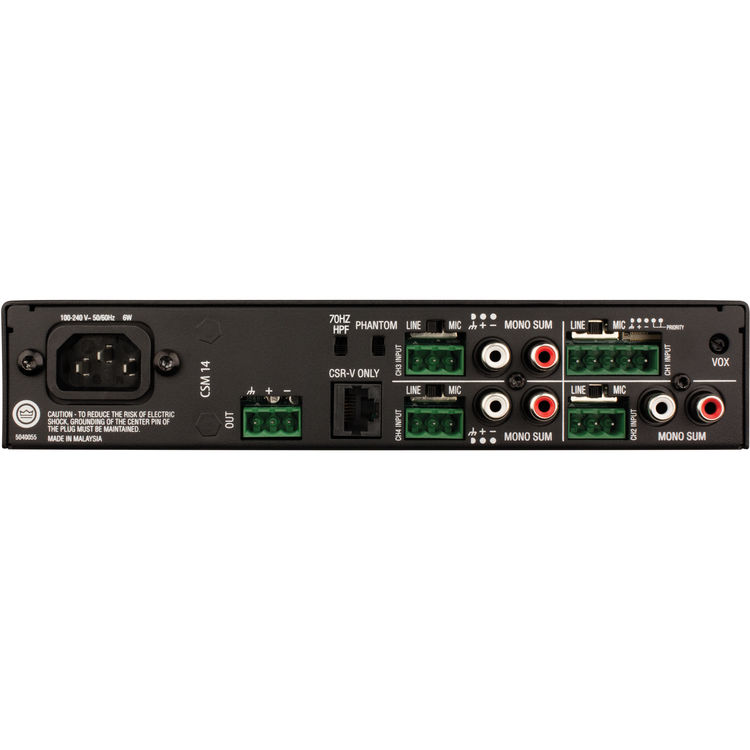

The CSM 14 - Four Inputs/One Output Commercial Series Mixer by JBL is backed by the combined technological prowess of multiple Harman brands and can be easily configured for a wide range of applications such as providing background music, security, and paging in schools, hospitals, restaurants, and fitness facilities. For I/O, the mixer features Euroblock type mic/line input and output connectors, as well as unbalanced RCA inputs. The chassis features illuminated rings that make them easier to see and use for the dedicated volume, bass, and treble controls. The back of the mixer features a +27V phantom power switch as well as a 70 Hz HPF switch.
- 4 or 8 inputs with 1 or 2 channel outputs
- Fanless, space-saving 1U design
- Configurable output routing (2 channel models only)
- Independent bass/treble controls
- Euro-block type mic/line input and output connectors, and unbalanced RCA inputs for consumer connection
- Supports JBL CSR-V wall controller via Ethernet cable
- Priority muting, VOX ducking, and phantom power for all models
| Product Name | JBL CSM 14 - Four Inputs/One Output Commercial Series Mixer |
|---|---|
| Weight | 1.90 Kg |
| Sensitivity (SPL / 1 W @ 1 m) | Mic: 3 mV RMS Line: 300 mV RMS RCA: 300 mV RMS |
| Impedance | Mic: 400 ohms Line: 20 kOhms RCA: 50 kOhms |
| Frequency Response | 20 to 20,000 Hz ±1 dB |
| Max. Power Consumption | 10 W, Power Required: 100 to 240 V thermal fuse in external transformer |
| Dimensions | 1.7 x 8.6 x 11.9" (43.3 x 218.5 x 303.4 mm) |
| Manufacturer | JBL |
| Color | Black |
| Country of Origin | United States |
