JBL CSMA 1120 Commercial Series 4 input - 1 x 120W DriveCore Mixer Amplifier
QUick Overview
- or Commercial and Industrial Use
- 120W into 8- or 4-Ohm Loads
- 15W per Channel
- 4 Input Channels, 1 Output Channel
- Usable with 70 & 100V Systems
- Mic/Line & RCA Inputs
PRODUCT OVERVIEW
JBL CSMA 1120 Commercial Series Mixer/Amplifier

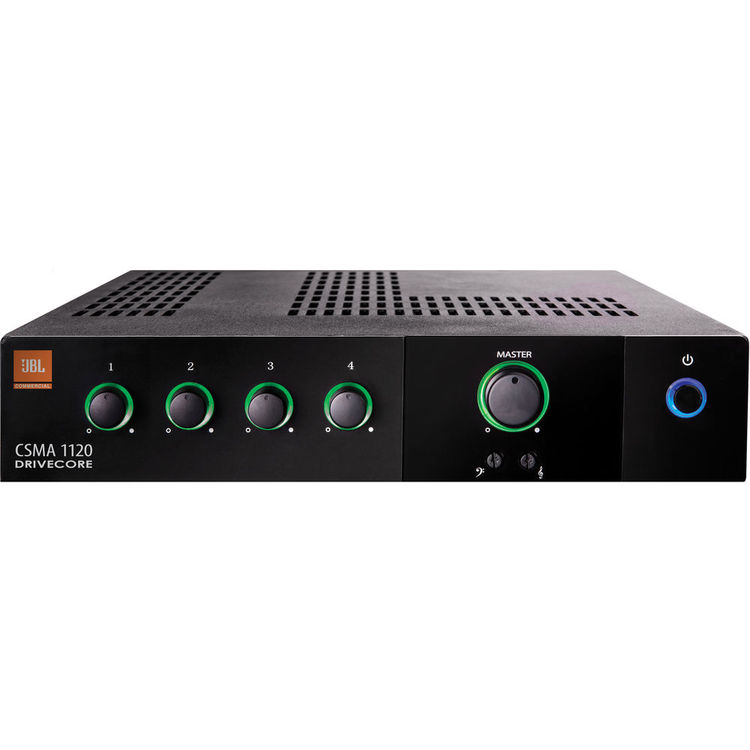

Designed for commercial and industrial use, the CSMA 1120 Commercial Series Mixer/Amplifier from JBL is a mixer/amplifier with four mixer-channel inputs and one output channel. It's capable of reaching 120W of peak power with 15W per channel. The unit's front panel sports volume controls for each channel, as well as a master volume adjustment knob, bass, and treble controls, and a power switch. The volume controls are illuminated so they can be seen and operated in darkened environments.
Channel Modes
Four inputs into one output channel with 120W of power.
Controls
- Independent Bass and Treble control for each output channel.
- Input level and output volume control.
|
|
|
Auxiliary Output
An auxiliary output that you may connect to additional amplifiers is available. The audio signal is the mix of the input channels. Note that the master volume control and tone controls will have no effect on the aux output signal.
Manufacturing
- Crown's DriveCore technology
- HARMAN's GreenEdge environmental standards
Additional Features
- Suitable for commercial and industrial use
- Ideal for commercial and industrial

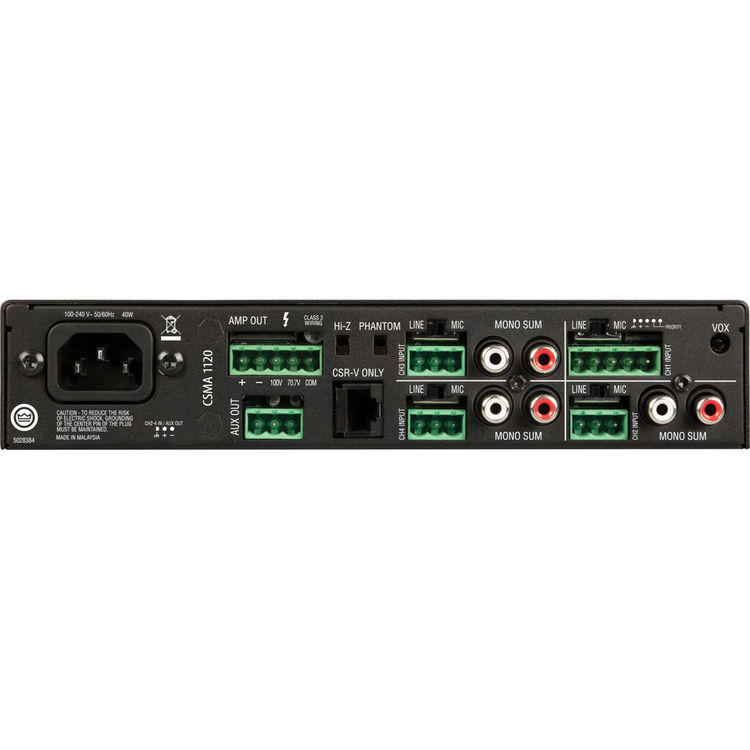

- Euro-block type mic/line input connectors and output connectors
- Configurable output routing
| Product Name | JBL CSMA 1120 Commercial Series 4 input - 1 x 120W DriveCore Mixer Amplifier |
|---|---|
| Weight | 3.400000 |
| Frequency Response | 4/8 Ohms Output: 20 Hz - 20 kHz, ±2 dB 70 V/100 V Outputs: 80 Hz - 15 kHz ±2 dB Line Out: 20 Hz - 20 kHz, ±1 dB |
| Dimensions | 8.6 x 11.9 x 1.7" / 21.9 x 30.3 x 4.3 cm |
| Manufacturer | JBL |
| Color | Black |
| Country of Origin | United States |
Product Datasheet
