JBL CSMA 240 Commercial Series 8 input - 2 x 40W 1U Full Rack DriveCore Mixer Amplifier
Quick Overview
- 40W into 8 or 4 Ohm Loads
- 5W Per Channel
- 8 Input Channels, 2 Output Channel
- Usable with 70 & 100V Systems

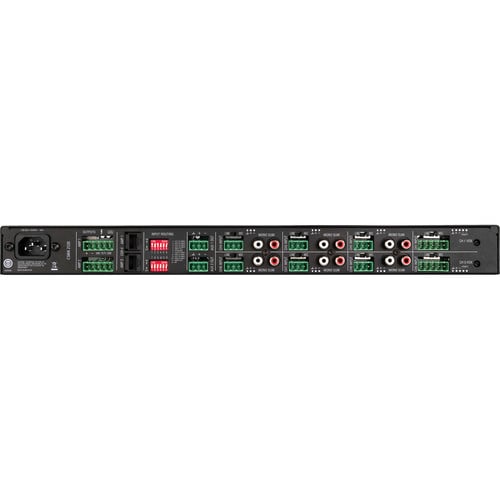

- Euroblock Mic/Line & RCA Inputs
PRODUCT OVERVIEW
JBL CSMA 240 Commercial Series Mixer/Amplifier

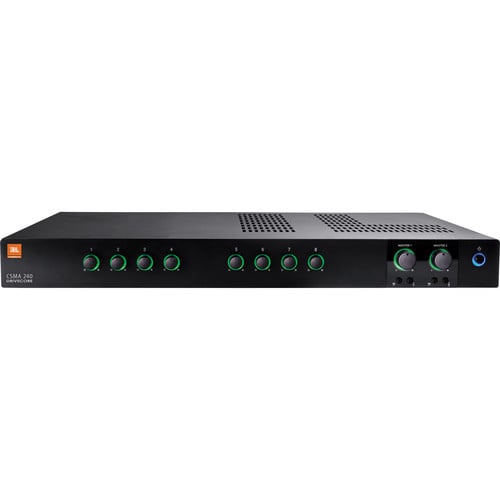

Designed for commercial and industrial use, the CSMA 240 Commercial Series Mixer/Amplifier from JBL is a mixer/amplifier with eight mixer-channel inputs and two output channels. It's capable of reaching 40W of peak power with 5W per channel. The unit's front panel sports volume controls for each channel, as well as two master volume adjustment knobs, two sets of bass and treble controls, and a power switch. The volume controls are illuminated so they can be seen and operated in darkened environments.
Channel Modes
8 inputs with 2 outputs of 120W of power.
Controls
Independent bass and treble control for each output channel.
Input level and output volume control.
|
|
|
AUX output
An auxiliary output that you may connect to additional amplifiers is available. The audio signal is the mix of the input channels. Note that the master volume control and tone controls will have no effect on the aux output signal.
Manufacturing
Crown's DriveCore technology
HARMAN's GreenEdge environmental standards
Certifications and Approvals
Lead-free RoHS standards, utilizing recycled metals and using an energy-saving powder-coat process
| Product Name | JBL CSMA 240 Commercial Series 8 input - 2 x 40W 1U Full Rack DriveCore Mixer Amplifier |
|---|---|
| Weight | 4.800000 |
| Frequency Response | 4/8 Ohms Output: 20 Hz - 20 kHz, ±2 dB 70 V/100 V Outputs: 80 Hz - 15 kHz ±2 dB Line Out: 20 Hz - 20 kHz, ±1 dB |
| Dimensions | 17.2 x 11.9 x 1.7" / 436.9 x 302.3 x 43.2 mm |
| Manufacturer | JBL |
| Color | Black |
| Country of Origin | United States |
