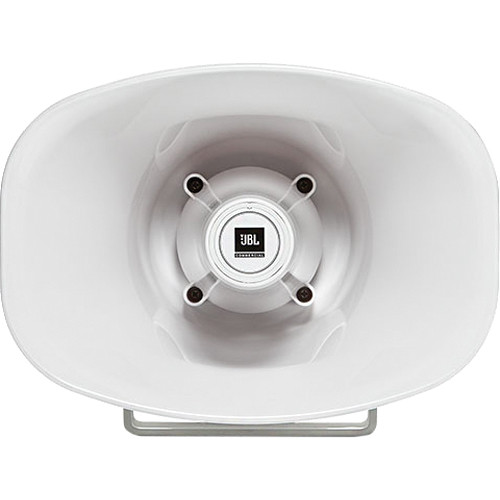

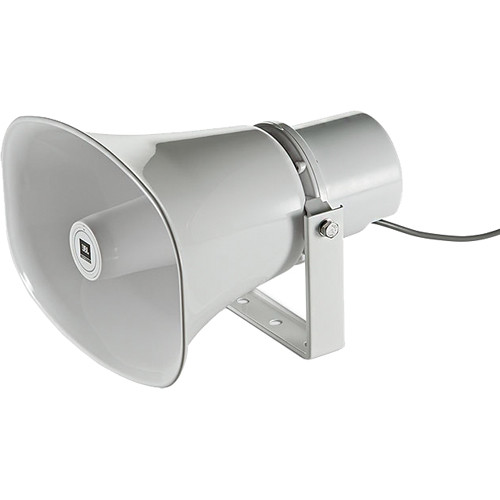

JBL CSS-H30 Commercial Solutions Series 30W Paging Horn - White (Each)
Quick Overview
- Voice Clarity for Announcements & Paging
- Focused 50° H x 70° V Coverage Pattern
- IP65-Rated for Weather Resistance
- 30W Multi-Tap Transformer
- 8-Ohm Bypass Setting
- High Sensitivity and Maximum SPL
PRODUCT OVERVIEW
30 Watt Paging Horn
The Commercial Solutions Series CSS-H30 Paging Horn provides excellent voice range clarity for public address systems, announcement/paging, intercom, security, alarm, and industrial applications. Designed for demanding environmental conditions, the CSS-H30 is highly weather-resistant (IP-65 rated) so it can be used in either indoor or outdoor applications. The focused coverage pattern allows the horn to project the sound a farther distance than is the case with wider-coverage paging horns. Typical applications for this product are public access areas, warehouses, factories, schools, recreational facilities, commercial buildings, distribution centers, civic centers, and other commercial sound and protective signaling systems.
|
|
|
Features
- Excellent voice range clarity for announcements and paging.
- High sensitivity delivers high sound levels with minimal power amplification.
- Focused 50° horizontal by 70° vertical coverage for long-throw capability.
- Phenolic diaphragm driver for outdoor durability and high reliability.
- UL-registered 30-watt multi-tap transformer, with an 8-ohm direct bypass.
- Built-in high-pass filter enhances reliability by protecting against low-frequency damage.
- Highly weather-resistant, with a stainless steel bracket and hardware.
Applications
- Public Access Areas
- Warehouses
- Factories
- Schools
- Recreational Facilities
- Commercial Buildings
- Distribution Centers
- Civic Centers
- Other Commercial Sound and Protective Signaling Systems
| Product Name | JBL CSS-H30 Commercial Solutions Series 30W Paging Horn - White (Each) |
|---|---|
| Weight | 2.000000 |
| Frequency Response | 380 Hz – 6 kHz |
| Frequency Range | 380 Hz – 6 kHz |
| Power Capacity | 30 W (120 W peak), 100 hours |
| Maximum SPL | 3.3' (1.0 m): 123 dB continuous averaged (129 dB peak), 1 kHz to 6 kHz 127 dB continuous average (133 dB peak), 1.4 kHz, 30 W input, 8 Ω setting |

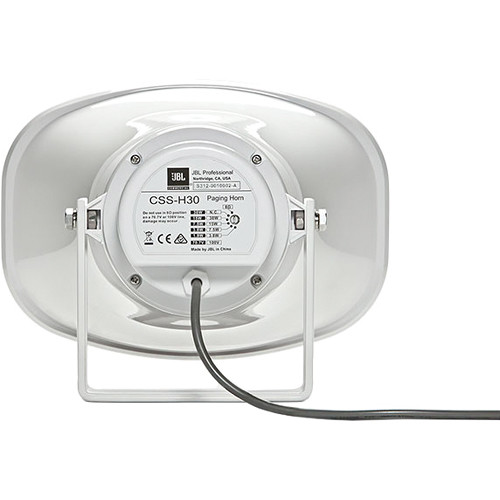

| Impedance | 30 W / 70 V, NC / 100 V Tap: 167 Ω 15 W / 70 V, 30 W / 100 V Tap: 333 Ω 7.5 W / 70 V, 15 W / 100 V Tap: 667 Ω 3.8 W / 70 V, 7.5 W / 100 V Tap: 1333 Ω 1.9 W / 100 V, 3.8 W / 100 V Tap: 2666 Ω 8 Ω at 8 Ω direct setting |
| Sensitivity (SPL / 1 W @ 1 m) | 108 dB, ave. 1 kHz – 6 kHz112 dB at 1.4 kHz |
| Mounting | Stainless steel powder-coated U-bracket (yoke) with 3 x 0.41" (1.04 cm) diameter mounting holes; stainless steel exterior hardware |
| Dimensions | Horn Only: 8.2 x 11.2 x 11.3" (20.6 x 28.5 x 28.7 cm) With Mounting Bracket: 8.9 x 11.2 x 11.3" (22.4 x 28.5 x 28.7 cm) (depth excludes cable exit) |
| Manufacturer | JBL |
| Color | White |
| Country of Origin | United States |
Product Datasheet
