JBL VMA260 Commercial Series 60W Bluetooth-Enabled Mixer/Amplifier
The JBL VMA260 is a Commercial Series Bluetooth-enabled mixer/amplifier designed to provide flexible multi-source mixing and amplification for installation in restaurants, educational institutions, fitness centers, and retail stores. It features an 8-in/2-out mixer and 60W of output power. It can be installed in a standard 19” equipment rack with the supplied rackmount kit or set on a surface such as a desk or a ledge.
PRODUCT OVERVIEW
The JBL VMA260 is a Commercial Series Bluetooth-enabled mixer/amplifier designed to provide flexible multi-source mixing and amplification for installation in restaurants, educational institutions, fitness centers, and retail stores. It features an 8-in/2-out mixer and 60W of output power. It can be installed in a standard 19” equipment rack with the supplied rackmount kit or set on a surface such as a desk or a ledge.
- Suitable for commercial and industrial use
- Euroblock, RCA, and 1/4" TRS input connectors
- Independent bass and treble controls for each output channel
- Voice-activated ducking during announcements
- Remote volume control capability using optional JBL CSR-V module and Cat5e cable with RJ45 connectors
- Priority muting using PTT switch closure
- Configurable output routing

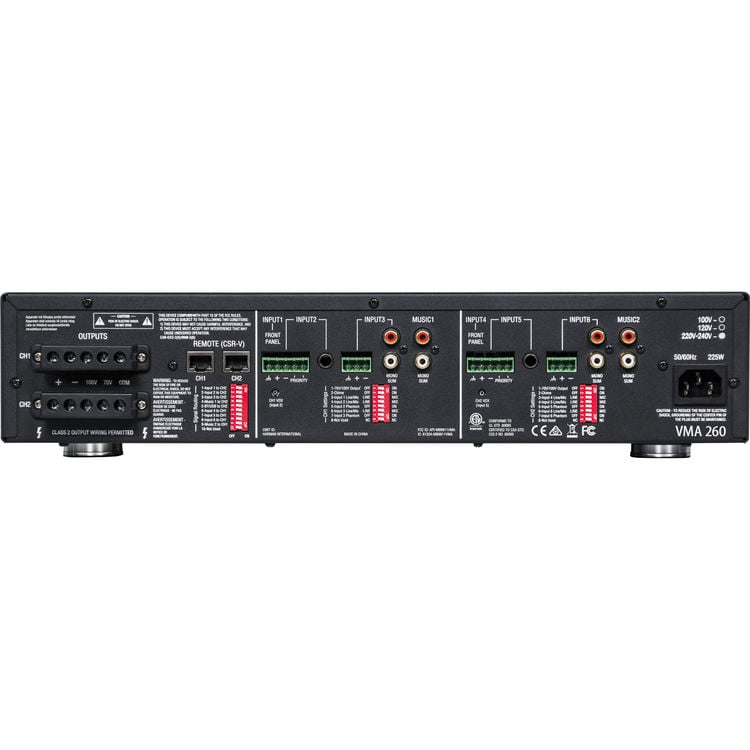

- Barrier block output connections to drive 8 Ohms, 70V or 100V speaker systems
- Media player capable of playing MP3 files from a Bluetooth device or USB drive
| Product Name | JBL VMA260 Commercial Series 60W Bluetooth-Enabled Mixer/Amplifier |
|---|---|
| Weight | 13.29 Kg |
| Sensitivity (SPL / 1 W @ 1 m) | Mic Input: 5.5 mVrms Line Input: 1.3 Vrms RCA Input (Stereo In): 130 mVrms |
| Impedance | Nominal Mic: 400 Ohms Line: 20 kOhms (balanced) RCA: 50 kOhms |
| Frequency Response | 4/8 Ohms Output: 20 Hz to 20 kHz, ±2 dB 70 V/100 V Outputs: 80 Hz to 15 kHz ±3 dB |
| Max. Power Consumption | 60 W (per channel into 4 Ohms or 8 Ohms, 1 kHz, ≤0.5% THD) |
| Dimensions | 17 x 16.3 x 3.5" / 432 x 415 x 88 mm |
| Manufacturer | JBL |
| Color | Black |
| Country of Origin | United States |
