PRODUCT OVERVIEW

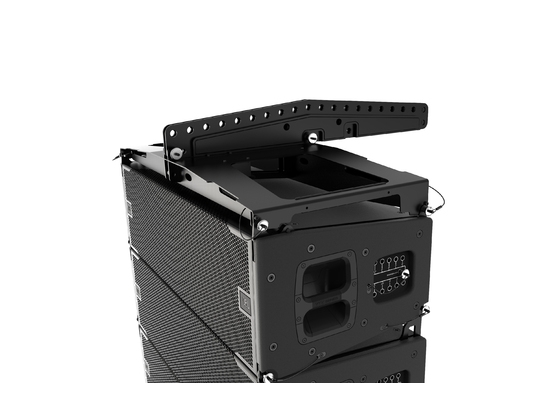

The VTX A12 AF is a lightweight Array Frame used for suspending VTX A12 series enclosures.

The frame was designed to operate in either single-point, front-to-back or side-by-side suspension modes using the VTX A12 AF EB Extension Bar. The extension bar is compatible with 5/8” shackles and can be stored above the main frame during transportation. The extension bar can extend to the front or the rear of the frame to accommodate both up-tilt and down-tilt aiming options. Three connection points are available for attaching the Extension Bar to the main frame, allowing for precise control of shackle positioning for single-point applications. Support for 3rd party inclinometers is available using the included laser attachment bracket. One VTX A12 AF EB Extension Bar is included and additional Extension Bars can be purchased to facilitate side-by-side suspension.

Highlights:

• Support for up to 24 x VTX A12 enclosures
• Single, front-to-back or side-by-side pick point options
• 0.5-degree pick point resolution
• Built-in storage position for Extension Bar
• Includes 1 x VTX A12 AF EB Extension Bar
• Support for 3rd party laser inclinometers
• Compatible shackle size: 5/8”

Included:

• 1 x VTX A12 AF
• 1 x Extension Bar
• 1 x Laser Bracket
• 3 x 5/8” CM Shackles
