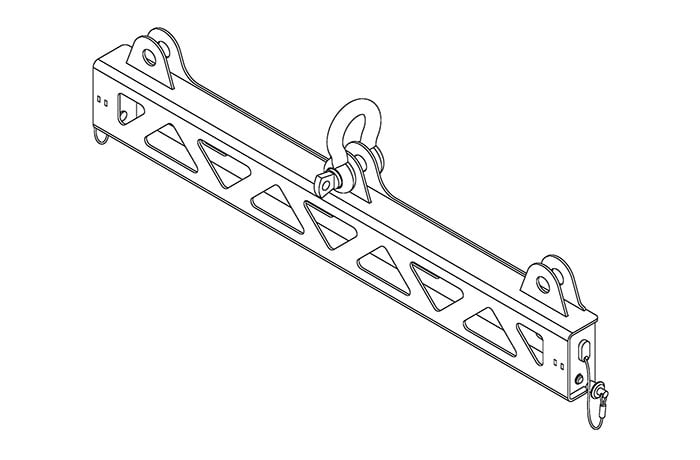

JBL VTX A8 SB Suspension Bar
The VTX A8 SB accessory is a lightweight suspension bar that can be used as an array frame or to implement pull-back of a VTX A8 or B18 array.
PRODUCT OVERVIEW
The VTX A8 SB accessory is a lightweight suspension bar that can be used as an array frame or to implement pull-back of a VTX A8 or B18 array. When used for pull-back, the VTX A8 SB can be attached to the bottom cabinet of an array and connected to a rear suspension point to allow for extra down-tilt, otherwise not possible using the VTX A8 AF alone.
The VTX A8 SB can also attach to the top cabinet of an array and be used as a compact array frame. In this mode, the suspension bar connects to the top cabinet’s rear rigging points and the down-tilt angle is controlled by the number of cabinets and array geometry. JBL’s Line Array Calculator software application is used to calculate the down-tilt angle.
Highlights:
- Versatile suspension bar accessory
- Compatible with VTX A8 and VTX B18
- Used for suspension or pull-back applications
- Support for up to 24 x A8 or 16 x B18 enclosures
- Lightweight design
- Shackle Size: 5/8”
Included:
- 1 x VTX A8 SB Suspension Bar
- 1 x 5/8” 4.5T Shackle
| Product Name | JBL VTX A8 SB Suspension Bar |
|---|---|
| Weight | 0.453592 |
| Manufacturer | JBL |
| Color | Black |
| Country of Origin | United States |
