JBL VTX V20 PB Pull Back Accessory

PRODUCT OVERVIEW

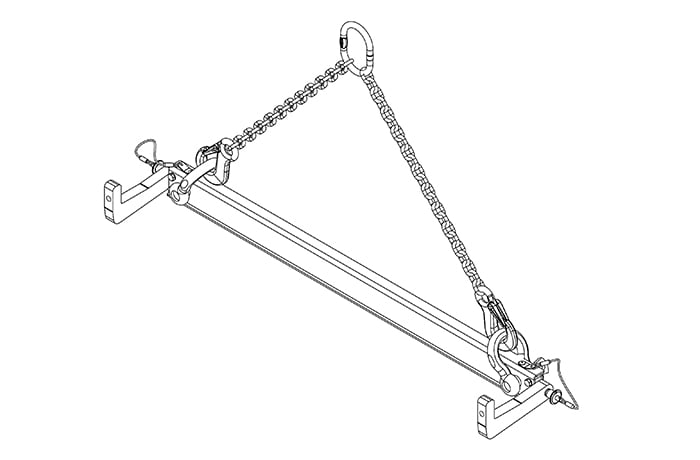

Pull Back accessory for attachment to bottom V20 enclosure to facilitate compression suspension of VTX V20 arrays.

Compression can be implemented using a separate chain motor and suspension point (Rear Motor Pullback) or by using an optional VTX-V20-LH chain lever hoist or chain motor that is attached to the VTX-V20-AF-EB extension bar (Extension Bar Pullback).

Included:

• Central pullback bar including two captive Quick Release Pins (QRPs) on lanyards
• Two left/right adapter brackets for connection to the bottom VTX V20 cabinet and the central spreader bar
• 2 x 5/8” shackles for attaching spreader bar to chain bridle
• 1 x 18” dual leg chain bridle with locking safety hooks and upper master link for attachment of compression device
