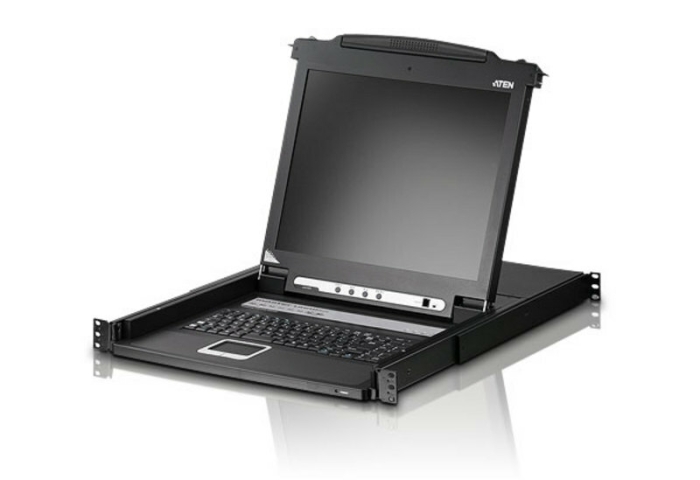

KVM CL1008M - 8-Port 17-inch LCD PS/2 Switch
Art.nr: CL1008M
EAN Code: 4710423775251
The CL1008 LCD KVM Switch series are control units that allow access to multiple computers from a single keyboard, video, and mouse (KVM), console. A single CL1008 can control up to 8 computers. As many as 7 additional KVM switches can be daisy-chained to the CL1008 so that up to 128 computers can all be controlled from a single KVM console.
The CL1008 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17 LCD monitor, and touchpad in a 1U rack-mountable sliding housing.
Features
- KVM console with 17" LCD monitor in a sliding housing with top and bottom clearance for smooth operation in a 1U high system rack
- LCD module rotates up to 115 degrees for a more comfortable viewing angle
- Standard rack mount kit included - optional Easy Rack Mounting (single person installation) rack mount kit available (requires separate purchase)
- Daisy-chain up to 15 additional units - control up to 128 computers
- No software required - convenient computer selection via hotkeys and mouse driven intuitive on screen display (OSD) menus
- Auto Scan feature for monitoring user-selected computers
- Broadcast support - commands from the keyboard can be broadcast to all available computers on the installation
- Hot pluggable - add or remove computers without having to power down the switch
- Two level password security - only authorized users view and control the computers; up to four users plus an administrator with separate profiles for each
- Video settings of attached computers are automatically adjusted for optimal output to the LCD monitor
- Upgradable firmware
- Keyboard Language support: English(US); English(UK); German; German(Swiss); French; Spanish; Traditional Chinese; Japanese; Korean; Swedish; Italian; Russian; Hungarian
- Multiplatform support: Windows 2000/XP/Vista, Linux and FreeBSD
|
Rack Mounting Kit |
Depth |
|
2X-010G (Long/Optional) |
68cm - 105cm |
|
Short (Standard) |
42cm - 82cm |
|
Easy Installation |
Depth |
|
2X-012G (Long/Optional) |
68cm - 105cm |
|
2X-011G (Short/Optional) |
52cm - 70cm |
| Product Name | KVM CL1008M - 8-Port 17-inch LCD PS/2 Switch |
|---|---|
| Weight | 13.34 Kg |
| Manufacturer | Aten |
| Color | Black |
| Country of Origin | United Arab Emirates |
