Kyoritsu Model 2200R AC True RMS Digital Clamp Meter
Your Exclusive Offer Awaits! Call +971-4-3360300 or Email Today!

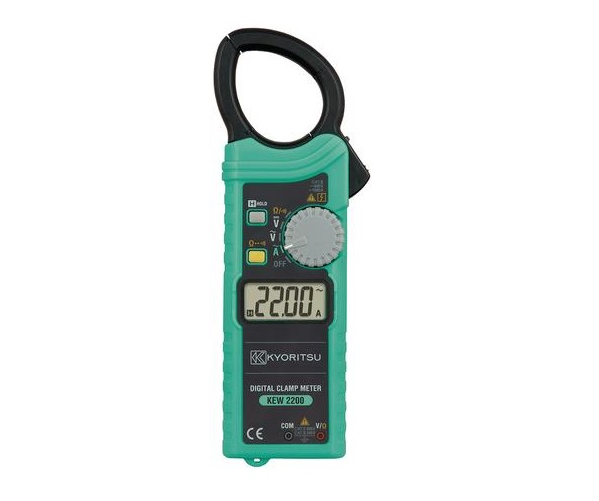

Kyoritsu Model 2200R AC Digital Clamp Meter with case.
Kyoritsu 2200R AC Digital Clamp Meter
• Ultra slim and lightweight Handy design
• Ø33mm Tear Drop Jaw easy to use in tight places
• 1000A AC Clamp Meter
• DMM function ACV, DCV, Ω, Continuity Buzzer
• Fuseless electronic protection on "Ω/Continuity Buzzer" up to 600V
• Safety Standard IEC 61010-1, 61010-2-032 CAT IV 300V / CAT III 600V
| Product Name | Kyoritsu Model 2200R AC True RMS Digital Clamp Meter |
|---|---|
| Weight | 0.099790 |
| DC V | 400.0mV/4.000/40.00/400.0/600V (Auto-ranging) ±1.0%rdg±3dgt (400mV range is excluded.) |
| AC V | 4.000/40.00/400.0/600V (Auto-ranging) ±1.8%rdg±7dgt (45 - 65Hz) ±2.3%rdg±8dgt (65 - 500Hz) |
| DC A | - |
| AC A | 40.00/400.0/1000A (Auto-ranging) ±1.5%rdg±5dgt (45 - 65Hz) ±2.0%rdg±5dgt (40 - 1kHz) |
| Ω | 400.0Ω/4.000/40.00/400.0kΩ/4.000/40.00MΩ (Auto-ranging) ±2.0%rdg±4dgt (0 - 400kΩ) ±4.0%rdg±4dgt (4MΩ) ±8.0%rdg±4dgt (40MΩ) |
| Capacitance | - |
| Frequency | - |
| Manufacturer | Kyoritsu |
| Color | Green |
