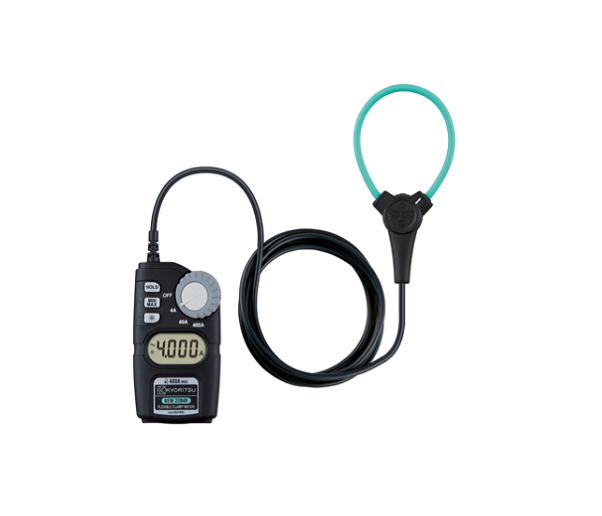

Kyoritsu Model 2204R AC Digital Clamp Meter
Your Exclusive Offer Awaits! Call +971-4-3360300 or Email Today!
Kyoritsu Model 2204R AC Digital Clamp Meter with case.
Kyoritsu 2204R AC Digital Clamp Meter
• Flexible and light weight clamp sensor
• MIN MAX function
• Backlight LCD display
• IEC 61010-1 (CAT IV 600V /CAT III 1000V)
• True RMS
| Product Name | Kyoritsu Model 2204R AC Digital Clamp Meter |
|---|---|
| Weight | 0.099790 |
| DC V | - |
| AC V | - |
| DC A | - |
| AC A | 4.000/40.00/400.0A. Accuracy= ±3%rdg±5dgt[45-500Hz] (At the center of the circle formed by the flexible sensor). Crest Factor (CF)= Full scale CF<1.6, half scale<3.2 Effective input crest values are √2 times of the max values of each range. |
| Ω | - |
| Capacitance | - |
| Frequency | - |
| Manufacturer | Kyoritsu |
| Color | Black |
